23. ASSEMBLY & KIT PARTS

Click Here for Microfiche Usage Tip

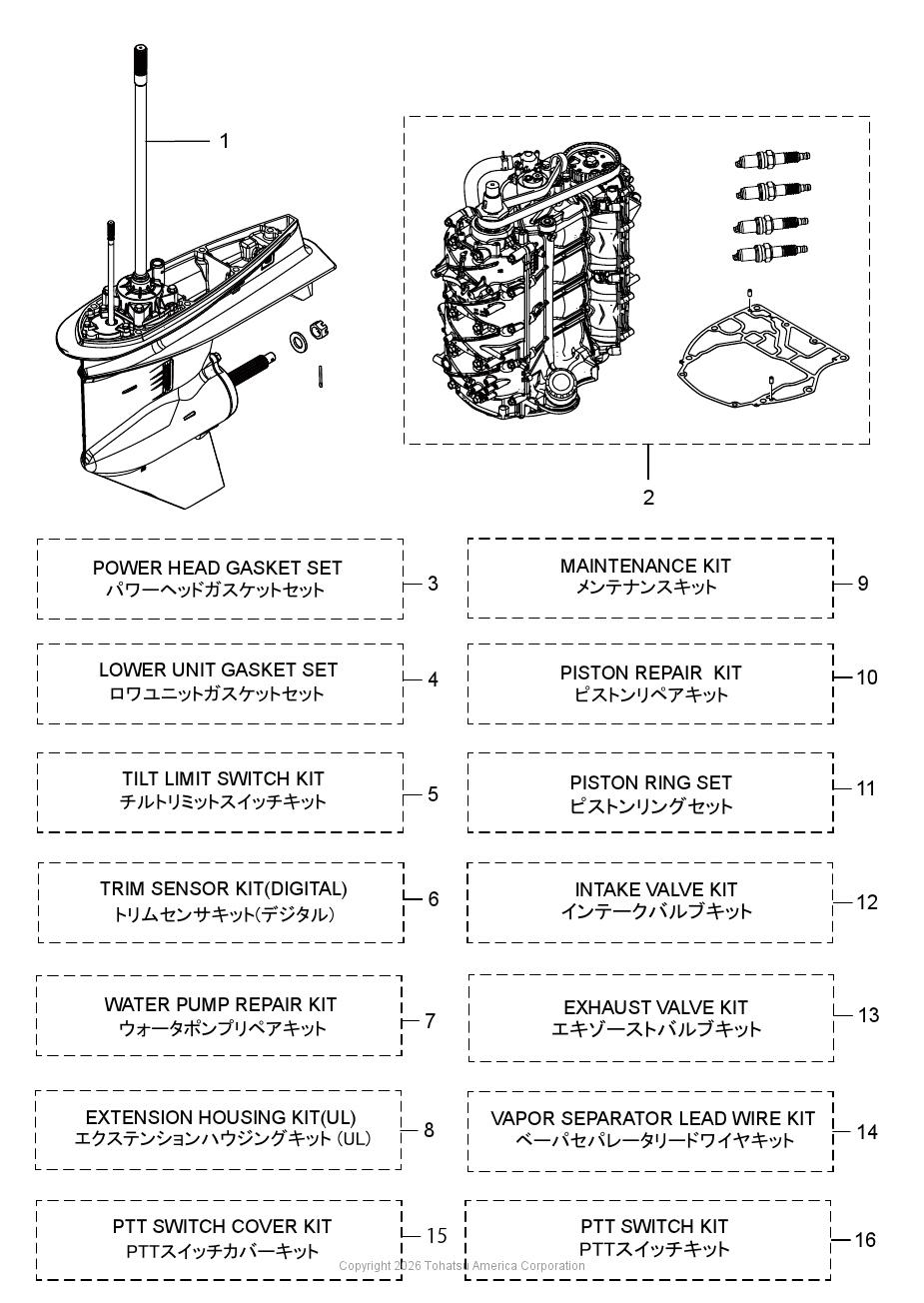

MFS75A ASSEMBLY & KIT PARTS(1) LOWER UNIT ASSY (L)(1) LOWER UNIT ASSY (UL)(2) ENGINE SHORT BLOCK KIT(3) POWER HEAD GASKET SET(3) O-RING 1.9-13(3) O-RING(3) O-RING ø2.4-18.8(3) O-RING 2-66.5(3) OIL SEAL 22-32-7(3) CRANKCASE HEAD GASKET(3) OIL SEAL 52-75-9(3) OIL SEAL 52-75-9(3) OIL SEAL 30-47-8(3) INTAKE VALVE STEM SEAL(3) EXHAUST VALVE STEM SEAL(3) O-RING 2.4-37.2(3) O-RING 2.4-21.8(3) CYLINDER HEAD GASKET(3) CYLINDER HEAD COVER GASKET(3) O-RING 3.1-24.4(3) O-RING 3.5-31.2(3) EXHAUST MANIFOLD GASKET(3) EXHAUST MANIFOLD GASKET(3) O-RING 3.1-74.4(3) O-RING 3.1-49.4(3) RECTIFIER COMPLETE GASKET(3) ENGINE BASEMENT GASKET(3) OILPAN GASKET(3) IDLE EXHAUST PORT GASKET(3) OILPAN PLATE GASKET(4) LOWER UNIT GASKET SET(4) GASKET 8.1-15-1(4) O-RING 3.1-94.4(4) OIL SEAL 30-50-7(4) OIL SEAL 10-20-7(4) O-RING 3.5-55.6(4) O-RING 3.5-55.6(4) GUIDE PLATE GASKET(4) O-RING 2.4-84.4(4) O-RING 2.4-35.2(4) OIL SEAL 22-40-8(5) TILT LIMIT SWITCH KIT(5) TILT LIMIT SWITCH PLATE ASSY(5) BOLT(5) TILT LIMIT SWITCH CAM ASSY(5) TILT LIMIT CAM HOLDER(5) SCREW(5) BAND(6) TRIM SENSOR KIT (DIGITAL)(6) TRIM SENSOR ASSY (DIGITAL)(6) TRIM SENSOR CAM ASSY(6) TILT LIMIT CAM HOLDER(6) SCREW(6) BOLT(6) BAND(7) WATER PUMP REPAIR KIT(7) WATER PUMP IMPELLER(7) KEY 28-5.7-4(7) PUMP CASE LINER(7) GUIDE PLATE GASKET(7) O-RING 2.4-84.4(7) WATER PUMP GUIDE PLATE(7) BOLT(7) WASHER(7) O-RING(8) EXTENSION HOUSING KIT (UL)(8) WATER PIPE (UL)(8) EXTENSION HOUSING(8) DOWEL PIN 6-12(8) CAM ROD (UL)(8) E-RING D=9(8) DRIVE SHAFT (UL)(8) TAPERED ROLLER BEARING 0506(8) STUD M10-165_P1.25(8) NUT 10-P1.25(8) WASHER(8) BOLT M10-170-P1.25(9) MAINTENANCE KIT(9) GASKET 8.1-15-1(9) KEY 28-5.7-4(9) ANODE(9) ANODE(9) ANODE(9) ANODE(9) ANODE(9) OIL FILTER(9) WATER PUMP IMPELLER(9) WATER PUMP GUIDE PLATE(9) GUIDE PLATE GASKET(9) WASHER 14.5-24-1(9) O-RING 1.9-13(9) PUMP CASE LINER(9) SPLIT PIN 3-25(9) SPARK PLUG (LKR6E)(9) O-RING 2.4-35.2(9) O-RING 2.4-84.4(10) PISTON REPAIR KIT(10) PISTON(STD)(10) PISTON PIN(10) PISTON PIN CLIP(11) PISTON RING SET(11) PISTON RING(11) PISTON RING(11) PISTON RING-OIL(12) INTAKE VALVE KIT(12) INTAKE VALVE ø32(12) RETAINER(12) COTTER(13) EXHAUST VALVE KIT(13) EXHAUST VALVE ø28(13) RETAINER(13) COTTER(14) VST LEAD WIRE KIT(15) PTT SWITCH COVER KIT(16) PTT SWITCH KIT

Displaying 1 to 115 (of 115 products)

Parts List

2026 :: 75 HP :: 4 Stroke Tohatsu MFS75A :: ASSEMBLY & KIT PARTS

Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed		 Order Quantity
(1) LOWER UNIT ASSY (L) 3SSQ873021 3SSQ873021 FOR TRANSOM "L" $2,352.51 1
(1) LOWER UNIT ASSY (UL) 3SSQ873041 3SSQ873041 FOR TRANSOM "UL" $2,417.40 1 Sold Out View More Details
(2) ENGINE SHORT BLOCK KIT 3SSB870906 3SSB870906 $6,227.38 1
(3) Power Head Gasket Set 3SS871210M 3SS871210M $280.19 1
(3) O-RING 13-1.9 3T5100460M 3T5-10046-0 ANODE PLUG $0.87 10
(3) O-Ring 3SS076320M 3SS076320M OIL FILTER BRACKET $3.78 1 Sold Out View More Details
(3) O-Ring 3SS076310M 3SS076310M PLUNGER ASSY $4.38 1
(3) O-RING 2-66.5 151000530M 151-00053-0 CYLINDER BLOCK $2.86 1
(3) Oil Seal 3SS012150M 3SS012150M CRANKCASE HEAD $4.74 2
(3) Crankcase Head Gasket 3SS012140M 3SS012140M $7.53 1
(3) Oil Seal 3SS001210M 3SS001210M CRANKSHAFT $11.91 1
(3) Oil Seal 3UG001210M 3UG001210M CRANKSHAFT $11.91 1 Sold Out View More Details
(3) Oil Seal 3SS078250M 3SS078250M CAMSHAFT UPPER $6.26 1
(3) INTAKE VALVE STEM SEAL 3R3072040M 3R3-07204-0 $2.77 8
(3) EXHAUST VALVE STEM SEAL 3R3072060M 3R3-07206-0 $2.77 8
(3) O-Ring 3SS076390M 3SS076390M OIL PUMP $5.01 1
(3) O-Ring 3SS076350M 3SS076350M OIL PUMP $1.53 2
(3) Cylinder Head Gasket 3SS010050M 3SS010050M $53.99 1
(3) Cylinder Head Cover Gasket 3SS010240M 3SS010240M $16.34 1
(3) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 OIL FILLER CAP $1.39 1
(3) O-Ring 3SS038180M 3SS038180M FUEL PUMP $3.78 1 Sold Out View More Details
(3) Exhaust Manifold Gasket 3SS023350M 3SS023350M $15.70 1
(3) Exhaust Manifold Gasket 3UG023350M 3UG023350M $11.27 1
(3) O-Ring 3SS103110M 3SS103110M EXHAUST MANIFOLD $2.51 1
(3) O-Ring 3UG103110M 3UG103110M EXHAUST MANIFOLD $5.01 1
(3) Rectifier Complete Gasket 3SS760670M 3SS760670M $3.78 1
(3) Engine Basement Gasket 3SS013030M 3SS013030M $42.67 1 Sold Out View More Details
(3) Oil Pan Gasket 3SS077020M 3SS077020M $51.47 1
(3) Idle Exhaust Port Gasket 3UG612200M 3UG612200M $5.01 1
(3) Oil Pan Plate Gasket 3SS077140M 3SS077140M $6.88 1
(4) Lower Unit Gasket Set 3SS873210M 3SS873210M $42.85 1 Sold Out View More Details
(4) Gasket (10 Multiple) 332600061M 332600061M OIL PLUG $0.92 2
(4) O-Ring 3SS601030M 3SS601030M PROPELLER SHAFT HOUSING $2.51 1 Sold Out View More Details
(4) Oil Seal 3SS601110M 3SS601110M PROPELLER SHAFT HOUSING $7.53 2 Sold Out View More Details
(4) Oil Seal 3SS661370M 3SS661370M CAM ROD BUSH (INSIDE) $5.01 2 Sold Out View More Details
(4) O-Ring 3SS660230M 3SS660230M CAM ROD BUSH (OUTSIDE) $2.51 1
(4) O-Ring 3SS660230M 3SS660230M OIL SEAL HOUSING $2.51 1
(4) Guide Plate Gasket 3SS650290M 3SS650290M $3.14 1 Sold Out View More Details
(4) O-Ring 3UG650150M 3UG650150M PUMP CASE UPPER $3.14 1
(4) O-Ring 3SS650150M 3SS650150M PUMP CASE UPPER $1.87 1
(4) Oil Seal 3SS602230M 3SS602230M OIL SEAL HOUSING $5.01 2
(5) Tilt Limit Switch Kit MFS75/90/115 3SS726200M 3SS726200M $73.83 1
(5) Plate Assy 3SS726230M 3SS726230M $74.78 1
(5) BOLT 9101E35612M 910103-5612 $1.15 1
(5) Tilt Limit Cam Assy 3SS726220M 3SS726220M $10.49 1
(5) Tilt Limit Cam Holder 3SS726280M 3SS726280M $3.28 1
(5) SCREW 9215030510M 921503-0510 $0.87 1
(5) Band 3SS843980M 3SS843980M $2.51 1
(6) Trim Sensor Kit (Digital) 3SS725780M 3SS725780M $73.20 1 Sold Out View More Details
(6) TRIM SENSOR ASSY (DIGITAL) 3SS-72572-0 3SS-72572-0 $0.00 1 Sold Out View More Details
(6) TRIM SENSOR CAM ASSY 3SS-72561-0 3SS-72561-0 $0.00 1 Sold Out View More Details
(6) Tilt Limit Cam Holder 3SS726280M 3SS726280M $3.28 1
(6) SCREW 9215030510M 921503-0510 $0.87 1
(6) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.22 1
(6) Band 3SS843980M 3SS843980M $2.51 1
(7) Water Pump Repair Kit 3SS873220M 3SS873220M $69.76 1 Sold Out View More Details
(7) Water Pump Impeller 3SS650210M 3SS650210M $21.90 1 Sold Out View More Details
(7) KEY 3B7650221M 3B7650221M $11.74 1
(7) Pump Case Liner 3SS650110M 3SS650110M $12.45 1
(7) Guide Plate Gasket 3SS650290M 3SS650290M $3.14 1 Sold Out View More Details
(7) O-Ring 3UG650150M 3UG650150M $3.14 1
(7) Water Pump Guide Plate 3SS650250M 3SS650250M $8.52 1
(7) BOLT 9161E30845M 9161E3-0845 $2.51 4
(7) WASHER 9401E30800M 9401E3-0800 $0.70 4
(7) O-Ring 3SS650150M 3SS650150M $1.87 1
(8) EXTENSION HOUSING KIT (UL) 3SSQ873141 3SSQ873141 FOR TRANSOM "L"->"UL" $1,280.50 1 Sold Out View More Details
(8) Water Pipe (Ul) 3SS651200M 3SS651200M $22.59 1
(8) Extension Housing 3SSQ611100 3SSQ611100 $451.93 1 Sold Out View More Details
(8) DOWEL PIN 6-12 3AB011110M 3AB-01111-0 $2.76 2
(8) Cam Rod (Ul) 3SS660140M 3SS660140M $213.39 1
(8) E-RING D=9 9453030900M 945303-0900 $0.86 1
(8) Drive Shaft (Ul) 3SS643030M 3SS643030M $313.86 1
(8) BEARING 0506 3C7602130M 3C7-60213-0 $47.15 1
(8) Stud M10-165 P1.25 3SS611110M 3SS611110M $27.61 6
(8) NUT 10-P1.25 3B7611140M 3B7-61114-0 $2.21 6
(8) WASHER 9402E31000M 940213-1000 $1.11 6
(8) Bolt M10-170-P1.25 3SS610180M 3SS610180M $20.08 1
(9) Maintenance Kit 3SS875000M 3SS875000M $173.31 1
(9) Gasket (10 Multiple) 332600061M 332600061M $0.92 2
(9) KEY 3B7650221M 3B7650221M $11.74 1
(9) ANODE 338602182M 338-60218-2 $9.84 1
(9) ANODE 369602181M 369-60218-1 $7.94 1 Sold Out View More Details
(9) ANODE 3C7602182M 3C7-60218-2 $21.23 1
(9) ANODE 3KY602180M 3KY602180M $7.30 2 Sold Out View More Details
(9) ANODE 3P0602180M 3P0-60218-0 $3.23 10 Sold Out View More Details
(9) OIL FILTER 3BJ076150M 3BJ076150M Superseded to 3R0076150M $12.60 1
(9) Water Pump Impeller 3SS650210M 3SS650210M $21.90 1 Sold Out View More Details
(9) Water Pump Guide Plate 3SS650250M 3SS650250M $8.52 1
(9) Guide Plate Gasket 3SS650290M 3SS650290M $3.14 1 Sold Out View More Details
(9) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.88 1
(9) O-RING 13-1.9 3T5100460M 3T5-10046-0 $0.87 10
(9) Pump Case Liner 3SS650110M 3SS650110M $12.45 1
(9) SPLIT PIN 3-25 9515030325M 951503-0325 $0.92 1
(9) Spark Plug Ngk LKR6E (F75A/90A/ 115A/140A) (10 Multiple) 970111130M 970111130M $13.64 4
(9) O-Ring 3SS650150M 3SS650150M $1.87 1
(9) O-Ring 3UG650150M 3UG650150M $3.14 1
(10) Piston Repair Kit 3SS871300M 3SS871300M $57.37 1 Sold Out View More Details
(10) Piston (Std) 3SS000010M 3SS000010M $47.61 1 Sold Out View More Details
(10) Piston Pin 3SS000210M 3SS000210M $11.27 1
(10) Piston Pin Clip 3SS000240M 3SS000240M $1.22 2
(11) PISTON RING SET 3SS871231M 3SS-87123-1 $22.43 1
(11) PISTON RING 3SS000111M 3SS-00011-1 $8.43 1
(11) PISTON RING 3SS000121M 3SS-00012-1 $8.43 1
(11) Piston Ring -Oil 3SS000130M 3SS000130M $9.76 1 Sold Out View More Details
(12) INTAKE VALVE KIT 3SS-07895-1 3SS-07895-1 $0.00 1 Sold Out View More Details
(12) INTAKE VALVE Ø32 3KY079011M 3KY-07901-1 $29.21 8
(12) RETAINER 3KY079210M 3KY079210M $8.75 8
(12) COTTER 3KY079230M 3KY079230M $2.65 16 Sold Out View More Details
(13) EXHAUST VALVE KIT 3SS-07896-1 3SS-07896-1 $0.00 1 Sold Out View More Details
(13) EXHAUST VALVE Ø28 3KY079021M 3KY-07902-1 $42.69 8 Sold Out View More Details
(13) RETAINER 3KY079210M 3KY079210M $8.75 8
(13) COTTER 3KY079230M 3KY079230M $2.65 16 Sold Out View More Details
(14) VST LEAD WIRE KIT 3SS101810M 3SS-10181-0 $196.31 1 Sold Out View More Details
(15) PTT SWITCH COVER KIT 3UR726010M 3UR-72601-0 $44.86 1 Sold Out View More Details
(16) PTT SWITCH KIT 3UR726090M 3UR-72609-0 $70.85 1
Displaying 1 to 115 (of 115 products)
