25. ASSEMBLY & KIT PARTS

Click Here for Microfiche Usage Tip

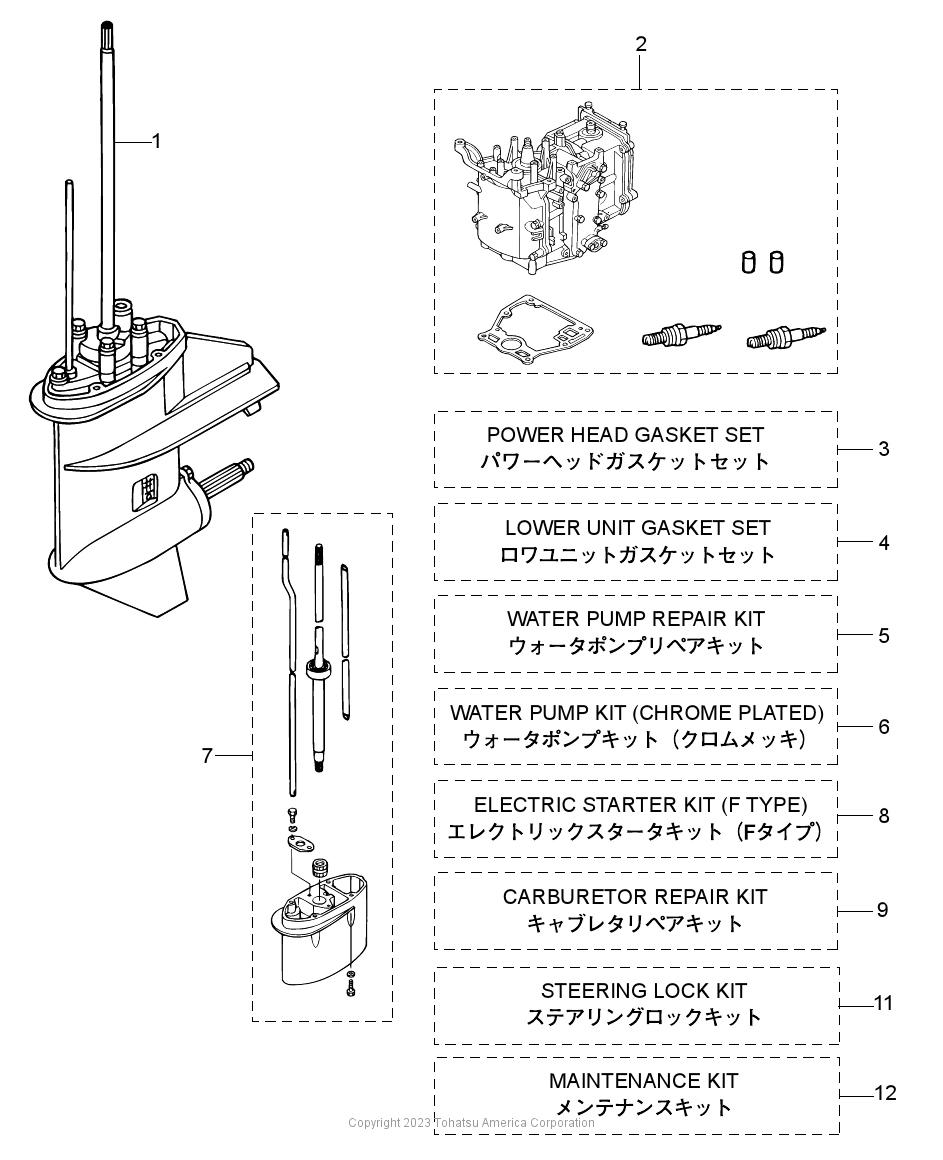

MFS9.8B ASSEMBLY & KIT PARTS(1) LOWER UNIT ASSY (S)(1) LOWER UNIT ASSY (L)(1) LOWER UNIT ASSY (UL)(2) ENGINE SHORT BLOCK KIT(3) POWER HEAD GASKET SET(3) CYLINDER HEAD GASKET(3) ENGINE BASEMENT GASKET(3) OIL SEAL 18-35-8(3) OIL PUMP GASKET(3) CYLINDER HEAD COVER GASKET(3) O-RING 3.1-24.4(3) OIL SEAL 30-45-8(3) THERMOSTAT CAP GASKET(3) EXHAUST COVER GASKET(3) GASKET(3) INTAKE MANIFOLD GASKET(3) CARBURETOR GASKET(3) O-RING 2.4-35.2(3) O-RING 2.6-18.7(3) OIL SEAL 12-28-5(4) LOWER UNIT GASKET SET(4) DRIVE SHAFT HOUSING GASKET(4) EXHAUST PIPE GASKET(4) GASKET(4) O-RING 3.2-47(4) OIL SEAL 15-28-10(4) GUIDE PLATE GASKET(4) OIL SEAL 12-24-8(4) PUMP CASE GASKET (LOWER)(4) O-RING 2.5-4.9(4) O-RING 2.4-15.4(4) PUMP CASE GASKET(5) WATER PUMP REPAIR KIT(5) WATER PUMP IMPELLER(5) KEY ø3-11(5) PUMP CASE LINER(5) WATER PUMP GUIDE PLATE(5) PUMP CASE GASKET(5) GUIDE PLATE GASKET(5) BOLT(5) WASHER(5) PUMP CASE GASKET (LOWER)(6) WATER PUMP KIT (CHROME PLATED)(6) WATER PUMP IMPELLER(6) PUMP CASE LINER(6) WATER PUMP GUIDE PLATE(6) PUMP CASE GASKET(6) GUIDE PLATE GASKET(7) EXTENSION HOUSING KIT (UL)(7) EXTENSION HOUSING(7) BOLT 6-35(7) DRIVE SHAFT BUSHING (UL)(7) STOPPER(7) BOLT(7) DRIVE SHAFT ASSY (UL)(7) CAM ROD (UL)(7) WATER PIPE (UL)(8) ELECTRIC STARTER KIT (F)(8) FLYWHEEL W/GEAR(8) ALTERNATOR ASSY(8) BOLT(8) ELECTRIC BRACKET ASSY(8) RUBBER MOUNT 8.5-18-7(8) RUBBER MOUNT 9-16-4.3(8) WASHER 6-16-1.5(8) COLLAR 6.2-9-7.4(8) BOLT(8) STARTER MOTOR ASSY(8) STARTER MOTOR BRACKET(8) BOLT(8) WASHER(8) STARTER SOLENOID(8) RECTIFIER COMPLETE(8) BOLT(8) NEUTRAL SWITCH(8) NEUTRAL SWITCH ACTUATOR(8) MAIN SWITCH ASSY(8) BATTERY CABLE L=2500(8) BOLT(8) TERMINAL CAP 13-13-28(8) STARTER CABLE L=200(8) SPIRAL TUBE PROTECTOR ø10-100(8) TERMINAL CAP 8-18-28(8) TERMINAL CAP 8-13-28(8) FUSE WIRE ASSY L=185(8) FUSE HOLDER BRACKET(8) CABLE TERMINAL HOLDER STAY(8) CABLE TERMINAL HOLDER(8) COLLAR 6-8-6(8) BOLT(8) BOLT(8) COVER(9) CARBURETOR REPAIR KIT(9) FLOAT CHAMBER GASKET(9) SCREW(9) FLOAT(9) FLOAT ARM PIN(9) SCREW(9) FLOAT VALVE(9) O-RING(9) CARBURETOR COVER GASKET(9) SCREW(9) GASKET(9) FILTER(9) SPACER(11) STEERING LOCK KIT(11) STEERING LOCK PLATE(11) WASHER 8.5-34-3(11) PRE-COATED BOLT 6-12(11) PRE-COATED BOLT 8-20(11) CAP NUT(12) MAINTENANCE KIT FOR MFS 8/9.8A3/B(12) GASKET(12) FUEL FILTER ASSY(12) ANODE(12) PUMP CASE LINER(12) PUMP CASE GASKET(12) WATER PUMP IMPELLER(12) KEY ø3-11(12) WATER PUMP GUIDE PLATE(12) GUIDE PLATE GASKET(12) GASKET(12) WASHER 14.5-24-1(12) TRIM TAB(12) SPRING PIN 3-10(12) SPLIT PIN 3-18(12) SPARK PLUG(DCPR6E)

Displaying 1 to 127 (of 127 products)

Parts List

2023 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8B :: ASSEMBLY & KIT PARTS

Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed		 Order Quantity
(1) LOWER UNIT ASSY (S) 3V1Q873018 3V1Q873018 FOR TRANSOM "S" $640.84 1
(1) LOWER UNIT ASSY (L) 3V1Q873028 3V1Q873028 FOR TRANSOM "L" $665.17 1
(1) LOWER UNIT ASSY (UL) 3V1Q873048 3V1Q873048 FOR TRANSOM "UL" $681.41 1
(2) Short Block (8-9.8/4-ST) 3V1B870908 3V1B870908 $1,740.94 1
(3) POWER HEAD GASKET SET 3V1871210M 3V1-87121-0 $90.97 1
(3) CYLINDER HEAD GASKET 3V1010050M 3V1-01005-0 Superseded to 31H010050M $17.51 1
(3) ENGINE BASEMENT GASKET 3V1013030M 3V1-01303-0 Superseded to 31H013030M $15.74 1
(3) OIL SEAL 18-35-8 3H8070250M 3H8-07025-0 CAMSHAFT $5.82 1
(3) OIL PUMP GASKET 3V1076530M 3V1-07653-0 $4.60 1 Sold Out View More Details
(3) CYLINDER HEAD COVER GASKET 3V1010240M 3V1-01024-0 $5.96 1
(3) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 OIL FILLER CAP $1.39 1 Sold Out View More Details
(3) OIL SEAL 30-45-8 3V1001210M 3V1-00121-0 CRANKSHAFT $13.12 2
(3) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $2.07 1
(3) EXHAUST COVER GASKET 3V1023050M 3V1-02305-0 $4.89 1 Sold Out View More Details
(3) ANODE CAP GASKET 3R3011440M 3R3-01144-0 ANODE PLUG $2.14 1
(3) INTAKE MANIFOLD GASKET 3V1021040M 3V1-02104-0 $4.49 1
(3) CARBURETOR GASKET 3V1020110M 3V1-02011-0 $2.24 2 Sold Out View More Details
(3) O-RING 2.4-35.2 3V1020120M 3V1-02012-0 CARBURETOR $1.25 1
(3) O-RING 2.62-18.72 3H6074220M 3H6-07422-0 FUEL PUMP $1.68 1
(3) OIL SEAL 12-28-5 3B2012150M 3B2-01215-0 DRIVE SHAFT $6.08 1
(4) Lower Unit Gasket Kit 8/9.8B 3B2873215M 3B2873215M $34.53 1
(4) DRIVE SHAFT HOUSING GASKET 3B2610122M 3B2-61012-0 $15.79 1
(4) EXHAUST PIPE GASKET 3B2023122M 3B2-02312-0 $3.43 1
(4) Gasket (10 Multiple) 332600061M 332600061M $0.92 3
(4) O-RING 3.2-47 345650150M 345-65015-0 PROPELLER SHAFT HOUSING $1.61 1 Sold Out View More Details
(4) OIL SEAL 15-28-10 369601110M 369-60111-0 PROPELLER SHAFT $4.69 1
(4) GUIDE PLATE GASKET 3B2650292M 3B2-65029-0 $2.21 1
(4) OIL SEAL 12-24-8 309601110M 309-60111-0 PUMP CASE LOWER $7.39 1
(4) PUMP CASE GASKET (LOWER) 3B2650201M 3B2-65020-1 $5.66 1
(4) O-RING 2.5-4.9 369660211M 369-66021-1 CAM ROD BUSHING $1.36 2 Sold Out View More Details
(4) O-RING 2.4-15.4 332660320M 332-66032-0 CAM ROD BUSHING $1.50 1
(4) PUMP CASE GASKET 3B2650182M 3B2-65018-0 $5.00 1
(5) WATER PUMP REPAIR KIT 3B2873222M 3B2-87322-0 $41.26 1
(5) WATER PUMP IMPELLER 3B2650211M 3B2-65021-1 $10.38 1
(5) PUMP IMPELLER KEY 3B2650220M 3B2-65022-0 $1.56 1
(5) PUMP CASE LINER 3B2650110M 3B2-65011-0 $12.98 1
(5) WATER PUMP GUIDE PLATE 3B2650250M 3B2-65025-0 $3.08 1
(5) PUMP CASE GASKET 3B2650182M 3B2-65018-0 $5.00 1
(5) GUIDE PLATE GASKET 3B2650292M 3B2-65029-0 $2.21 1
(5) BOLT 9161E30650M 916113-0650 $2.59 4 Sold Out View More Details
(5) WASHER 9401030600M 940103-0600 $0.75 4
(5) PUMP CASE GASKET (LOWER) 3B2650201M 3B2-65020-1 $5.66 1
(6) WATER PUMP KIT (CHROME PLATED) 3B2652312M 3B2-65231-2 $56.04 1
(6) WATER PUMP IMPELLER 3B2650211M 3B2-65021-1 $10.38 1
(6) PUMP CASE LINER (CHROME PLATED) 3B2652380M 3B2-65238-0 CHROME PLATED $0.00 1 Sold Out View More Details
(6) PUMP GUIDE PLATE (CHROME PLATED) 3B2652390M 3B2-65239-0 CHROME PLATED $0.00 1 Sold Out View More Details
(6) PUMP CASE GASKET 3B2650182M 3B2-65018-0 $5.00 1
(6) GUIDE PLATE GASKET 3B2650292M 3B2-65029-0 $2.21 1
(7) EXTENSION HOUSING KIT (UL) 3V1Q87314-5 3V1Q87314-5 FOR TRANSOM "L"->"UL" $0.00 1 Sold Out View More Details
(7) EXTENSION HOUSING UL 3B2Q611102 3B2Q61110-2 $213.27 1
(7) BOLT 6-35 3V2600010M 3V1-60001-0 $3.68 4
(7) DRIVE SHAFT BUSHING 3B2600031M 3B2-60003-1 $66.47 1
(7) BUSHING STOPPER 3V1643320M 3V1-64332-0 $5.55 1
(7) BOLT 9101E35612M 910103-5612 $1.15 2
(7) DRIVE SHAFT ASSY (UL) 3V1643092M 3V1-64309-2 $0.00 1 Sold Out View More Details
(7) CAM ROD UL 3V1660140M 3V1-66014-0 $21.28 1 Sold Out View More Details
(7) WATER PIPE UL 3V1651200M 3V1-65120-0 $25.63 1
(8) ELECTRIC STARTER KIT (F) 3V2763004M 3V2763004M FOR MF->EF $949.70 1
(8) FLYWHEEL CUP 3AA060910M 3AA-06091-0 $298.89 1
(8) ALTERNATER 3AA060230M 3AA-06023-0 $65.90 1
(8) BOLT 9101035610M 910103-5610 Superseded to 9101E35610M $1.10 3
(8) BOLT 9101035612M 910103-5612 Superseded to 9101E35612M $1.15 1 Sold Out View More Details
(8) BOLT 9101035616M 910103-5616 Superseded to 9101E35616M $1.22 1
(8) BOLT 9101035616M 910103-5616 Superseded to 9101E35616M $1.22 1
(8) BOLT 9101035630M 910113-5630 $1.22 4
(8) BOLT 9101E30620M 9101E3-0620 Superseded to 9101030620M $1.11 3 Sold Out View More Details
(8) BOLT 9161140830M 916114-0830 Superseded to 9161E30832M $0.00 4 Sold Out View More Details
(8) ELECTRIC BRACKET ASSY 3V1069001M 3V1-06900-1 Superseded to 3V1069000M $25.25 1
(8) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.11 3
(8) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.98 3
(8) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 6
(8) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 Superseded to 3H6760791M $1.91 3
(8) STARTER MOTOR 3AA760100M 3AA-76010-0 $460.15 1
(8) STARTER MOTOR BRACKET 3V1760111M 3V1-76011-1 $32.30 1 Sold Out View More Details
(8) WASHER 9401030800M 940113-0800 $0.90 4 Sold Out View More Details
(8) STARTER SOLENOID 3H8760400M 3H8-76040-0 $72.29 1
(8) RECTIFIER 3AA760650M 3AA-76065-0 $109.26 1 Sold Out View More Details
(8) NEUTRAL SWITCH 398760801M 398760801M $44.34 1
(8) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 Superseded to 3RS760830M $4.35 1
(8) MAIN SWITCH 3AA760260M 3AA-76026-0 $14.91 1
(8) BATTERY CABLE L=2500 3AC761200M 3AC-76120-0 $69.99 1
(8) TERMINAL CAP 3AA761450M 3AA-76145-0 $2.40 1
(8) STARTER CABLE L=200 3B2761472M 3B2-76147-2 $17.65 1
(8) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 $6.63 2
(8) TERMINAL CAP 3Y0761450M 3Y0-76145-0 $2.40 1
(8) TERMINAL CAP 3Y1761450M 3Y1-76145-0 $2.40 1
(8) FUSE CABLE 3V1760660M 3V1-76066-0 $35.11 1 Sold Out View More Details
(8) FUSE HOLDER STAY 3R0760640M 3R0-76064-0 $1.55 1
(8) CABLE TERMINAL HOLDER STAY 3V1062841M 3V1-06284-1 Superseded to 3V1062840M $5.23 1 Sold Out View More Details
(8) CABLE TERMINAL HOLDER 3AA062811M 3AA062811M $14.27 1
(8) COLLAR 6-8-6 174350120M 174-35012-0 $3.06 1
(8) COVER 3AA069021M 3AA069021M $5.80 1
(9) Carburetor Repair Kit MFS8/9.8A-B 3V1871221M 3V1871221M $50.49 1
(9) FLOAT CHAMBER GASKET 3V1031210M 3V1-03121-0 $5.20 1
(9) SCREW 9217030406M 920703-0406 $0.72 1
(9) SCREW 9225036410M 922503-6410 $1.91 2
(9) SCREW 9225036412M 922503-6412 $1.57 4 Sold Out View More Details
(9) FLOAT 3C8031250M 3C8-03125-0 $15.32 1 Sold Out View More Details
(9) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.56 1
(9) FLOAT VALVE 3V1031471M 3V1-03147-1 $16.08 1
(9) O-RING 3V1031160M 3V1-03116-0 $1.61 1 Sold Out View More Details
(9) CARBURETOR COVER GASKET 3V1031820M 3V1-03182-0 $7.22 1 Sold Out View More Details
(9) DRAIN SCREW GASKET 3V1031930M 3V1-03193-0 $2.58 1
(9) FUEL FILTER 3BJ022340M 3BJ-02234-0 $3.06 1
(9) SPACER 3UA-03026-0 3UA-03026-0 $0.00 1 Sold Out View More Details
(11) Steering Lock Kit (F8/9.8 Ep/ept/eft) 3V1625001M 3V1625001M FOR EP/EPT TYPE $34.28 1
(11) STEERING LOCK PLATE 3V1625100 3V1-62510-0 $0.00 1 Sold Out View More Details
(11) WASHER 8.5-34-3 3Z0613340M 3Z0-61334-0 $4.19 1
(11) PRE-COATED BOLT 6-12 3Y3601080 3Y3-60108-0 $0.00 2 Sold Out View More Details
(11) PRE-COATED BOLT 8-20 3Y4601080 3Y4-60108-0 $0.00 1 Sold Out View More Details
(11) CAP BRACKET BOLT 346621270M 346-62127-0 $2.48 2
(12) MAINTENANCE KIT 3V1875000M 3V1-87500-0 $48.13 1
(12) Gasket (10 Multiple) 332600061M 332600061M $0.92 2
(12) ANODE CAP GASKET 3R3011440M 3R3-01144-0 $2.14 1
(12) Fuel Filter 369022301M 369022301M $12.98 1
(12) ANODE 369602181M 369-60218-1 $7.94 1 Sold Out View More Details
(12) PUMP CASE LINER 3B2650110M 3B2-65011-0 $12.98 1
(12) PUMP CASE GASKET 3B2650182M 3B2-65018-0 $5.00 1
(12) WATER PUMP IMPELLER 3B2650211M 3B2-65021-1 $10.38 1
(12) PUMP IMPELLER KEY 3B2650220M 3B2-65022-0 $1.56 1
(12) WATER PUMP GUIDE PLATE 3B2650250M 3B2-65025-0 $3.08 1
(12) GUIDE PLATE GASKET 3B2650292M 3B2-65029-0 $2.21 1
(12) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.88 1
(12) TRIM TAB 3V1602170M 3V1-60217-0 $12.22 1
(12) SPRING PIN 3-10 9514030310M 951403-0310 $0.92 2
(12) SPLIT PIN 3-18 9515030318M 951503-0318 $1.01 1
(12) SPARK PLUG 970111103M 9701-1-1103 Superseded to 970101103M $6.96 2
Displaying 1 to 127 (of 127 products)
