Home :: Nissan Tohatsu Parts by Motor :: 2021 :: 30 HP :: 4 Stroke Tohatsu MFS30C :: 24. ASSEMBLY & KIT PARTS

24. ASSEMBLY & KIT PARTS

Click Here for Microfiche Usage Tip

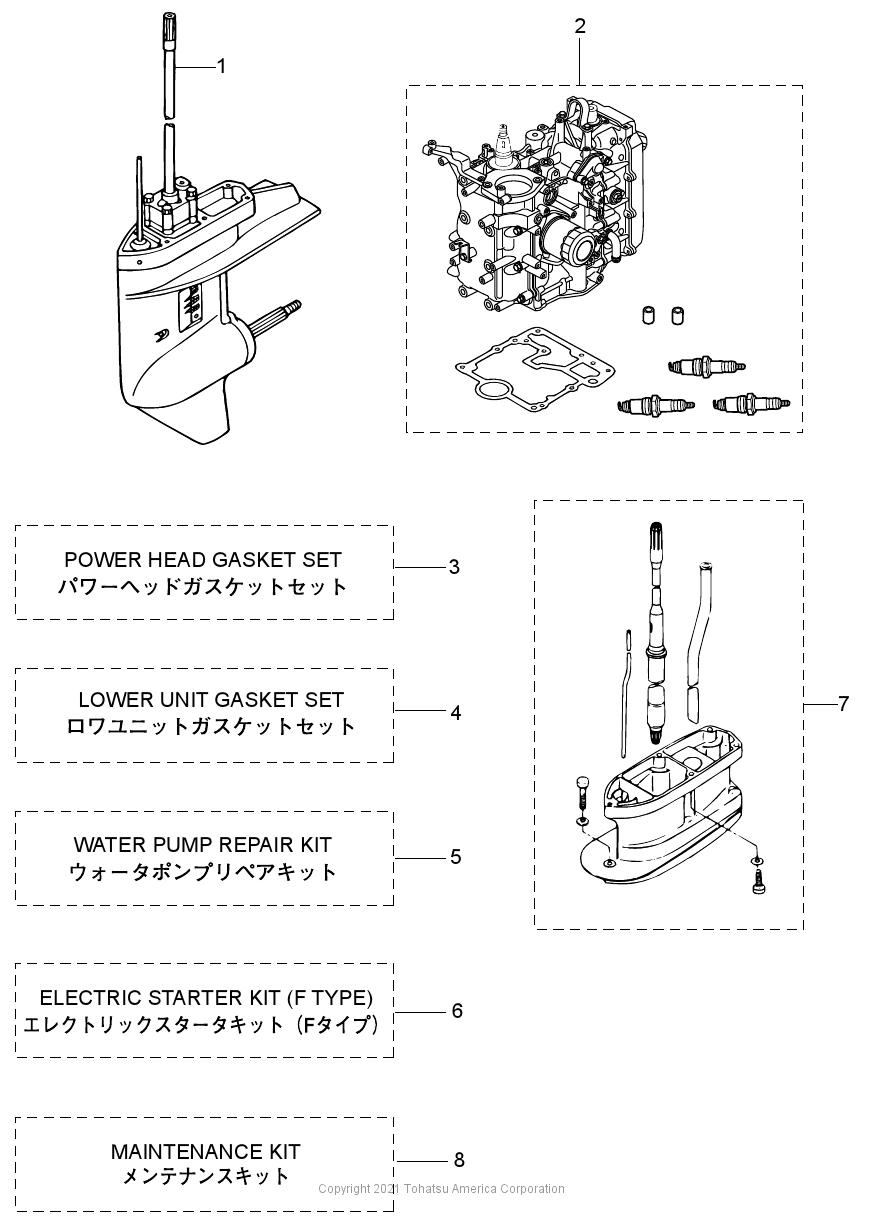

MFS30C ASSEMBLY & KIT PARTS

Displaying 1 to 82 (of 82 products)

Parts List

2021 :: 30 HP :: 4 Stroke Tohatsu MFS30C :: ASSEMBLY & KIT PARTS

Pic. Ref.	Part Description	Tohatsu Part Number	Original Part Number	Remarks	Price	Quantity Needed	Order Quantity
(1)	Lower Unit Assy (S)	3NVQ873011	3NVQ873011		$1,022.13	1
(1)	Lower Unit Assy (S)	3NVW873011	3NVW873011	FOR WHITE MODEL	$1,022.13	1
(1)	Lower Unit Assy L (F25/30C)	3NVQ873021	3NVQ873021		$1,038.34	1
(1)	Lower Unit Assy Long	3NVW873021	3NVW873021	FOR WHITE MODEL	$1,046.46	1
(1)	LOWER UNIT ASSY (UL)	3NVQ873041	3NVQ87304-1	FOR TRANSOM "UL"	$1,054.56	1	View More Details
(2)	ENGINE SHORT BLOCK KIT	3NVB870908	3NVB870908	30PS	$2,505.94	1
(3)	Power Head Gasket Set	3AC871212M	3AC871212M	Superseded to 3AC871213M	$137.96	1	View More Details
(3)	GASKET HEAD COVER	3R0010240M	3R0-01024-0		$9.73	1
(3)	O-RING 3.1-24.4	3R0074220M	3R0-07422-0	OIL FILLER CAP	$1.39	1	View More Details
(3)	OIL SEAL 18-35-8	3H8070250M	3H8-07025-0	CAMSHAFT	$5.82	1
(3)	Cylinder Head Gasket Serial 008960AK and Above (See Note)	3NV010050M	3NV010050M	Superseded to 3NV010051M	$42.49	1
(3)	THERMOSTAT CAP GASKET	346010320M	346-01032-0		$2.07	1
(3)	GASKET	3AC101040M	3AC-10104-0	THROTTLE BODY	$2.48	1
(3)	ANODE CAP GASKET	3R3011440M	3R3-01144-0		$2.14	1
(3)	OIL SEAL 38 - 50 - 8	3R0001220M	3R0-00122-0	UPPER	$14.17	1
(3)	OIL SEAL 35 - 50 - 8	3R0001210M	3R0-00121-0	LOWER	$15.32	1
(3)	O-RING 1.9-31.2	3AC020120M	3AC-02012-0	INSULATOR	$1.09	6
(3)	O-RING OIL PUMP OUTER	3R0076390M	3R0-07639-0		$2.48	1
(3)	GASKET ENGINE BASE	3R0013030M	3R0-01303-0		$33.76	1
(3)	OIL SEAL 16 - 28 - 6	346012150M	346-01215-0	DRIVE SHAFT	$4.70	1
(3)	GASKET DRIVE SHAFT HOUSING	3R0610120M	3R0-61012-0		$41.47	1
(4)	LOWER UNIT GASKET SET	3R0873211M	3R0873211M		$24.34	1
(4)	Gasket (10 Multiple)	332600061M	332600061M	OIL PLUG	$0.92	2
(4)	O-RING 3 - 62.5	332601030M	332-60103-0	PROPELLER SHAFT HOUSING	$4.19	1	View More Details
(4)	OIL SEAL 17 - 30 - 9	346650130M	346-65013-0	PUMP CASE (LOWER)	$9.12	1
(4)	OIL SEAL 18-28-8	3AC601110M	3AC601110M	PROPELLER SHAFT	$4.29	2
(4)	O-RING 3.5 - 36	336624150M	336-62415-0	PUMP CASE (LOWER)	$1.61	1
(4)	O-RING 2.4 - 5.8	332660210M	332-66021-0	CAM ROD	$1.50	2
(4)	O-RING 3.5 - 21.7	3C8660320M	3C8-66032-0	CAM ROD BUSHING	$2.21	1
(4)	GASKET PUMP CASE	3R0650180M	3R0-65018-0		$2.58	1
(4)	GASKET GUIDE PLATE	348650291M	348-65029-1		$2.59	1
(5)	Water Pump Repair Kit F25/30	3NV873220M	3NV873220M		$35.94	1
(5)	Impeller	3NV650210M	3NV650210M		$12.98	1
(5)	KEY PUMP IMPELLER	332650220M	332-65022-0		$6.93	1	View More Details
(5)	LINER PUMP CASE	3R0650110M	3R0-65011-0		$8.65	1
(5)	WATER PUMP GUIDE PLATE	3AC650250M	3AC-65025-0		$4.88	1
(5)	GASKET PUMP CASE	3R0650180M	3R0-65018-0		$2.58	1
(5)	GASKET GUIDE PLATE	348650291M	348-65029-1		$2.59	1
(6)	ELECTRIC STARTER KIT (F)	3NV763003M	3NV763003M	FOR MF -> EF TYPE	$624.37	1
(6)	STARTER MOTOR ASSY	3RS760100M	3RS760100M	Superseded to 3GF760101M	$525.93	1
(6)	BOLT	9101035820M	910103-5820		$1.84	2
(6)	BOLT	9101035830M	9101E3-5830		$2.02	2
(6)	BOLT (OR 910113-5616)	9101E35616M	910113-5616		$1.22	1
(6)	BAND STARTER MOTOR	3R0760090M	3R0-76009-0		$5.69	1
(6)	RUBBER STARTER MOTOR	3C8760070M	3C8-76007-0		$3.62	1
(6)	STARTER SOLENOID	3H8760400M	3H8-76040-0		$72.29	1
(6)	MAIN SWITCH	3AA760260M	3AA-76026-0		$14.91	1
(6)	NEUTRAL SWITCH	3NV760800M	3NV760800M		$21.86	1
(6)	NEUTRAL SWITCH ACTUATOR	398760830M	398-76083-0	Superseded to 3RS760830M	$4.35	1
(6)	BATTERY CABLE L=2500	3AC761200M	3AC-76120-0		$69.99	1
(6)	TERMINAL CAP	3AA761450M	3AA-76145-0		$2.40	1
(6)	STARTER CORD (L=270)	3R3761410M	3R3-76141-0		$26.63	1
(6)	TERMINAL CAP	3Y1761450M	3Y1-76145-0		$2.40	1
(6)	TERMINAL CAP	3Y0761450M	3Y0-76145-0		$2.40	1
(6)	RECTIFIER COMPLETE	3AC760652M	3AC-76065-2		$136.26	1
(6)	FUSE WIRE ASSY	3AC760660M	3AC-76066-0		$57.36	1
(6)	NEUTRAL SWITCH BRACKET	3NV760810M	3NV760810M		$4.12	1
(7)	EXTENSION HOUSING KIT (UL)	3NVQ873140	3NVQ873140	FOR TRANSOM "L" -> "UL"	$437.06	1
(7)	EXTENSION HOUSING	346Q611105	346Q61110-5		$234.90	1
(7)	BOLT	9161E30835M	916113-0835		$2.14	4
(7)	BOLT	9161E30845M	9161E3-0845		$2.51	1
(7)	WASHER 8.1 -16 -1.5	3P0662330M	3P0-66233-0		$1.38	5
(7)	DRIVE SHAFT UL	346643035M	346-64303-5		$0.00	1	View More Details
(7)	WATER PIPE UL	3R0651200M	3R0-65120-0		$25.39	1
(7)	CAM ROD (UL)	3NV660140M	3NV660140M		$13.83	1	View More Details
(7)	SPRING PN 3-12	9514070312M	951407-0312		$0.92	1
(7)	HOLDER CAM ROD	346660370M	346-66037-0		$2.35	1
(8)	MAINTENANCE KIT	3NV875001M	3NV-87500-1		$73.86	1
(8)	Gasket (10 Multiple)	332600061M	332600061M		$0.92	2
(8)	KEY PUMP IMPELLER	332650220M	332-65022-0		$6.93	1	View More Details
(8)	Impeller	3NV650210M	3NV650210M		$12.98	1
(8)	GASKET GUIDE PLATE	348650291M	348-65029-1		$2.59	1
(8)	OIL FILTER	3BJ076150M	3BJ076150M	Superseded to 3R0076150M	$12.60	1
(8)	TRIM TAB	3C8602171M	3C8-60217-1		$14.55	1
(8)	ANODE	3P0602180M	3P0-60218-0		$3.23	2	View More Details
(8)	LINER PUMP CASE	3R0650110M	3R0-65011-0		$8.65	1
(8)	GASKET PUMP CASE	3R0650180M	3R0-65018-0		$2.58	1
(8)	WATER PUMP GUIDE PLATE	3AC650250M	3AC-65025-0		$4.88	1
(8)	WASHER 14.5-24-1	3R3074060M	3R3-07406-0		$0.88	1
(8)	SPRING PIN 3-12	9514030312M	951403-0312		$0.88	1
(8)	SPLIT PIN 3 – 22	9515030322M	951503-0322		$0.88	1
(8)	SPARK PLUG	970111103M	9701-1-1103	Superseded to 970101103M	$6.96	3

Displaying 1 to 82 (of 82 products)
