20. ASSEMBLY & KIT PARTS : East Marine, Genuine OEM Tohatsu & Nissan Outboard Parts

Parts Description (1) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(1) LOWER UNIT ASSY (S)	3RSQ873013	3RSQ873013	1	$899.38	$827.43
(1) Lower Unit Assy (S) White	3RSW873013	3RSW873013	1	$803.48	$739.20	FOR WHITE MODEL	View More Details
(1) LOWER UNIT ASSY (L)	3RSQ873023	3RSQ873023	1	$934.65	$859.88
(1) Lower Unit Assy (L) White	3RSW873022	3RSW873022	1	$1,065.96	$980.68	FOR WHITE MODEL	View More Details
(1) Lower Unit Assy (Ul)	3RSQ873042	3RSQ873042	1	$952.30	$876.12	FOR TRANSOM "UL" / Superseded to 3RSQ873043

Parts Description (2) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(2) ENGINE SHORT BLOCK KIT	3RSB870902	3RSB870902	1	$2,443.10	$2,247.65	Superseded to 3RSB870903	View More Details

Parts Description (3) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(3) POWER HEAD GASKET SET	3RS871210M	3RS871210M	1	$83.05	$76.41
(3) CYLINDER HEAD GASKET	3RS010050M	3RS010050M	1	$28.53	$26.25
(3) CYLINDER HEAD COVER GASKET	3RS010240M	3RS010240M	1	$6.30	$5.80
(3) O-RING 3.1-24.4	3R0074220M	3R0-07422-0	1	$1.51	$1.39
(3) EXHAUST COVER GASKET	3RS023050M	3RS023050M	1	$6.30	$5.80	Superseded to 3RS023051M
(3) THERMOSTAT CAP GASKET	346010320M	346-01032-0	1	$2.25	$2.07
(3) ENGINE BASEMENT GASKET	3RS013030M	3RS013030M	1	$23.66	$21.77
(3) OIL SEAL 32-44-9	3R3001210M	3R3-00121-0	1	$9.86	$9.07
(3) OIL SEAL 36-50-7	3BJ001210M	3BJ-00121-0	1	$12.80	$11.78
(3) CARBURETOR GASKET	3BJ020110M	3BJ-02011-0	1	$3.00	$2.76		View More Details
(3) O-RING 3.5-25.7	3H8624150M	345-62415-0	1	$1.28	$1.18		View More Details
(3) OIL PUMP GASKET	3RS076530M	3RS076530M	1	$2.96	$2.72
(3) OIL SEAL 18-35-8	3H8070250M	3H8-07025-0	1	$6.33	$5.82

Parts Description (4) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(4) LOWER UNIT GASKET SET	3RS873210M	3RS873210M	1	$19.76	$18.18
(4) GUIDE PLATE GASKET	3RS650290M	3RS650290M	1	$2.40	$2.21
(4) Gasket (10 Multiple)	332600061M	332600061M	2	$1.00	$0.92
(4) O-RING 2.4-59.6	121320710M	121-32071-0	1	$7.35	$6.76	Superseded to 3C7014030M	View More Details
(4) OIL SEAL 17 - 30 - 9	346650130M	346-65013-0	1	$9.91	$9.12
(4) OIL SEAL 13.8-26-9.5	332602230M	332-60223-0	1	$9.36	$8.61
(4) PUMP CASE GASKET (LOWER)	3RS650200M	3RS650200M	1	$2.96	$2.72		View More Details
(4) O-RING	3RS660210M	3RS660210M	1	$1.00	$0.92

Parts Description (5) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(5) WATER PUMP REPAIR KIT	3RS873221M	3RS-87322-1	1	$38.75	$35.65
(5) GUIDE PLATE GASKET	3RS650290M	3RS650290M	1	$2.40	$2.21
(5) WATER PUMP IMPELLER	3LD650210M	3LD650210M	1	$14.11	$12.98		View More Details
(5) KEY	3RS650220M	3RS650220M	1	$4.60	$4.23	Superseded to 3RS650221M
(5) Pump Case Liner 2020	3RS650110M	3RS650110M	1	$6.46	$5.94
(5) WATER PUMP GUIDE PLATE	3RS650250M	3RS650250M	1	$3.23	$2.97
(5) BOLT	9101E35652M	910113-5652	4	$3.38	$3.11

Parts Description (6) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(6) WATER PUMP KIT (CHROME PLATED)	3RS652310M	3RS652310M	1	$55.31	$50.89		View More Details
(6) GUIDE PLATE GASKET	3RS650290M	3RS650290M	1	$2.40	$2.21
(6) WATER PUMP IMPELLER	3LD650210M	3LD650210M	1	$14.11	$12.98		View More Details
(6) PUMP CASE LINER (CHROME PLATED)	362652380M	362-65238-0	1		$0.00		View More Details
(6) WATER PUMP GUIDE PLATE	3RS650250M	3RS650250M	1	$3.23	$2.97

Parts Description (7) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(7) ELECTRIC STARTER KIT (F)	3RS763008M	3RS763008M	1	$985.40	$906.57		View More Details
(7) ALTERNATOR ASSY	3RT060230M	3RT060230M	1	$130.65	$120.20
(7) FLYWHEEL W/RING GEAR	3RT061910M	3RT061910M	1	$221.30	$203.60		View More Details
(7) CORD ASSY	3RT761100M	3RT761100M	1	$169.26	$155.72		View More Details
(7) PROTECTOR ø 10.7-320	3BJ061330M	3BJ-06133-0	1		$0.00		View More Details
(7) PROTECTOR Ø10.7-210	3SY-06133-0	3SY-06133-0	1		$0.00		View More Details
(7) PLUG	3RS010470M	3RS010470M	1	$11.90	$10.95
(7) BRACKET	3RS069010M	3RS069010M	1	$35.96	$33.08
(7) STARTER SOLENOID	3H8760400M	3H8-76040-0	1	$78.58	$72.29
(7) BOLT	9101030625M	910113-0625	3	$1.10	$1.01
(7) BOLT	9101035610M	910103-5610	2	$1.20	$1.10	Superseded to 9101E35610M
(7) BOLT	9101035612M	910103-5612	1	$1.25	$1.15	Superseded to 9101E35612M	View More Details
(7) BOLT	9101035612M	910103-5612	1	$1.25	$1.15	Superseded to 9101E35612M	View More Details
(7) BOLT	9101035612M	910103-5612	2	$1.25	$1.15	Superseded to 9101E35612M	View More Details
(7) BOLT	9101035612M	910103-5612	2	$1.25	$1.15	Superseded to 9101E35612M	View More Details
(7) BOLT	9101035616M	910103-5616	1	$1.33	$1.22	Superseded to 9101E35616M
(7) BOLT	9101035620M	910103-5620	2	$1.51	$1.39	Superseded to 9101E35620M
(7) BOLT	9101035825M	910103-5825	2	$2.20	$2.02
(7) RUBBER MOUNT	3KY069200M	3KY069200M	3	$6.03	$5.55		View More Details
(7) COLLAR 6.1-16-12.2	3RS760790M	3RS760790M	3	$2.68	$2.47
(7) WASHER 6 -16 -1.5	3C8663080M	3C8-66308-0	3	$1.63	$1.50
(7) STARTER MOTOR ASSY	3GF760101M	3GF760101M	1	$571.66	$525.93
(7) STARTER MOTOR BAND	3RS760090M	3RS760090M	1	$8.40	$7.73
(7) RUBBER STARTER MOTOR	3C8760070M	3C8-76007-0	1	$3.93	$3.62
(7) RECTIFIER COMPLETE	3RS760600M	3RS760600M	1	$81.56	$75.04		View More Details
(7) RECTIFIER BRACKET	3RT761631M	3RT-76163-1	1	$9.85	$9.06
(7) BATTERY CABLE	3BH761200M	3BH-76120-0	1	$76.08	$69.99
(7) TERMINAL CAP	3BJ761450M	3BJ-76145-0	1	$3.15	$2.90
(7) TERMINAL CAP	3Y0761450M	3Y0-76145-0	1	$2.61	$2.40
(7) TERMINAL CAP	3AA761450M	3AA-76145-0	1	$2.61	$2.40
(7) STARTER CABLE	3RS761410M	3RS761410M	1	$29.36	$27.01
(7) NEUTRAL SWITCH	3NV760800M	3NV760800M	1	$23.76	$21.86
(7) NEUTRAL SWITCH ACTUATOR	398760830M	398-76083-0	1	$4.73	$4.35	Superseded to 3RS760830M
(7) Neutral Switch Bracket	3RS760811M	3RS760811M	1	$4.65	$4.28
(7) MAIN SWITCH	3AA760260M	3AA-76026-0	1	$16.21	$14.91
(7) BAND 202	369843981M	369-84398-1	3	$1.95	$1.79
(7) ASSIST CORD COMPLETE	3SY761660M	3SY-76166-0	1	$12.33	$11.34		View More Details

Parts Description (8) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(8) Extension Housing Kit (Ul)	3RSQ873141	3RSQ873141	1	$674.61	$620.64
(8) EXTENSION HOUSING UL	3RSQ611100	3RSQ611100	1	$316.15	$290.86		View More Details
(8) DOWEL PIN 6-12	3AB011110M	3AB-01111-0	2	$3.00	$2.76
(8) BOLT 8-31	3BJ600010M	3BJ600010M	4	$3.01	$2.77		View More Details
(8) DRIVE SHAFT BUSHING	3BJ600030M	3BJ-60003-0	1	$51.53	$47.41
(8) BUSHING STOPPER	3V1643320M	3V1-64332-0	1	$6.03	$5.55
(8) BOLT	9101E35612M	910103-5612	2	$1.25	$1.15
(8) WATER PIPE (UL)	3RS651200M	3RS651200M	1	$40.56	$37.32
(8) DRIVE SHAFT (UL)	3RS643030M	3RS643030M	1	$240.63	$221.38
(8) Cam Rod (Ul)	3RS660141M	3RS660141M	1	$19.10	$17.57		View More Details

Parts Description (9) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(9) MAINTENANCE KIT	3RS875001M	3RS-87500-1	1	$62.98	$57.94		View More Details
(9) ANODE	3KY602180M	3KY602180M	1	$7.93	$7.30		View More Details
(9) ANODE	3P0602180M	3P0-60218-0	1	$3.51	$3.23		View More Details
(9) OIL FILTER	3BJ076150M	3BJ076150M	1	$13.70	$12.60	Superseded to 3R0076150M
(9) WATER PUMP IMPELLER	3LD650210M	3LD650210M	1	$14.11	$12.98		View More Details
(9) Pump Case Liner 2020	3RS650110M	3RS650110M	1	$6.46	$5.94
(9) KEY	3RS650220M	3RS650220M	1	$4.60	$4.23	Superseded to 3RS650221M
(9) WATER PUMP GUIDE PLATE	3RS650250M	3RS650250M	1	$3.23	$2.97
(9) GUIDE PLATE GASKET	3RS650290M	3RS650290M	1	$2.40	$2.21
(9) Gasket (10 Multiple)	332600061M	332600061M	2	$1.00	$0.92
(9) WASHER 14.5-24-1	3R3074060M	3R3-07406-0	1	$0.96	$0.88
(9) SPLIT PIN 3 – 22	9515030322M	951503-0322	1	$0.96	$0.88
(9) SPARK PLUG	970111103M	9701-1-1103	2	$7.56	$6.96	Superseded to 970101103M

Parts Description (10) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(10) Intake Valve Kit	3RS078951M	3RS078951M	1	$23.50	$21.62
(10) INTAKE VALVE	3RS079010M	3RS079010M	1	$18.61	$17.12
(10) Retainer	3GT079210M	3GT079210M	1	$6.16	$5.67		View More Details
(10) COTTER	3KY079230M	3KY079230M	2	$2.88	$2.65		View More Details

Parts Description (11) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(11) Exhaust Valve Kit	3RS078961M	3RS078961M	1	$25.63	$23.58
(11) EXHAUST VALVE	3RS079020M	3RS079020M	1	$20.98	$19.30
(11) Retainer	3GT079210M	3GT079210M	1	$6.16	$5.67		View More Details
(11) COTTER	3KY079230M	3KY079230M	2	$2.88	$2.65		View More Details

Parts Description (12) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(12) TACHOMETER KIT	3PA-72638-0	3PA-72638-0	1		$0.00	BLACK	View More Details
(12) TACHOMETER KIT	3PB-72638-0	3PB-72638-0	1		$0.00	WHITE	View More Details

Parts Description (13) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(13) Steering Lock Kit (MFS9.9-20E)	3RS625000M	3RS625000M	1	$65.00	$59.80

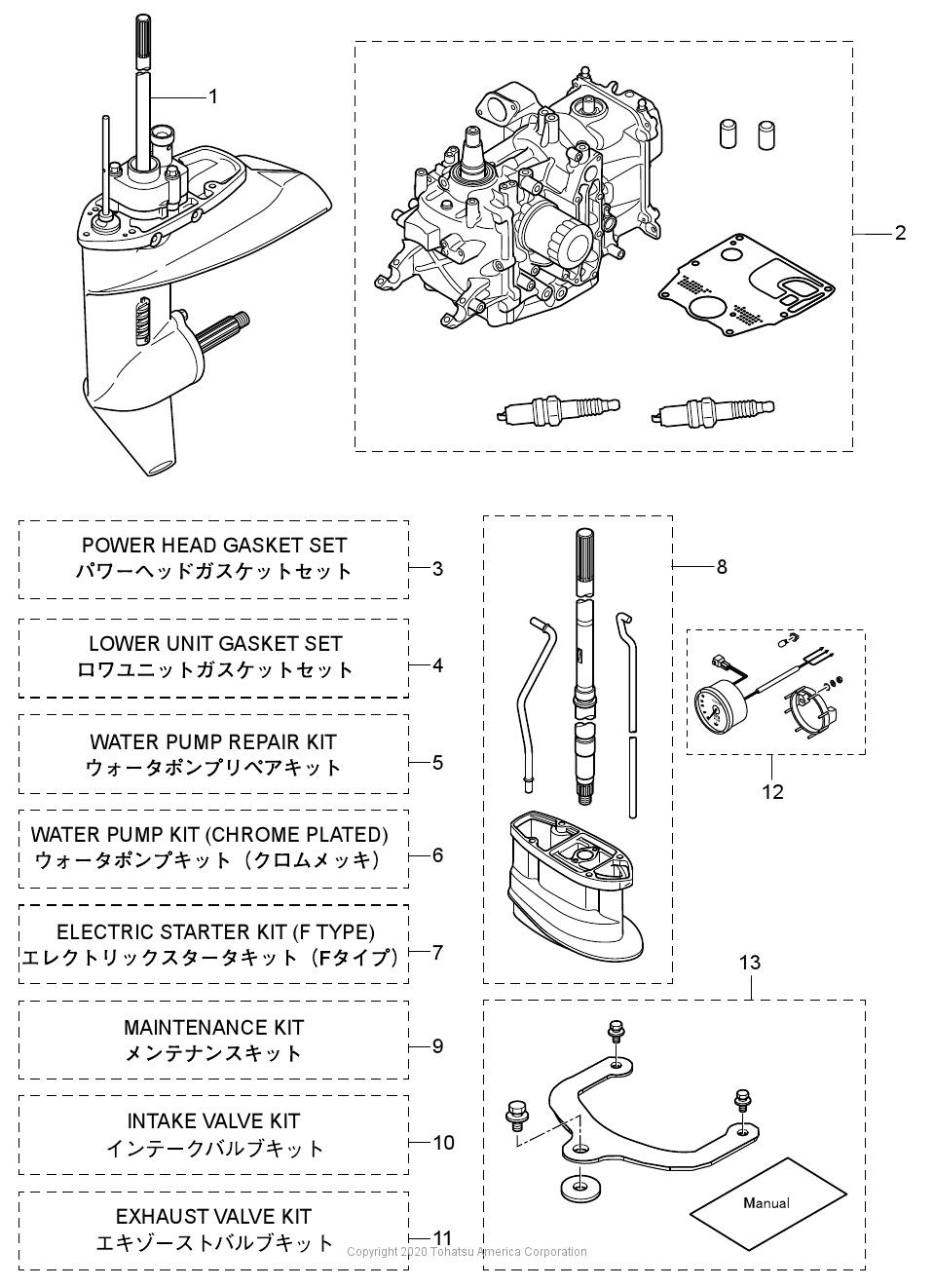

20. ASSEMBLY & KIT PARTS

Parts List
