20. ASSEMBLY & KIT PARTS

Click Here for Microfiche Usage Tip

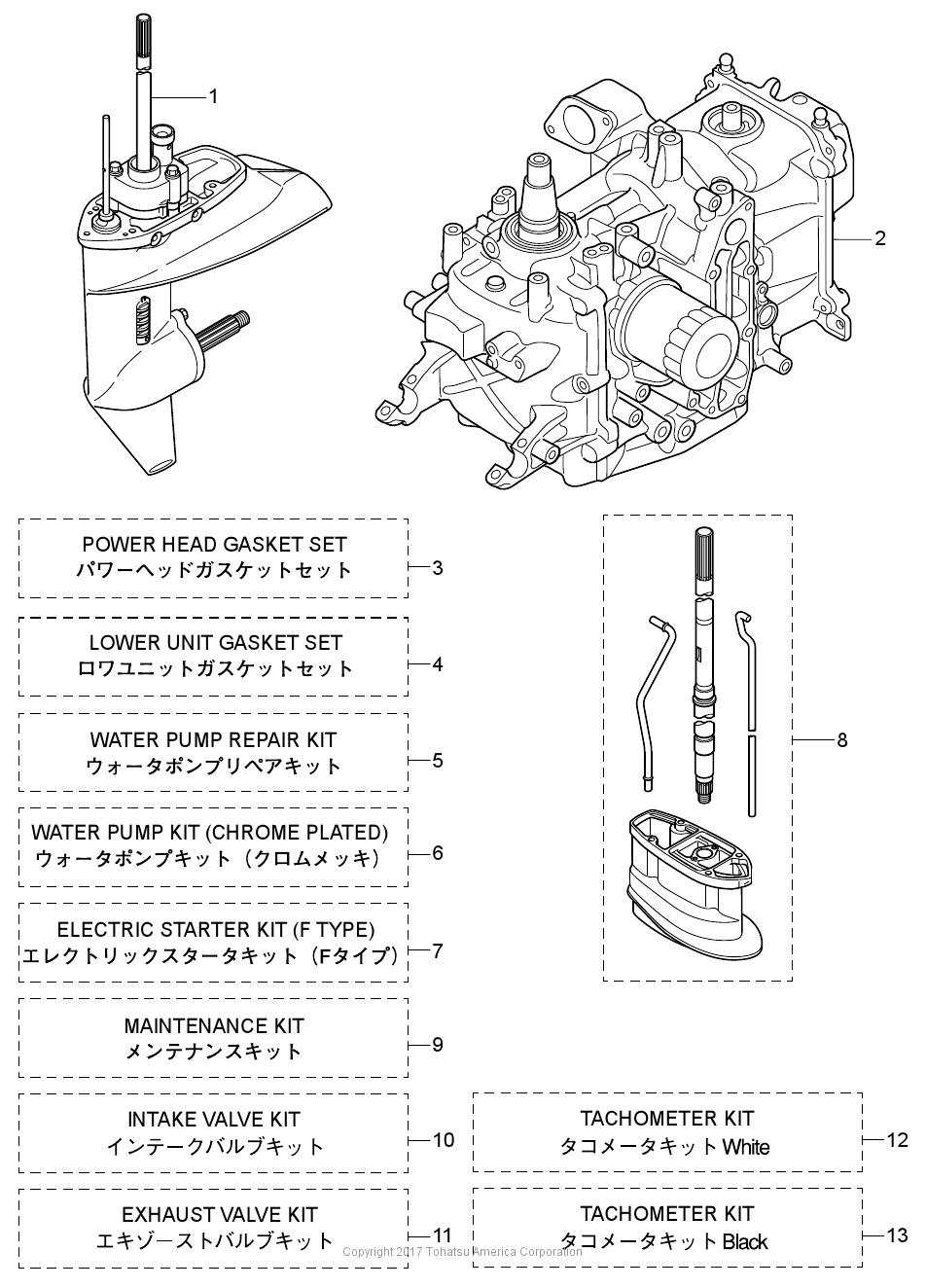

MFS9.9E ASSEMBLY & KIT PARTS(1) LOWER UNIT ASSY (S)(1) LOWER UINT ASSY(L)(1) LOWER UINT ASSY (UL)(2) ENGINE SHORT BLOCK KIT(3) POWER HEAD GASKET SET(3) CYLINDER HEAD GASKET(3) CYLINDER HEAD COVER GASKET(3) O-RING 3.1-24.4(3) EXHAUST COVER GASKET(3) THERMOSTAT CAP GASKET(3) ENGINE BASEMENT GASKET(3) OIL SEAL 32-44-9(3) OIL SEAL 36-50-7(3) CARBURETOR GASKET(3) O-RING 3.5-25.7(3) OIL PUMP GASKET(3) OIL SEAL 18-35-8(4) LOWER UNIT GASKET SET(4) GUIDE PLATE GASKET(4) GASKET 8.1-15-1(4) O-RING 2.4-59.6(4) OIL SEAL 17-30-9(4) OIL SEAL 13.8-26-9.5(4) PUMP CASE GASKET (LOWER)(4) O-RING(5) WATER PUMP REPAIR KIT(5) GUIDE PLATE GASKET(5) WATER PUMP IMPELLER(5) KEY(5) PUMP CASE LINER(5) WATER PUMP GUIDE PLATE(5) BOLT(6) WATER PUMP KIT (CHROME PLATED)(6) GUIDE PLATE GASKET(6) WATER PUMP IMPELLER(6) PUMP CASE LINER(6) WATER PUMP GUIDE PLATE(7) ELECTRIC STARTER KIT (F)(7) ALTERNATOR ASSY(7) FLYWHEEL W/RING GEAR(7) CORD ASSY(7) PROTECTOR ø10.7-320(7) PROTECTOR ø10.7-180(7) PLUG(7) BRACKET(7) STARTER SOLENOID(7) BOLT(7) RUBBER MOUNT(7) COLLAR(7) WASHER 6-16-1.5(7) BOLT(7) STARTER MOTOR ASSY(7) STARTER MOTOR BAND(7) DAMPER(7) BOLT(7) BOLT(7) RECTIFIER COMPLETE(7) BOLT(7) RECTIFIER BRACKET(7) BOLT(7) BOLT(7) BATTERY CABLE(7) BOLT(7) TERMINAL CAP 15.5-20-28(7) TERMINAL CAP 8-18-28(7) TERMINAL CAP 13-13-28(7) STARTER CABLE(7) NEUTRAL SWITCH(7) NEUTRAL SWITCH ACTUATOR(7) NEUTRAL SWITCH BRACKET(7) BOLT(7) MAIN SWITCH ASSY(8) EXTENSION HOUSING KIT (UL)(8) EXTENSION HOUSING UL(8) DOWEL PIN 6-12(8) BOLT 8-31(8) DRIVE SHAFT BUSHING(8) STOPPER(8) BOLT(8) WATER PIPE (UL)(8) DRIVE SHAFT (UL)(8) CAM ROD (UL)(9) MAINTENANCE KIT(9) ANODE(9) OIL FILTER(9) WATER PUMP IMPELLER(9) PUMP CASE LINER(9) KEY(9) WATER PUMP GUIDE PLATE(9) GUIDE PLATE GASKET(9) GASKET 8.1-15-1(9) WASHER 14.5-24-1(9) ANODE(9) SPLIT PIN 3-22(9) SPARK PLUG(DCPR6E)(10) INTAKE VALVE KIT(10) INTAKE VALVE(10) RETAINER(10) COTTER(11) EXHAUST VALVE KIT(11) EXHAUST VALVE(11) RETAINER(11) COTTER(12) TACHOMETER KIT(13) TACHOMETER KIT

Displaying 1 to 105 (of 105 products)

Parts List

2017 :: 9.9 HP :: 4 Stroke Tohatsu MFS9.9E (EFI) :: ASSEMBLY & KIT PARTS

Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed		 Order Quantity
(1) LOWER UNIT ASSY (S) 3RSQ873010 3RSQ873010 Superseded to 3RSQ873013 $827.43 1
(1) LOWER UINT ASSY(L) 3RSQ873020 3RSQ873020 Superseded to 3RSQ873023 $859.88 1
(1) LOWER UINT ASSY (UL) 3RSQ873040 3RSQ873040 $876.12 1
(2) ENGINE SHORT BLOCK KIT 3RSB870900 3RSB870900 $2,247.65 1 Sold Out View More Details
(3) POWER HEAD GASKET SET 3RS871210M 3RS871210M $76.41 1
(3) CYLINDER HEAD GASKET 3RS010050M 3RS010050M $26.25 1
(3) CYLINDER HEAD COVER GASKET 3RS010240M 3RS010240M $5.80 1
(3) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.39 1 Sold Out View More Details
(3) EXHAUST COVER GASKET 3RS023050M 3RS023050M $5.80 1
(3) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $2.07 1
(3) ENGINE BASEMENT GASKET 3RS013030M 3RS013030M $21.77 1
(3) OIL SEAL 32-44-9 3R3001210M 3R3-00121-0 $9.07 1
(3) OIL SEAL 36-50-7 3BJ001210M 3BJ-00121-0 $11.78 1
(3) CARBURETOR GASKET 3BJ020110M 3BJ-02011-0 $2.76 1 Sold Out View More Details
(3) O-RING 3.5-25.7 3H8624150M 345-62415-0 $1.18 1 Sold Out View More Details
(3) OIL PUMP GASKET 3RS076530M 3RS076530M $2.72 1
(3) OIL SEAL 18-35-8 3H8070250M 3H8-07025-0 $5.82 1
(4) LOWER UNIT GASKET SET 3RS873210M 3RS873210M $18.18 1
(4) GUIDE PLATE GASKET 3RS650290M 3RS650290M $2.21 1
(4) GASKET 8.1-15-1 332600060M 332-60006-0 Superseded to 332600061M $0.92 2
(4) O-RING 2.4-59.6 121320710M 121-32071-0 Superseded to 3C7014030M $6.76 1 Sold Out View More Details
(4) OIL SEAL 17 - 30 - 9 346650130M 346-65013-0 $9.12 1
(4) OIL SEAL 13.8-26-9.5 332602230M 332-60223-0 $8.61 1
(4) PUMP CASE GASKET (LOWER) 3RS650200M 3RS650200M $2.72 1 Sold Out View More Details
(4) O-RING 3RS660210M 3RS660210M $0.92 1
(5) WATER PUMP REPAIR KIT 3RS873220M 3RS873220M $37.93 1
(5) GUIDE PLATE GASKET 3RS650290M 3RS650290M $2.21 1
(5) WATER PUMP IMPELLER 3LD650210M 3LD650210M $12.98 1 Sold Out View More Details
(5) KEY 3RS650220M 3RS650220M Superseded to 3RS650221M $4.23 1
(5) PUMP CASE LINER 350650111M 350-65011-1 $11.74 1
(5) WATER PUMP GUIDE PLATE 3RS650250M 3RS650250M $2.97 1
(5) BOLT 9101E35652M 910113-5652 $3.11 4
(6) WATER PUMP KIT (CHROME PLATED) 3RS652310M 3RS652310M $50.89 1 Sold Out View More Details
(6) GUIDE PLATE GASKET 3RS650290M 3RS650290M $2.21 1
(6) WATER PUMP IMPELLER 3LD650210M 3LD650210M $12.98 1 Sold Out View More Details
(6) PUMP CASE LINER (CHROME PLATED) 362652380M 362-65238-0 $0.00 1 Sold Out View More Details
(6) WATER PUMP GUIDE PLATE 3RS650250M 3RS650250M $2.97 1
(7) Electric Starter Kit (F) 3RS763000M 3RS763000M Superseded to 3RS763008M $906.57 1 Sold Out View More Details
(7) ALTERNATOR ASSY 3RT060230M 3RT060230M $120.20 1
(7) FLYWHEEL W/RING GEAR 3RT061910M 3RT061910M $203.60 1 Sold Out View More Details
(7) CORD ASSY 3RT761100M 3RT761100M $155.72 1 Sold Out View More Details
(7) PROTECTOR ø 10.7-320 3BJ061330M 3BJ-06133-0 $0.00 1 Sold Out View More Details
(7) PROTECTOR ø 10.7-180 3BA061330M 3BA-06133-0 $2.71 1
(7) PLUG 3RS010470M 3RS010470M $10.95 1
(7) BRACKET 3RS069010M 3RS069010M $33.08 1
(7) STARTER SOLENOID 3H8760400M 3H8-76040-0 $72.29 1
(7) BOLT 9101030625M 910113-0625 $1.01 3
(7) BOLT 9101035610M 910103-5610 Superseded to 9101E35610M $1.10 2
(7) BOLT 9101035612M 910103-5612 Superseded to 9101E35612M $1.15 1 Sold Out View More Details
(7) BOLT 9101035612M 910103-5612 Superseded to 9101E35612M $1.15 1 Sold Out View More Details
(7) BOLT 9101035612M 910103-5612 Superseded to 9101E35612M $1.15 2 Sold Out View More Details
(7) BOLT 9101035612M 910103-5612 Superseded to 9101E35612M $1.15 2 Sold Out View More Details
(7) BOLT 9101035616M 910103-5616 Superseded to 9101E35616M $1.22 1
(7) BOLT 9101035620M 910103-5620 Superseded to 9101E35620M $1.39 2
(7) BOLT 9101035825M 910103-5825 $2.02 2
(7) RUBBER MOUNT 3KY069200M 3KY069200M $5.55 3 Sold Out View More Details
(7) COLLAR 6.1-16-12.2 3RS760790M 3RS760790M $2.47 3
(7) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 3
(7) STARTER MOTOR ASSY 3RS760100M 3RS760100M Superseded to 3GF760101M $525.93 1
(7) STARTER MOTOR BAND 3RS760090M 3RS760090M $7.73 1
(7) RUBBER STARTER MOTOR 3C8760070M 3C8-76007-0 $3.62 1
(7) RECTIFIER COMPLETE 3RS760600M 3RS760600M $75.04 1 Sold Out View More Details
(7) RECTIFIER BRACKET 3RS761630M 3RS761630M $9.06 1
(7) BATTERY CABLE 3BH761200M 3BH-76120-0 $69.99 1
(7) TERMINAL CAP 3BJ761450M 3BJ-76145-0 $2.90 1
(7) TERMINAL CAP 3Y0761450M 3Y0-76145-0 $2.40 1
(7) TERMINAL CAP 3AA761450M 3AA-76145-0 $2.40 1
(7) STARTER CABLE 3RS761410M 3RS761410M $27.01 1
(7) NEUTRAL SWITCH 3NV760800M 3NV760800M $21.86 1
(7) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 Superseded to 3RS760830M $4.35 1
(7) NEUTRAL SWITCH BRACKET 3RS760810M 3RS760810M Superseded to 3RS760811M $4.28 1
(7) MAIN SWITCH 3AA760260M 3AA-76026-0 $14.91 1
(8) EXTENSION HOUSING KIT (UL) 3RSQ873140 3RSQ873140 Superseded to 3RSQ873141 $620.64 1
(8) EXTENSION HOUSING UL 3RSQ611100 3RSQ611100 $290.86 1 Sold Out View More Details
(8) DOWEL PIN 6-12 3AB011110M 3AB-01111-0 $2.76 2
(8) BOLT 8-31 3BJ600010M 3BJ600010M $2.77 4 Sold Out View More Details
(8) DRIVE SHAFT BUSHING 3BJ600030M 3BJ-60003-0 $47.41 1
(8) BUSHING STOPPER 3V1643320M 3V1-64332-0 $5.55 1
(8) BOLT 9101E35612M 910103-5612 $1.15 2
(8) WATER PIPE (UL) 3RS651200M 3RS651200M $37.32 1
(8) DRIVE SHAFT (UL) 3RS643030M 3RS643030M $221.38 1
(8) CAM ROD (UL) 3RS660140M 3RS660140M $18.01 1
(9) MAINTENANCE KIT 3RS875000M 3RS-87500-0 $0.00 1 Sold Out View More Details
(9) ANODE 3KY602180M 3KY602180M $7.30 1
(9) ANODE 3P0602180M 3P0-60218-0 $3.23 1 Sold Out View More Details
(9) OIL FILTER 3BJ076150M 3BJ076150M Superseded to 3R0076150M $12.60 1
(9) WATER PUMP IMPELLER 3LD650210M 3LD650210M $12.98 1 Sold Out View More Details
(9) PUMP CASE LINER 350650111M 350-65011-1 $11.74 1
(9) KEY 3RS650220M 3RS650220M Superseded to 3RS650221M $4.23 1
(9) WATER PUMP GUIDE PLATE 3RS650250M 3RS650250M $2.97 1
(9) GUIDE PLATE GASKET 3RS650290M 3RS650290M $2.21 1
(9) GASKET 8.1-15-1 332600060M 332-60006-0 Superseded to 332600061M $0.92 2
(9) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.88 1
(9) SPLIT PIN 3 – 22 9515030322M 951503-0322 $0.88 1
(9) SPARK PLUG 970111103M 9701-1-1103 Superseded to 970101103M $6.96 2
(10) INTAKE VALVE KIT 3RS078950M 3RS078950M Superseded to 3RS078951M $21.62 1
(10) INTAKE VALVE 3RS079010M 3RS079010M $17.12 1
(10) RETAINER 3V1072210M 3V1-07221-0 $4.31 1
(10) COTTER 3H6072230M 3H6-07223-0 Superseded to 3KY079230M $2.65 2
(11) EXHAUST VALVE KIT 3RS078960M 3RS078960M Superseded to 3RS078961M $23.58 1
(11) EXHAUST VALVE 3RS079020M 3RS079020M $19.30 1
(11) RETAINER 3V1072210M 3V1-07221-0 $4.31 1
(11) COTTER 3H6072230M 3H6-07223-0 Superseded to 3KY079230M $2.65 2
(12) TACHOMETER KIT 3VT726380M 3VT-72638-0 WHITE $127.15 1
(13) TACHOMETER KIT 3ZC726380M 3ZC-72638-0 BLACK $127.15 1 Sold Out View More Details
Displaying 1 to 105 (of 105 products)
