23. ASSEMBLY & KIT PARTS : East Marine, Genuine OEM Tohatsu & Nissan Outboard Parts

Parts Description (1) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(1) LOWER UNIT ASSY (S)	3BHQ873012	3BHQ873012	1	$934.65	$859.88	FOR TRANSOM "S" / Superseded to 3BHQ873013
(1) LOWER UNIT ASSY (L)	3BHQ873022	3BHQ873022	1	$952.30	$876.12	FOR TRANSOM "L" / Superseded to 3BHQ873023

Parts Description (2) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(2) ENGINE SHORT BLOCK KIT	3SAB870900	3SAB870900	1	$2,056.50	$1,891.98	Superseded to 3SAB870902

Parts Description (3) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(3) POWER HEAD GASKET SET	3BJ871210M	3BJ-87121-0	1	$118.11	$108.66
(3) CYLINDER HEAD GASKET	3BJ010050M	3BJ-01005-0	1	$28.83	$26.52
(3) CYLINDER HEAD COVER GASKET	3BJ010240M	3BJ-01024-0	1	$10.63	$9.78
(3) O-RING 3.1-24.4	3R0074220M	3R0-07422-0	1	$1.51	$1.39	OIL FILLER CAP
(3) EXHAUST COVER GASKET	3R3023050M	3R3-02305-0	1	$8.15	$7.50
(3) THERMOSTAT CAP GASKET	346010320M	346-01032-0	1	$2.25	$2.07
(3) ANODE CAP GASKET	3R3011440M	3R3-01144-0	1	$2.33	$2.14
(3) BREATHER CHAMBER COVER GASKET	3R3074321M	3R3074320M	1	$5.31	$4.89
(3) OIL PAN GASKET	3V9074021M	3V9-07402-1	1	$37.23	$34.25
(3) OIL SEAL 32-44-9	3R3001210M	3R3-00121-0	1	$9.86	$9.07	LOWER
(3) OIL SEAL 36-50-7	3BJ001210M	3BJ-00121-0	1	$12.80	$11.78	UPPER
(3) INTAKE MANIFOLD GASKET	3BJ021040M	3BJ-02104-0	1	$5.13	$4.72
(3) CARBURETOR GASKET	3BJ020110M	3BJ-02011-0	2	$3.00	$2.76		View More Details
(3) SEAL RING 2.4-35	3BJ024190M	3BJ-02419-0	1	$3.06	$2.82	CARBURETOR
(3) O-RING 3.5-25.7	3H8624150M	345-62415-0	1	$1.28	$1.18	FUEL PUMP	View More Details
(3) O-RING 1.5-15.5	3H8076350M	3H8-07635-0	2	$3.00	$2.76	OIL PUMP
(3) OIL PUMP O-RING	3H8076390M	3H8-07639-0	1	$1.95	$1.79	OIL PUMP
(3) O-RING 1.5-10.7	3H8076320M	3H8-07632-0	1	$2.33	$2.14	OIL PUMP
(3) O-RING 1.5-8.5	3H8076310M	3H8-07631-0	1	$2.43	$2.24	OIL PUMP
(3) OIL SEAL 18-35-8	3H8070250M	3H8-07025-0	1	$6.33	$5.82	CAMSHAFT

Parts Description (4) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(4) LOWER UNIT GASKET SET	398873213M	398873212M	1	$25.13	$23.12		View More Details
(4) GUIDE PLATE GASKET	3FS650290M	3FS-65029-0	1	$3.15	$2.90
(4) GASKET 8.1-15-1	332600060M	332-60006-0	3	$1.00	$0.92	Superseded to 332600061M
(4) O-RING 2.4-59.6	121320710M	121-32071-0	1	$7.35	$6.76	PROPELLER SHAFT HOUSING / Superseded to 3C7014030M	View More Details
(4) OIL SEAL 17 - 30 - 9	346650130M	346-65013-0	1	$9.91	$9.12	PROPELLER SHAFT
(4) OIL SEAL 13.8-26-9.5	332602230M	332-60223-0	1	$9.36	$8.61	PUMP CASE (LOWER)
(4) O-RING 3.5 - 36	336624150M	336-62415-0	2	$1.75	$1.61	PUMP CASE (LOWER) / CAM ROD BUSHING
(4) O-RING 2.4 - 5.8	332660210M	332-66021-0	2	$1.63	$1.50	CAM ROD

Parts Description (5) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(5) WATER PUMP REPAIR KIT	362873221M	362873221M	1	$38.13	$35.08
(5) GUIDE PLATE GASKET	3FS650290M	3FS-65029-0	1	$3.15	$2.90
(5) WATER PUMP IMPELLER	334650210M	334-65021-0	1	$13.23	$12.17
(5) WATER PUMP IMPELLER KEY	350650220M	350-65022-0	1	$4.60	$4.23	Superseded to 3RS650221M
(5) PUMP CASE LINER	350650111M	350-65011-1	1	$12.76	$11.74
(5) WATER PUMP GUIDE PLATE	350650250M	350-65025-0	1	$2.98	$2.74
(5) BOLT	9101E35652M	910113-5652	3	$3.38	$3.11

Parts Description (6) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(6) WATER PUMP KIT (CHROME PLATED)	362652311M	362652311M	1	$38.13	$35.08	Superseded to 362873221M
(6) GUIDE PLATE GASKET	3FS650290M	3FS-65029-0	1	$3.15	$2.90
(6) WATER PUMP IMPELLER	334650210M	334-65021-0	1	$13.23	$12.17
(6) PUMP CASE LINER (CHROME PLATED)	362652380M	362-65238-0	1		$0.00	CHROME PLATED	View More Details
(6) PUMP GUIDE PLATE (CHROME PLATED)	362652390M	362-65239-0	1		$0.00	CHROME PLATED	View More Details

Parts Description (7) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(7) ELECTRIC STARTER KIT (F)	3SB763000M	3SB763000M	1	$800.75	$736.69	FOR MF->EF
(7) STARTER MOTOR	3C8760101M	3C8-76010-1	1	$571.66	$525.93	Superseded to 3GF760101M
(7) STARTER MOTOR BAND	3BJ760090M	3BJ-76009-0	1	$10.15	$9.34		View More Details
(7) RUBBER STARTER MOTOR	3C8760070M	3C8-76007-0	1	$3.93	$3.62
(7) BOLT	9101035610M	910103-5610	3	$1.20	$1.10	Superseded to 9101E35610M
(7) BOLT	9101035612M	910103-5612	1	$1.25	$1.15	Superseded to 9101E35612M	View More Details
(7) BOLT	9101035612M	910103-5612	2	$1.25	$1.15	BATTERY CABLE / STARTER SOLENOID / Superseded to 9101E35612M	View More Details
(7) BOLT	9101035616M	910103-5616	1	$1.33	$1.22	Superseded to 9101E35616M
(7) BOLT	9101035625M	910103-5625	2	$1.71	$1.57	Superseded to 9101E35625M
(7) BOLT	9101035818M	910103-5818	2	$1.90	$1.75		View More Details
(7) BOLT	9101035825M	910103-5825	2	$2.20	$2.02
(7) STARTER SOLENOID	3BJ760400M	3BJ-76040-0	1	$73.65	$67.76
(7) CABLE TERMINAL HOLDER	3BJ062811M	3BJ-06281-0	1	$17.63	$16.22
(7) COLLAR 6-8-6	174350120M	174-35012-0	1	$3.33	$3.06
(7) COVER	3BJ069021M	3BJ069021M	1	$8.58	$7.89
(7) WIRING DIAGRAM DECAL	3BJ720281M	3BJ-72028-1	1	$4.68	$4.31
(7) STARTER SOLENOID BRACKET	3BJ760430M	3BJ-76043-0	1	$17.13	$15.76
(7) RECTIFIER COMPLETE	3BJ760601M	3BJ-76060-0	1	$88.05	$81.01
(7) CLAMP 6.5-47.5P	309069720M	309-06972-0	2	$2.40	$2.21	Superseded to 3PR069720M
(7) BAND MOUNT	3BJ761640M	3BJ-76164-0	1		$0.00		View More Details
(7) LEAD WIRE BAND 203	3Z0843980M	3Z0-84398-0	1		$0.00		View More Details
(7) NEUTRAL SWITCH	3NV760800M	3NV760800M	1	$23.76	$21.86
(7) MAIN SWITCH	3AA760260M	3AA-76026-0	1	$16.21	$14.91
(7) BATTERY CABLE	3BH761200M	3BH-76120-0	1	$76.08	$69.99
(7) PROTECTOR ø 10.7-320	3BJ061330M	3BJ-06133-0	1		$0.00		View More Details
(7) TERMINAL CAP	3BJ761450M	3BJ-76145-0	1	$3.15	$2.90
(7) STARTER CORD (L=270)	3R3761410M	3R3-76141-0	1	$28.95	$26.63
(7) PROTECTOR ø 10.7-180	3BA061330M	3BA-06133-0	1	$2.95	$2.71
(7) TERMINAL CAP	3Y0761450M	3Y0-76145-0	1	$2.61	$2.40	STARTER MOTOR
(7) TERMINAL CAP	3AA761450M	3AA-76145-0	1	$2.61	$2.40	STARTER SOLENOID
(7) FUSE CABLE	3V1760660M	3V1-76066-0	1	$38.16	$35.11		View More Details
(7) FUSE CABLE	3BJ760660M	3BJ-76066-0	1	$51.35	$47.24
(7) FUSE HOLDER BRACKET	3BJ760640M	3BJ-76064-0	1	$9.31	$8.57
(7) LEAD WIRE BAND 135	3BJ843980M	3BJ-84398-0	2	$2.58	$2.37
(7) PROTECTOR ø 10.7-75	3BH061330M	3BH-06133-0	1		$0.00		View More Details

Parts Description (8) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(8) EXTENSION HOUSING KIT (UL)	3BHQ873140	3BHQ87314-0	1	$562.95	$517.91	FOR TRANSOM "L"->"UL" / Superseded to 3BHQ873141
(8) EXTENSION HOUSING UL	3BJQ611100	3BJQ61110-0	1	$205.51	$189.07		View More Details
(8) STUD BOLT	3BJ611110M	3BJ-61111-0	4	$3.01	$2.77	Superseded to 3BJ600010M	View More Details
(8) DRIVE SHAFT BUSHING	3BJ600030M	3BJ-60003-0	1	$51.53	$47.41
(8) BUSHING STOPPER	3V1643320M	3V1-64332-0	1	$6.03	$5.55
(8) BOLT	9101E35612M	910103-5612	2	$1.25	$1.15
(8) LOCK PLATE	3Z0652030M	3Z0-65203-0	1		$0.00		View More Details
(8) RUBBER MOUNT 13-2.5	3V1652040M	3V1-65204-0	1	$2.81	$2.59		View More Details
(8) SCREW	9215E30510M	9215E3-0510	1	$0.95	$0.87	Superseded to 9215030510M
(8) WATER PIPE UL	3BJ651200M	3BJ-65120-0	1	$26.43	$24.32
(8) DRIVE SHAFT UL	3BK643030M	3BK-64303-0	1	$190.11	$174.90	Superseded to 3SA643030M
(8) CAM ROD (UL)	3BH660140M	3BH-66014-0	1		$0.00		View More Details
(8) SPRING PN 3-12	9514070312M	951407-0312	1	$1.00	$0.92
(8) SPRING PIN	9514072512M	951407-2512	1	$1.01	$0.93
(8) WASHER 8.1 -16 -1.5	3P0662330M	3P0-66233-0	4	$1.50	$1.38
(8) NUT	9301E30800M	9301E3-0800	4	$2.31	$2.13	Superseded to 9304030800M	View More Details

Parts Description (9) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(9) CARBURETOR REPAIR KIT	3BJ871220M	3BJ-87122-0	1	$65.05	$59.85	15/20PS	View More Details
(9) O-RING	3BJ032430M	3BJ-03243-0	2	$2.58	$2.37		View More Details
(9) O-RING	3V1031160M	3V1-03116-0	1	$1.75	$1.61		View More Details
(9) FLOAT VALVE	3V1031471M	3V1-03147-1	1	$17.48	$16.08
(9) FLOAT ARM PIN	3C8031260M	3C8-03126-0	1	$2.78	$2.56
(9) FLOAT	3C8031250M	3C8-03125-0	1	$16.65	$15.32		View More Details
(9) SCREW	9215030408M	921503-0408	1	$0.86	$0.79	15/20PS
(9) SCREW	9215030410M	921503-0410	3	$0.53	$0.49	15/20PS
(9) SCREW	9225030413M	922503-0413	6	$1.48	$1.36	15/20PS CARBURETOR COVER / FLOAT CHAMBER
(9) FLOAT CHAMBER GASKET	3BA031210M	3BA-03121-0	1	$12.80	$11.78	15/20PS
(9) DRAIN SCREW GASKET	3AA031930M	3AA-03193-0	1	$3.85	$3.54	DIAPHRAM COVER
(9) DRAIN SCREW GASKET	3BJ031930M	3BJ-03193-0	1	$1.85	$1.70	15/20PS / FLOAT CHAMBER
(9) CARBURETOR COVER GASKET	3BJ031820M	3BJ-03182-0	1	$8.45	$7.77	15/20PS
(9) FUEL FILTER	3BJ022340M	3BJ-02234-0	1	$3.33	$3.06

Parts Description (10) Order the whole kit, or only the parts you need.

Parts Name	Tohatsu Part Number	Original Part Number	Quantity Needed	MSRP price	Sales price	Remarks
(10) ALTITUDE ADJUSTMENT KIT	3BH102300M	3BH-10230-0	1	$64.41	$59.26	15PS

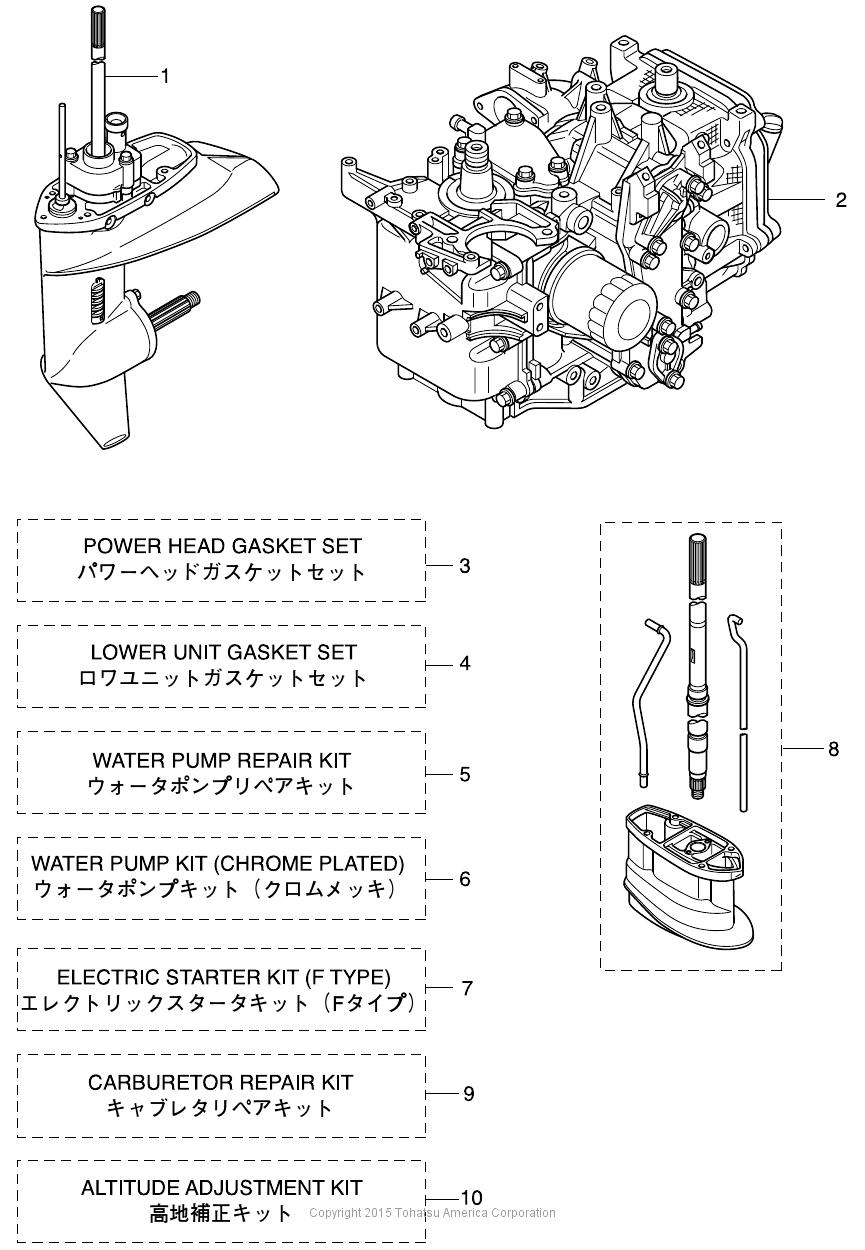

23. ASSEMBLY & KIT PARTS

Parts List
