17. ASSEMBLY & KIT PARTS

Click Here for Microfiche Usage Tip

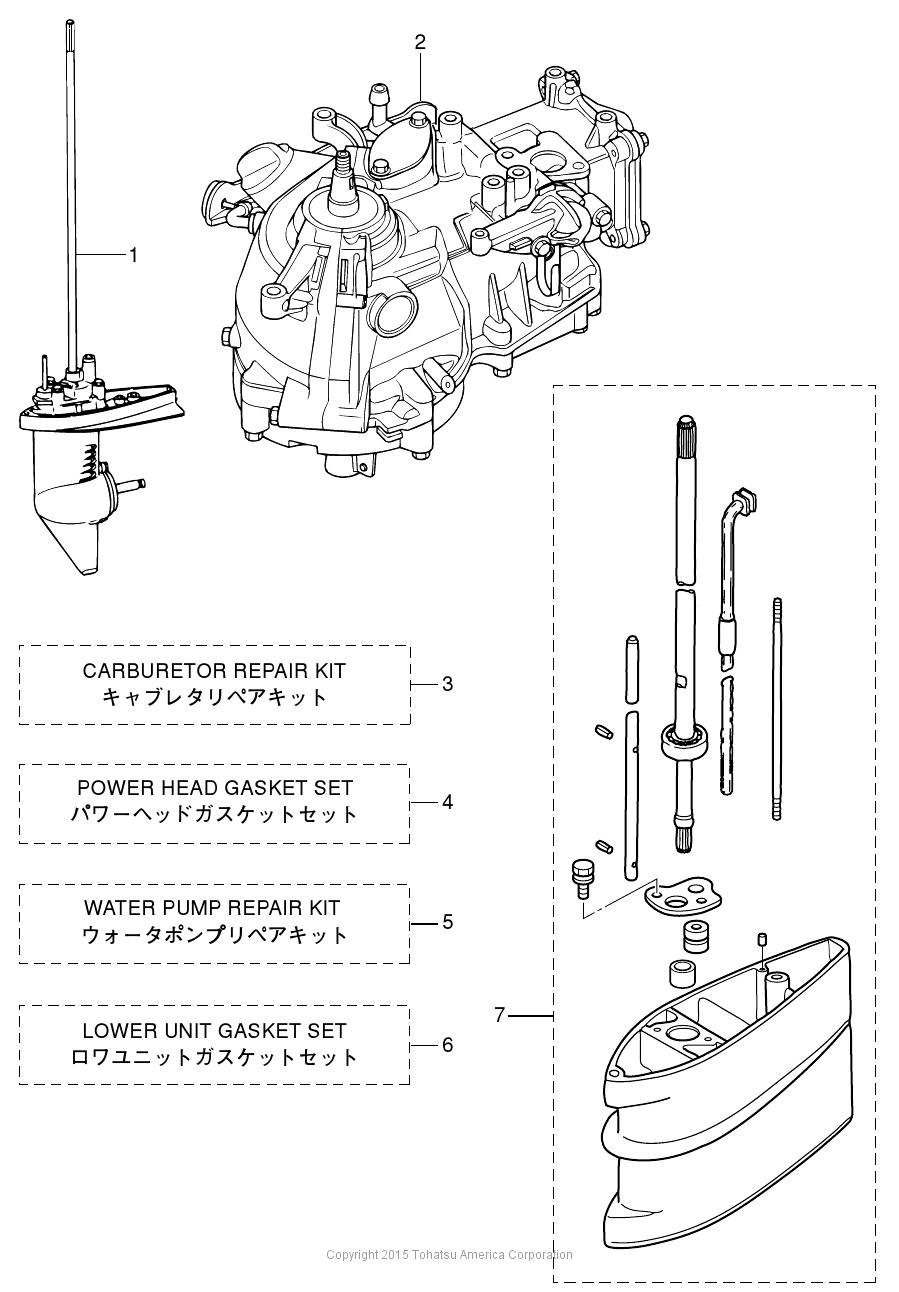

MFS3.5B ASSEMBLY & KIT PARTS(1) LOWER UNIT ASSY (S)(1) LOWER UNIT ASSY (L)(2) ENGINE SHORT BLOCK KIT(3) CARBURETOR REPAIR KIT(3) FLOAT(3) FLOAT VALVE(3) CLIP(3) FLOAT ARM PIN(3) FLOAT CHAMBER O-RING(3) SCREW(3) O-RING(3) CARBURETOR GASKET(4) POWER HEAD GASKET SET(4) CYLINDER HEAD COVER GASKET(4) THERMOSTAT CAP GASKET(4) GASKET(4) OIL SEAL 20-35-7(4) O-RING(4) CARBURETOR GASKET(4) INTAKE MANIFOLD GASKET(4) OIL PAN GASKET(4) O-RING 3.1-24.4(4) OIL SEAL 10.1-20-7(4) O-RING 2.4-35.2(4) DRIVE SHAFT HOUSING GASKET(5) WATER PUMP REPAIR KIT(5) WATER PUMP IMPELLER(5) KEY ø2-11(5) PUMP CASE LINER(5) PUMP CASE GASKET(5) WATER PUMP GUIDE PLATE(5) GUIDE PLATE GASKET(6) LOWER UNIT GASKET SET(6) GASKET 8.1-15-1(6) WATER PUMP IMPELLER(6) KEY ø2-11(6) PUMP CASE GASKET(6) GUIDE PLATE GASKET(6) OIL SEAL 10-22-8(6) PUMP CASE GASKET (LOWER)(6) OIL SEAL 12-24-8(6) O-RING 3.2-47(6) O-RING 2.5-4.9(6) O-RING 2.4-9.5(7) EXTENSION HOUSING KIT (L)(7) EXTENSION HOUSING(7) DRIVE SHAFT BUSHING(7) STOPPER(7) GROMMET 13-2(7) BOLT(7) STUD 6-171(7) BOLT 6-14-6-4(7) NUT(7) WASHER(7) DRIVE SHAFT ASSY (L)(7) CAM ROD (L)(7) SPRING PIN 3-8(7) WATER PIPE ASSY (L)(7) DOWEL PIN 6-12

Displaying 1 to 59 (of 59 products)

Parts List

2015 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5B :: ASSEMBLY & KIT PARTS

Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed		 Order Quantity
(1) LOWER UNIT ASSY (S) 3BMQ873011 3BMQ87301-1 FOR TRANSOM "S" / Superseded to 3BMQ873013 $421.85 1
(1) LOWER UNIT ASSY (L) 3BMQ873021 3BMQ87302-1 FOR TRANSOM "L" / Superseded to 3BMQ873023 $438.06 1
(2) ENGINE SHORT BLOCK KIT 3GTB870903 3GTB87090-2 Superseded to 3GUB870900 $819.67 1 Sold Out View More Details
(3) FLOAT 3GT032310M 3GT-03231-0 $27.00 1
(3) CARBURETOR REPAIR KIT 3GT871221M 3GT871221M $46.28 1
(3) CARBURETOR GASKET 3H6020110M 3H6-02011-0 $2.07 2 Sold Out View More Details
(3) FLOAT CHAMBER GASKET 3H6032220M 3H6-03222-0 $6.35 1
(3) FLOAT ARM PIN 3H6032320M 3H6-03232-0 $2.30 1
(3) FLOAT VALVE 3H6032400M 3H6-03240-0 $10.87 1
(3) CLIP 3H6032440M 3H6-03244-0 $3.25 1 Sold Out View More Details
(3) DRAIN SCREW O-RING 3H6032930M 3H6-03293-0 $1.91 1
(3) SCREW 9225036412M 922503-6412 $1.57 2 Sold Out View More Details
(4) OIL SEAL 20-35-7 3AB001210M 3AB-00121-0 CRANKSHAFT $13.21 2
(4) CYLINDER HEAD COVER GASKET 3AB010241M 3AB-01024-0 $5.96 1
(4) THERMOSTAT CAP GASKET 3AB010320M 3AB-01032-0 $2.48 1
(4) OIL SEAL 10.1-20-7 3AB012150M 3AB-01215-0 DRIVESHAFT $11.96 2
(4) INTAKE MANIFOLD GASKET 3AB021040M 3AB-02104-0 $3.59 1
(4) OIL PAN GASKET 3AB074020M 3AB-07402-0 $18.89 1
(4) BREATHER CHAMBER COVER GASKET 3AB074320M 3AB-07432-0 $2.31 1
(4) DRIVE SHAFT HOUSING GASKET 3AB610120M 3AB-61012-0 $9.23 1
(4) POWER HEAD GASKET SET 3AB871210M 3AB-87121-0 $62.68 1
(4) CARBURETOR GASKET 3H6020110M 3H6-02011-0 $2.07 2 Sold Out View More Details
(4) DRAIN SCREW O-RING 3H6032930M 3H6-03293-0 CARBURETOR $1.91 1
(4) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 OIL FILLER CAP $1.39 1 Sold Out View More Details
(4) O-RING 2.4-35.2 3V1020120M 3V1-02012-0 CRANKCASE HEAD $1.25 1
(5) WATER PUMP IMPELLER 369650211M 369-65021-1 $7.96 1 Sold Out View More Details
(5) WATER PUMP IMPELLER KEY 369650220M 369-65022-0 $1.61 1
(5) WATER PUMP GUIDE PLATE 3AB650250M 3AB-65025-0 $5.20 1
(5) WATER PUMP REPAIR KIT 3AB873220M 3AB-87322-0 $23.90 1
(5) PUMP CASE LINER 3F0650110M 3F0-65011-0 $9.84 1
(5) PUMP CASE GASKET (UPPER) 3F0650180M 3F0-65018-0 $2.21 1
(5) PUMP GUIDE PLATE GASKET 3F0650290M 3F0-65029-0 $2.21 1
(6) O-RING 2.4-9.5 301660230M 301-66023-0 BUSHING $1.10 1
(6) OIL SEAL 12-24-8 309601110M 309-60111-0 PROPELLER SHAFT $7.39 1
(6) GASKET 8.1-15-1 332600060M 332-60006-0 Superseded to 332600061M $0.92 2
(6) O-RING 3.2-47 345650150M 345-65015-0 PROPELLER SHAFT HOUSING $1.61 1 Sold Out View More Details
(6) WATER PUMP IMPELLER 369650211M 369-65021-1 $7.96 1 Sold Out View More Details
(6) WATER PUMP IMPELLER KEY 369650220M 369-65022-0 $1.61 1
(6) O-RING 2.5-4.9 369660211M 369-66021-1 CAM ROD $1.36 1 Sold Out View More Details
(6) OIL SEAL 10-22-8 3F0602230M 3F0-60223-0 PUMP CASE LOWER $8.24 1
(6) PUMP CASE GASKET (UPPER) 3F0650180M 3F0-65018-0 $2.21 1
(6) PUMP CASE GASKET (LOWER) 3F0650200M 3F0-65020-0 $2.74 1
(6) PUMP GUIDE PLATE GASKET 3F0650290M 3F0-65029-0 $2.21 1
(6) LOWER UNIT GASKET SET 3F0873210M 3F0-87321-0 $26.80 1 Sold Out View More Details
(7) GROMMET 13.2 172360080M 172-36008-0 $2.58 1
(7) DOWEL PIN 6-12 3AB011110M 3AB-01111-0 $2.76 1
(7) BOLT 3AB600011M 3AB-60001-0 Superseded to 3GU600010M $3.27 1
(7) DRIVE SHAFT BUSHING 3AB600030M 3AB-60003-0 $57.27 1 Sold Out View More Details
(7) DRIVE SHAFT L 3AB643070M 3AB-64307-0 Superseded to 3F0643020M $132.94 1
(7) DRIVE SHAFT BUSHING STOPPER 3AB643320M 3AB-64332-0 $5.66 1
(7) WATER PIPE L 3AB651920M 3AB-65192-0 $20.43 1
(7) EXTENSION HOUSING L 3ABQ611000 3ABQ61100-0 $127.97 1 Sold Out View More Details
(7) EXTENSION HOUSING KIT (L) 3ABQ873121 3ABQ873121 FOR TRANSOM "S"->"L" / Superseded to 3ABQ873123 $283.64 1
(7) STUD BOLT 6-171 3F0611011M 3F0-61101-1 $15.99 1 Sold Out View More Details
(7) CAM ROD L 3F0660130M 3F0-66013-0 $0.00 1 Sold Out View More Details
(7) BOLT 9101E35612M 910103-5612 $1.15 2
(7) NUT 9301E30600M 9301E3-0600 $0.55 1
(7) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(7) SPRING PIN 3-8 9514070308M 951407-0308 $0.97 2
Displaying 1 to 59 (of 59 products)
