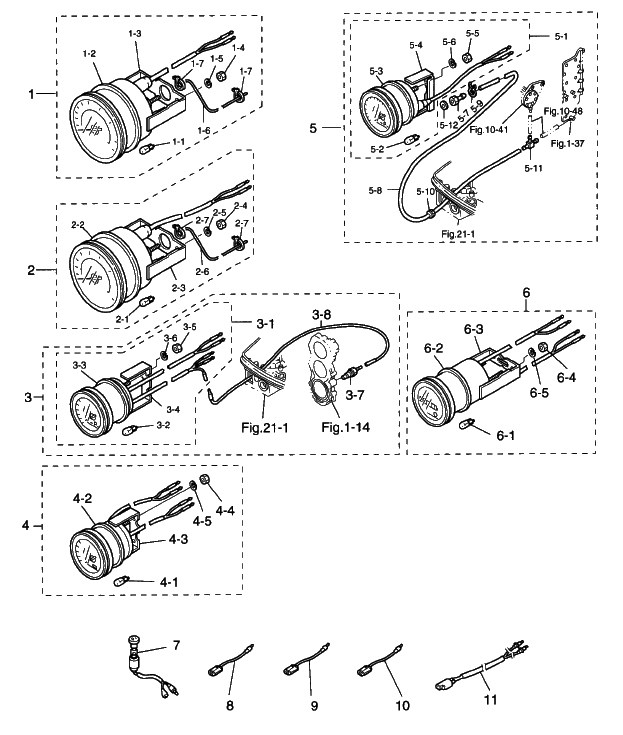

26. OPTIONAL PARTS (1)

Click Here for Microfiche Usage Tip
(1) SPEEDOMETER 75MPH(1-1) BULB, METER 12V-1.7W(1-2) DAMPER, METER(1-3) PLATE, FITTING(1-4) NUT(1-5) SPRING WASHER(1-6) TUBE, SPEEDOMETER(1-7) BAND, SPEEDOMETER(1-7) BAND, SPEEDOMETER(2) SPEEDOMETER 50MPH(2-1) BULB, METER 12V-1.7W(2-2) DAMPER, METER(2-3) PLATE, FITTING(2-4) NUT(2-5) SPRING WASHER(2-6) TUBE, SPEEDOMETER(2-7) BAND, SPEEDOMETER(2-7) BAND, SPEEDOMETER(3) WATER TEMPERATURE METER KIT(3-1) WATER TEMPERATURE METER ASSY(3-2) BULB, METER 12V-1.7W(3-3) DAMPER, METER(3-4) PLATE, FITTING(3-5) NUT(3-6) SPRING WASHER(3-7) SENDER, WATER TEMPERATURE(3-8) LEAD WIRE, WATER TEMPERATURE METER(4) VOLTMETER ASSY(4-1) BULB, METER 12V-1.7W(4-2) DAMPER, METER(4-3) PLATE, FITTING(4-4) NUT(4-5) SPRING WASHER(5) WATER PRESSURE METER KIT(5-1) WATER PRESSURE METER ASSY(5-2) BULB, METER 12V-1.7W(5-3) DAMPER, METER(5-4) PLATE, FITTING(5-5) NUT(5-6) SPRING WASHER(5-7) NIPPLE, WATER PRESSURE METER(5-8) PIPE, WATER PRESSURE METER(5-9) CLIP, o10(5-10) GROMMET(5-11) PIPE JOINT(5-12) GASKET, 2-8-1(6) HOURMETER ASSY(6-1) BULB, METER 12V-1.7W(6-2) DAMPER, METER(6-3) PLATE, FITTING(6-4) NUT(6-5) SPRING WASHER(7) SWITCH, METER LAMP(8) ASSIST CORD, BLUE(9) ASSIST CORD, BLACK(10) ASSIST CORD, RED(11) LEAD WIRE, TACHOMETER



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: OPTIONAL PARTS (1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 $0.00 1 Sold Out View More Details
(1-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(1-2) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(1-3) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(1-4) NUT 9302030500M 930203-0500 $0.60 2
(1-5) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(1-6) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 $27.66 1 Sold Out View More Details
(1-7) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 $2.07 2 Sold Out View More Details
(2) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 $0.00 1 Sold Out View More Details
(2-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(2-2) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(2-3) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(2-4) NUT 9302030500M 930203-0500 $0.60 2
(2-5) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(2-6) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 $27.66 1 Sold Out View More Details
(2-7) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 $2.07 2 Sold Out View More Details
(3) WATER TEMPERATURE METER KIT 3E0725260M 3E0-72526-0 $0.00 1 Sold Out View More Details
(3-1) WATER TEMPERATURE METER ASSY 3E0725970M 3E0-72597-0 $0.00 1 Sold Out View More Details
(3-2) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(3-3) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(3-4) FITTING PLATE 3B7726620M 3B7-72662-0 $19.58 1 Sold Out View More Details
(3-5) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(3-6) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(3-7) SENDER WATER TEMPERATURE 3B7725140M 3B7-72514-0 $32.23 1
(3-8) LEAD WIRE WATER TEMPERATURE METER 3B7725180M 3B7-72518-0 $0.00 1 Sold Out View More Details
(4) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(4-1) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(4-2) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(4-3) FITTING PLATE 3B7726620M 3B7-72662-0 $19.58 1 Sold Out View More Details
(4-4) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(4-5) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(5) WATER PRESSURE METER KIT 3E0725270M 3E0-72527-0 $0.00 1 Sold Out View More Details
(5-1) WATER PRESSURE METER 3E0725980M 3E0-72598-0 $0.00 1 Sold Out View More Details
(5-2) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(5-3) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(5-4) FITTING PLATE 3B7726630M 3B7-72663-0 $19.58 1 Sold Out View More Details
(5-5) NUT 9302030500M 930203-0500 $0.60 2
(5-6) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(5-7) WATER PRESSURE METER NIPPLE 3B7726410M 3B7-72641-0 $0.00 1 Sold Out View More Details
(5-8) PIPE WATER PRESSURE METER 981056000M 9810-5-6000 $11.41 1
(5-9) CLIP ø10 338022150M 338-02215-0 $1.41 1
(5-10) GROMMET 345671930M 345-67193-0 $3.00 1
(5-11) PIPE JOINT 353700130M 353-70013-0 $2.19 1
(5-12) GASKET 2-8-1 121331590M 121-33159-0 $0.97 1
(6) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(6-1) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(6-2) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(6-3) FITTING PLATE 3B7726640M 3B7-72664-0 $19.58 1 Sold Out View More Details
(6-4) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(6-5) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(7) METER LAMP SWITCH 353725211M 353-72521-1 $19.47 1
(8) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 0
(9) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 0
(10) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 0
(11) TACHOMETER LEAD CABLE 361725390M 361-72539-0 FOR F TYPE $50.65 1
