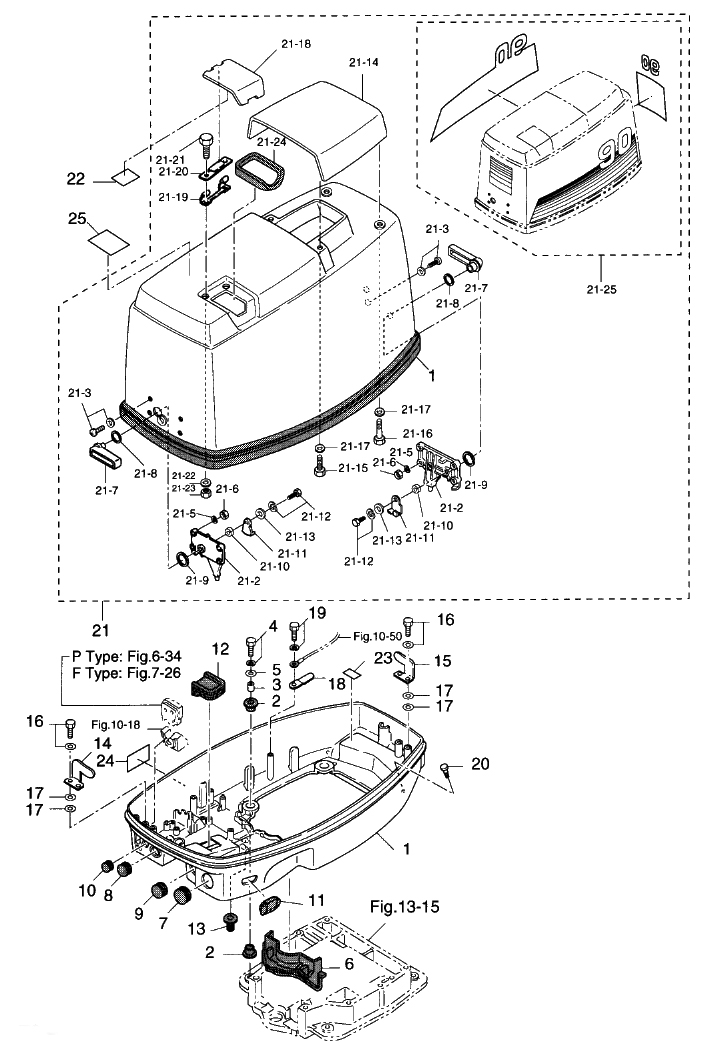

23. MOTOR COVER

Click Here for Microfiche Usage Tip
(1) MOTOR COVER LOWER(2) MOUNT RUBBER(2) MOUNT RUBBER(3) SPACER, 6.2-9-15.7(4) BOLT(5) WASHER, 6.5-21-1(6) GROMMET A, LOWER COVER(7) GROMMET B, LOWER COVER(8) GROMMET, 20-7.2(9) GROMMET, 22-3(10) GROMMET, 17-2.7(11) GROMMET, POWER TRIM & TILT CORD(12) GROMMET H, LOWER COVER(13) GROMMET, SHIFT ROD(14) COVER STAY (FRONT)(15) COVER (REAR)(16) BOLT(16) BOLT(17) WASHER(17) WASHER(18) CLAMP, 6.5-47.5P(19) BOLT(20) DRAIN PLUG, MOTOR COVER LOWER(21) MOTOR COVER UPPER ASSY(21) MOTOR COVER UPPER ASSY(21) MOTOR COVER UPPER ASSY(21-1) SEAL RUBBER, MOTOR COVER UPPER(21-2) LOCATING BRACKET(21-2) LOCATING BRACKET(21-3) SCREW(21-3) SCREW(21-5) SPRING WASHER(21-5) SPRING WASHER(21-6) NUT(21-6) NUT(21-7) HOOK LEVER(21-7) HOOK LEVER(21-8) O-RING, 1.5-9.5(21-8) O-RING, 1.5-9.5(21-9) SEAL RING(21-9) SEAL RING(21-10) BUSHING, 12-14-12(21-10) BUSHING, 12-14-12(21-11) COVER HOOK(21-11) COVER HOOK(21-12) BOLT(21-12) BOLT(21-13) WASHER, 6-16-1.5(21-13) WASHER, 6-16-1.5(21-14) TILT HANDLE(21-15) BOLT(21-16) BOLT(21-17) WASHER, 6-16-1.5(21-17) WASHER, 6-16-1.5(21-18) FILLER LID(21-19) HINGE, FILLER LID(21-20) SPRING, FILLER LID(21-21) BOLT(21-22) WASHER(21-23) NUT(21-24) SEAL RUBBER, FILLER LID(21-25) DECAL SET(21-25) DECAL SET(21-25) DECAL SET(22) LABEL, OIL(23) LABEL, SPARK PLUG(23) LABEL, RESISTANCE SPARK PLUG(24) LABEL, RADIO INTERFERENCE(25) CAUTION LABEL (CE-A)



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: MOTOR COVER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR COVER LOWER 353S671006 353S67100-6 $0.00 1 Sold Out View More Details
(2) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.78 8 Sold Out View More Details
(3) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.89 4
(4) BOLT 9101036630M 910103-6630 $1.39 4
(5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.50 4
(6) GROMMET A LOWER COVER 3B7671640M 3B7-67164-0 $0.00 1 Sold Out View More Details
(7) GROMMET B LOWER COVER 353671650M 353-67165-0 $5.93 1
(8) GROMMET 20-7.2 353671660M 353-67166-0 $4.70 1
(9) GROMMET 22-3 345671610M 345-67161-0 $5.92 1
(10) GROMMET 17-2.7 345671170M 345-67117-0 $2.48 1
(11) GROMMET POWER TRIM & TILT CORD 3B7771560M 3B7-77156-0 $4.95 1
(12) GROMMET H LOWER COVER 3B7670830M 3B7-67083-0 $0.00 1 Sold Out View More Details
(13) GROMMET 17 - 3 345662260M 345-66226-0 $4.19 1
(14) COVER STAY (FRONT) 353675120M 353-67512-0 $0.00 1 Sold Out View More Details
(15) COVER STAY (REAR) 353675130M 353-67513-0 $16.27 1
(16) BOLT 9101036618M 910103-6618 $0.86 4
(17) WASHER 9401030600M 940103-0600 $0.75 8
(18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.21 1
(19) BOLT 9101036612M 910103-6612 $1.24 1
(20) DRAIN PLUG MOTOR COVER LOWER 338671790M 338-67179-0 $2.90 1
(21) MOTOR COVER UPPER ASSY 3B7S675100 3B7S67510-0 FOR AUTOMIXING / TOHATSU $621.75 1 Sold Out View More Details
(21) MOTOR COVER UPPER ASSY 3B8N675105 3B8N67510-5 FOR AUTOMIXING / NISSAN $0.00 1 Sold Out View More Details
(21) MOTOR COVER UPPER ASSY 3B7S67500-0 NA FOR PREMIXING / TOHATSU $0.00 1 Sold Out View More Details
(21-1) SEAL RUBBER MOTOR COVER UPPER 353675010M 353-67501-0 $37.72 1
(21-2) LOCATING BRACKET 353675171M 353-67517-1 $0.00 2 Sold Out View More Details
(21-3) SCREW 9217035520M 921703-5520 $0.41 8
(21-5) SPRING WASHER 9413030500M 941303-0500 $0.97 8
(21-6) NUT 9301110500M 930111-0500 $0.00 8 Sold Out View More Details
(21-7) HOOK LEVER 353S671410 353S67141-0 $24.62 2
(21-8) O-RING 1.5-9.5 338624350M 338-62435-0 $1.50 2
(21-9) SEAL RING 353671471M 353-67147-1 $2.48 2
(21-10) BUSHING 12-14-12 353671050M 353-67105-0 $1.50 2
(21-11) COVER HOOK 353671421M 353-67142-1 $11.79 2
(21-12) BOLT 9101036616M 910103-6616 $1.27 2
(21-13) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 2
(21-14) TILT HANDLE 3B7S67521-0 NA $0.00 1 Sold Out View More Details
(21-15) BOLT 9101030630M 910103-0630 $1.30 2
(21-16) BOLT 9101030616M 910113-0616 $1.04 2
(21-17) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 4
(21-18) FILLER LID 3B7S672100 3B7S67210-0 $0.00 1 Sold Out View More Details
(21-19) FILLER LID HINGE 3B7672110M 3B7-67211-0 $3.27 1
(21-20) SPRING FILLER LID 3B7672120M 3B7-67212-0 $15.99 1
(21-21) BOLT 9101030614M 910103-0614 $0.83 2
(21-22) WASHER 9401030600M 940103-0600 $0.75 2
(21-23) NUT 9301030600M 930113-0600 $0.90 2
(21-24) SEAL RUBBER FILLER LID 3B7672130M 3B7-67213-0 $4.69 1
(21-25) DECAL SET 3B7878020M 3B7-87802-0 AUTOMIXING / TOHATSU $0.00 1 Sold Out View More Details
(21-25) DECAL SET 3B8878015M 3B8878015M AUTOMIXING / NISSAN $0.00 1 Sold Out View More Details
(21-25) DECAL SET 3B7878010M 3B7-87801-0 PREMIXING / TOHATSU $0.00 1 Sold Out View More Details
(22) LABEL OIL 3B7720410M 3B7-72041-0 AUTOMIXING $0.00 1 Sold Out View More Details
(23) LABEL SPARK PLUG 360720250 360-72025-0 $0.00 1 Sold Out View More Details
(23) LABEL RESISTANCE SPARK PLUG 3A3720260 3A3-72026-0 $0.00 1 Sold Out View More Details
(24) LABEL RADIO INTERFERENCE 3A3-72027-0 NA $0.00 1 Sold Out View More Details
(25) CAUTION DECAL A 3C7721800M 3C7721800M $2.25 1
