19. POWER TRIM & TILT ASSEMBLY

Click Here for Microfiche Usage Tip

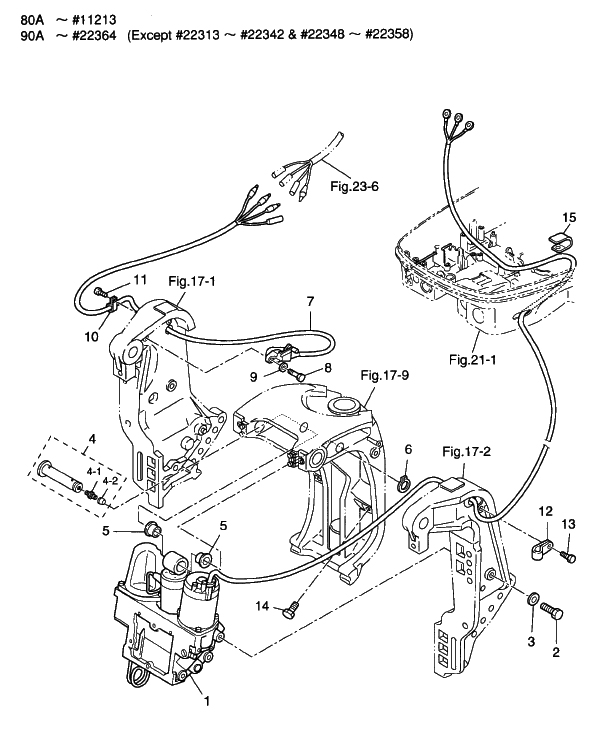

(1) POWER TRIM & TILT ASSY(2) BOLT(3) WASHER(4) CYLINDER PIN SET(4-1) GREASE NIPPLE(4-2) CAP, GREASE NIPPLE(5) BUSHING, 18-24-20(5) BUSHING, 18-24-20(6) C-RING, D=18(7) TRIM SENDER(8) BOLT(9) WASHER, 6-16-1.5(10) CLAMP, 6-9.5(11) BOLT(12) CLAMP, 6.5-14(13) BOLT(14) BOLT, 12-20(15) CLAMP, 9-12U



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: POWER TRIM & TILT ASSEMBLY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) POWER TRIM & TILT ASSY 3B7S771503 3B7S77150-3 $0.00 1 Sold Out View More Details
(2) BOLT 9101031045M 910103-1045 $4.15 6
(3) WASHER 9401031000M 940103-1000 $1.50 6
(4) CYLINDER PIN SET 3B7770721M 3B7-77072-1 $0.00 1 Sold Out View More Details
(4-1) GREASE FITTING 344671770M 344-67177-0 $2.56 1 Sold Out View More Details
(4-2) CAP GREASE NIPPLE 344671780M 344-67178-0 $0.00 1 Sold Out View More Details
(5) BUSHING 18-24-20 3B7770750M 3B7-77075-0 $0.00 2 Sold Out View More Details
(6) C-RING D=18 9451031800M 945103-1800 $1.93 1
(7) TRIM SENDER 3F3725740M 3F3-72574-0 FOR P TYPE $184.05 1
(8) BOLT 9101030620M 910103-0620 FOR P TYPE $1.04 2
(9) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR P TYPE $1.41 2
(10) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR P TYPE $1.41 1
(11) BOLT 9101030612M 910113-0612 FOR P TYPE $0.84 1
(12) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(13) BOLT 9101030612M 910113-0612 $0.84 1
(14) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.76 2 Sold Out View More Details
(15) CLAMP 9-12U 345069710M 345-06971-0 $5.55 1
