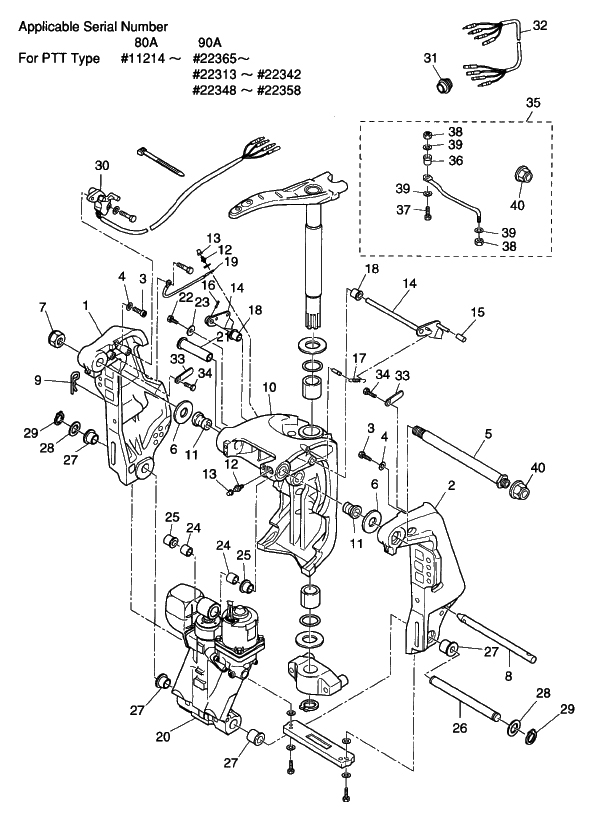

18. BRACKET (FOR NEW PTT)

Click Here for Microfiche Usage Tip
(1) STERN BRACKET R(2) STERN BRACKET L(3) BOLT(3) BOLT(4) WASHER(4) WASHER(5) BRACKET BOLT ASSY(6) WASHER, 25.7-50-1(6) WASHER, 25.7-50-1(7) NYLON NUT, 7/8(8) THRUST ROD(9) PIN, THRUST ROD(10) SWIVEL BRACKET ASSY(11) BUSHING, 25.6-28.6-40(11) BUSHING, 25.6-28.6-40(12) GREASE NIPPLE(12) GREASE NIPPLE(13) CAP, GREASE NIPPLE(13) CAP, GREASE NIPPLE(14) TILT STOPPER ASSY(14) TILT STOPPER ASSY(15) GRIP, TILT STOPPER(16) SPRING PIN, 3.5-16(17) SPRING, TILT STOPPER(18) COLLAR, 10.2-12-12(18) COLLAR, 10.2-12-12(19) EARTH WIRE(20) POWER TRIM & TILT ASSY(21) CYLINDER PIN UPPER(22) BOLT(23) WASHER, 6.5-23-1.5(24) BUSHING, 18-24-19(24) BUSHING, 18-24-19(25) BUSHING, 18-20-20.5(25) BUSHING, 18-20-20.5(26) CYLINDER PIN LOWER(27) BUSHING, 22-25.4-23.5(27) BUSHING, 22-25.4-23.5(27) BUSHING, 22-25.4-23.5(27) BUSHING, 22-25.4-23.5(28) WASHER, 22.6-30-2(28) WASHER, 22.6-30-2(29) C-RING, D=22(29) C-RING, D=22(30) TRIM SENDER(31) GROMMET, 17-3(32) EXTENSION CORD, TRIM SENDER(33) CLAMP, 6.5-47.5P(33) CLAMP, 6.5-47.5P(34) BOLT(34) BOLT(35) DRAG LINK H ASSY(36) SPACER, DRAG LINK H(37) BOLT, 3/8-55(38) NYLON NUT, 3/8(38) NYLON NUT, 3/8(39) WASHER, 9.6-18-2(39) WASHER, 9.6-18-2(39) WASHER, 9.6-18-2(40) SEAL RING, DRAG LINK(40) SEAL RING, DRAG LINK



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: BRACKET (FOR NEW PTT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STERN BRACKET R 3E0S621120 3E0S62112-0 $183.61 1 Sold Out View More Details
(2) STERN BRACKET L 3E0S621130 3E0S62113-0 $188.86 1 Sold Out View More Details
(3) BOLT 9102031020M 9102E3-1020 $3.11 2
(4) WASHER 9402031000M 940203-1000 $1.04 2 Sold Out View More Details
(5) BRACKET BOLT ASSY 3E0621910M 3E0-62191-0 $107.87 1 Sold Out View More Details
(6) WASHER 25.7-50-1 3E0621160M 3E0621160M $1.52 2
(7) NYLON NUT 7/8 346621240M 346-62124-0 $21.14 1
(8) THRUST ROD 3E0621210M 3E0-62121-0 $0.00 1 Sold Out View More Details
(9) R-PIN D=10 3B7621291M 3B7-62129-1 $10.81 1
(10) SWIVEL BRACKET ASSY 3E0S623130 3E0S62313-0 W/TILT STOPPER SPRING PIN $0.00 1 Sold Out View More Details
(11) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.31 2
(12) GREASE FITTING 344671770M 344-67177-0 $2.56 4 Sold Out View More Details
(13) CAP GREASE NIPPLE 344671780M 344-67178-0 $0.00 4 Sold Out View More Details
(14) TILT STOPPER ASSY 3E0S624310 3E0S62431-0 $53.45 1
(15) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(16) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(17) SPRING TILT STOPPER 3E0624730M 3E0-62473-0 $4.63 1 Sold Out View More Details
(18) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(19) GROUND CABLE 3C8621580M 3C8-62158-0 $5.75 1 Sold Out View More Details
(20) POWER TRIM & TILT ASSY 3E0S771500 3E0S77150-0 $3,254.48 1
(21) CYLINDER PIN (UPPER) 3C8770710M 3C8-77071-0 $10.81 1 Sold Out View More Details
(22) BOLT 9101030612M 910113-0612 $0.84 1
(23) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 1
(24) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.07 2
(25) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.31 2
(26) CYLINDER PIN (LOWER) 3E0771010M 3E0-77101-0 $49.09 1
(27) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.31 4
(28) WASHER 22.6-30-2 346624120M 346-62412-0 $2.08 2
(29) C-RING D=22 9451032200M 945103-2200 $1.85 2
(30) TRIM SENSOR 3F3725741M 3F3-72574-1 $184.05 1
(31) GROMMET 17 - 3 345662260M 345-66226-0 $3.91 1 Sold Out View More Details
(32) TRIM SENSOR EXTENSION CORD 3F3725731M 3F3-72573-1 $135.75 1
(33) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(34) BOLT 9101030612M 910113-0612 $0.84 2
(35) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $154.19 1
(36) SPACER 3E0849140M 3E0-84914-0 $7.32 1
(37) BOLT 3/8-55 3B7849170M 3B7-84917-0 $11.28 1
(38) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(39) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(40) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
