17. BRACKET

Click Here for Microfiche Usage Tip

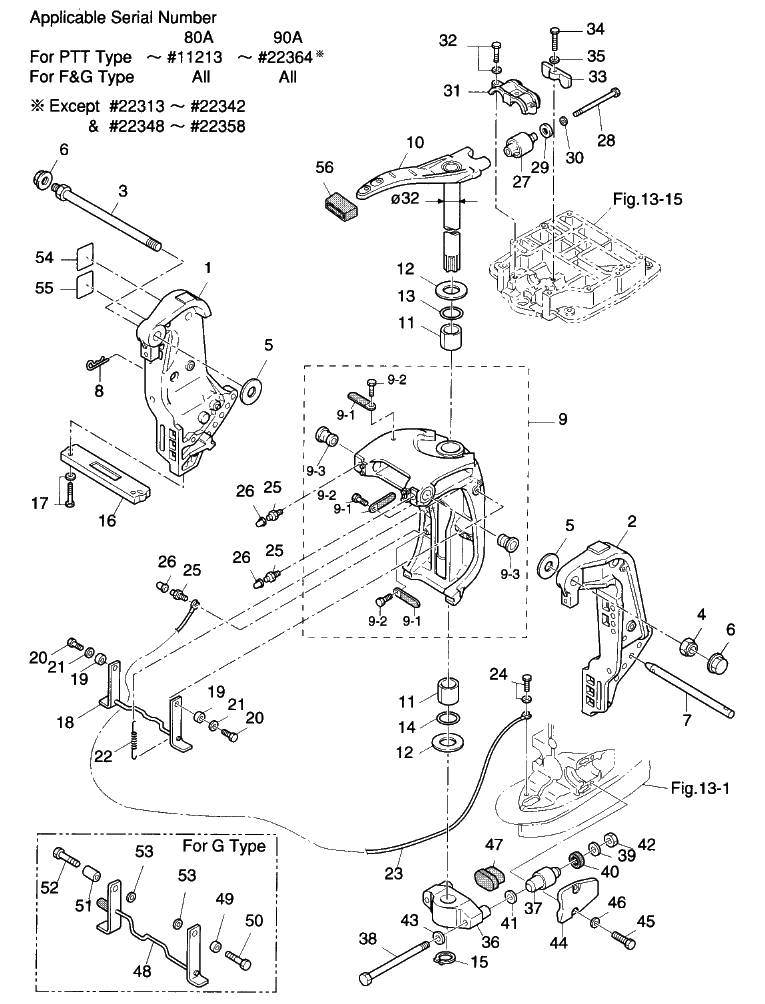

(1) STERN BRACKET R(2) STERN BRACKET L(3) BRACKET BOLT ASSY(4) NYLON NUT, 7/8(5) WASHER, 22.6-50-1(5) WASHER, 22.6-50-1(6) CAP, BRACKET BOLT(6) CAP, BRACKET BOLT(7) THRUST ROD(8) PIN, THRUST ROD(9) SWIVEL BRACKET ASSY(9) SWIVEL BRACKET ASSY, GAS ASSIST TILT(9-1) CLAMP, 6.5-47.5P(9-1) CLAMP, 6.5-47.5P(9-1) CLAMP, 6.5-47.5P(9-2) BOLT(9-2) BOLT(9-2) BOLT(9-3) BUSHING, 22.3-25.4-39(9-3) BUSHING, 22.3-25.4-39(10) STERRING SHAFT ASSY(11) BUSHING, 32-40-45(11) BUSHING, 32-40-45(12) THRUST PLATE(12) THRUST PLATE(13) SEAL RING, STEERING SHAFT(14) O-RING, 4.5-32(15) C-RING, D=32(16) ANODE, STERN BRACKET(17) BOLT(18) TILT STOPPER(19) COLLAR, 10.5-13.8-7.6(19) COLLAR, 10.5-13.8-7.6(20) BOLT(20) BOLT(21) WASHER(21) WASHER(22) SPRING, TILT STOPPER(23) GROUND WIRE(24) BOLT(25) GREASE NIPPLE(25) GREASE NIPPLE(25) GREASE NIPPLE(26) CAP, GREASE NIPPLE(26) CAP, GREASE NIPPLE(26) CAP, GREASE NIPPLE(27) UPPER MOUNT RUBBER(28) BOLT, UPPER MOUNT RUBBER(29) DAMPER RUBBER, 21-36-5(30) WASHER, 11.5-32-3(31) CAP, UPPER MOUNT RUBBER(32) BOLT(33) DAMPER, UPPER MOUNT RUBBER(34) BOLT(35) WASHER, 6-16-1.5(36) MOUNT BRACKET(37) LOWER MOUNT RUBBER(38) BOLT(39) WASHER, 13-34-3(40) DAMPER RUBBER, 21-36-5(41) WASHER, 12.2-25-2(42) NUT(43) WASHER(44) CAP, LOWER MOUNT RUBBER(45) BOLT(46) WASHER(47) DAMPER RUBBER(48) TILT STOPPER, GAS ASSIST MANUAL TILT(49) COLLAR, 10.5-13.8-7.6(50) BOLT P1.25(51) COLLAR, 10.5-13.8-14.5(52) BOLT P1.25(53) WASHER(53) WASHER(54) LABEL, REVERSE LOCK(55) LABEL, REVERSE LOCK(56) DAMPER RUBBER, STEERING BRACKET(56) DAMPER RUBBER B, STEERING BRACKET



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STERN BRACKET R 3B7S62112-1 NA $0.00 1 Sold Out View More Details
(2) STERN BRACKET L 3B7S62113-1 NA $0.00 1 Sold Out View More Details
(3) BRACKET BOLT ASSY 3B7621910M 3B7-62191-0 $0.00 1 Sold Out View More Details
(4) NYLON NUT 7/8 346621240M 346-62124-0 $21.14 1
(5) WASHER 22.6-50-1 3B7621160M 3B7-62116-0 $2.68 2
(6) CAP BRACKET BOLT 346621270M 346-62127-0 FOR F TYPE $2.31 2
(7) THRUST ROD 3B7621210M 3B7-62121-0 $43.73 1
(8) R-PIN D=10 3B7621291M 3B7-62129-1 $10.81 1
(9) SWIVEL BRACKET ASSY 3C7S623131 3C7S62313-1 FOR PTT TYPE $0.00 1 Sold Out View More Details
(9) SWIVEL BRACKET ASSY GAS ASSIST TILT 3F3S77613-0 NA FOR G TYPE $0.00 1 Sold Out View More Details
(9-1) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 3
(9-2) BOLT 9101030610M 910114-0610 $0.76 3
(9-3) BUSHING 22.3-25.4-39 3C7621260M 3C7-62126-0 $0.00 2 Sold Out View More Details
(10) STERRING SHAFT ASSY 3B7S620101 3B7S62010-1 $306.23 1
(11) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $7.59 2
(12) THRUST PLATE 3B7624230M 3B7-62423-0 $3.13 2
(13) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(14) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.00 1
(15) C-RING D=32 9451033200M 945103-3200 $2.01 1
(16) ANODE STERN BRACKET 3C7602181M 3C7-60218-1 $19.84 1
(17) BOLT 9101036630M 910103-6630 $1.30 2
(18) TILT STOPPER 3B7S624720 3B7S62472-0 FOR PTT TYPE $0.00 1 Sold Out View More Details
(19) COLLAR 10.5-13.8-7.6 3B7624570M 3B7-62457-0 FOR PTT TYPE $0.00 2 Sold Out View More Details
(20) BOLT 9101031025M 910103-1025 FOR PTT TYPE $3.64 2
(21) WASHER 9401031000M 940103-1000 FOR PTT TYPE $1.50 2
(22) SPRING TILT STOPPER 3B7624730M 3B7-62473-0 FOR PTT TYPE $0.00 1 Sold Out View More Details
(23) GROUND WIRE 3B7623960M 3B7-62396-0 $4.56 1
(24) BOLT 9101035612M 910103-5612 $1.07 1
(25) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(26) CAP GREASE NIPPLE 344671780M 344-67178-0 $0.00 3 Sold Out View More Details
(27) RUBBER MOUNT (UPPER) 3B7613010M 3B7-61301-0 $71.35 2
(28) RUBBER MOUNT BOLT (UPPER) 3B7613071M 3B7-61307-1 $10.12 2
(29) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(30) WASHER 11.5-32-3 3B7613350M 3B7-61335-0 $3.00 2
(31) CAP UPPER MOUNT RUBBER 3B7S613411 3B7S61341-1 90A #20995~ $44.07 1
(32) BOLT 9101036835M 910103-6835 $2.01 3
(33) DAMPER (UPPER) 3B7613390M 3B7-61339-0 $6.65 1
(34) BOLT 9101030625M 910113-0625 $0.95 1
(35) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 1
(36) MOUNT BRACKET 3B7S61411-0 NA $0.00 1 Sold Out View More Details
(37) LOWER MOUNT RUBBER 353613020M 353-61302-0 $55.20 2
(38) BOLT 353613212M 353-61321-2 $15.81 2
(39) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(40) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(41) WASHER 12.2-25-2 353613150M 353-61315-0 $3.20 2
(42) NUT 12-P1.5 3B7613240M 3B7-61324-0 $4.78 2
(43) WASHER 9402031200M 940203-1200 $2.10 2
(44) CAP LOWER MOUNT RUBBER 3B7S613420 3B7S61342-0 $0.00 2 Sold Out View More Details
(45) BOLT 9101030825M 910103-0825 $1.62 4
(46) WASHER 9402030800M 9402030800M $0.60 4
(47) DAMPER (LOWER) 353613360M 353-61336-0 $11.02 1 Sold Out View More Details
(48) TILT STOPPER GAS ASSIST MANUAL TILT 3B7S776151 3B7S77615-1 FOR G TYPE $0.00 1 Sold Out View More Details
(49) COLLAR 10.5-13.8-7.6 3B7624570M 3B7-62457-0 FOR G TYPE $0.00 1 Sold Out View More Details
(50) BOLT P1.25 911103-1025 NA FOR G TYPE $0.00 1 Sold Out View More Details
(51) COLLAR 10.5-13.8-14.5 3B7776120M 3B7-77612-0 FOR G TYPE $6.47 1 Sold Out View More Details
(52) BOLT P1.25 9111031035 911103-1035 FOR G TYPE $0.00 1 Sold Out View More Details
(53) WASHER 9401031000M 940103-1000 FOR G TYPE $1.50 2
(54) LABEL REVERSE LOCK 3B7-72047-1 NA FOR G TYPE $0.00 1 Sold Out View More Details
(55) LABEL REVERSE LOCK 3B7-72048-1 NA FOR JAPAN MARKET ONLY $0.00 1 Sold Out View More Details
(56) DAMPER RUBBER STEERING BRACKET 3B7620950M 3B7-62095-0 L=20MM / FOR TRANSOM L $4.19 1
(56) STEERING ARM DAMPER B 3B7620960M 3B7-62096-0 L=20MM / FOR TRANSOM XL $23.01 1 Sold Out View More Details
