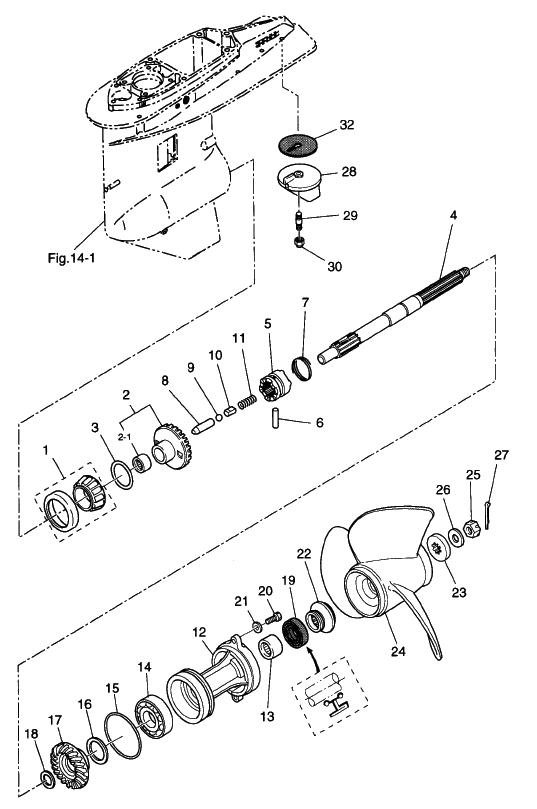

15. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) TAPER ROLLER BEARING, 30209(2) BEVEL GEAR A ASSY(2-1) NEEDLE BEARING, 25-32-26(3) SHIM, 47-57-0.15(3) SHIM, 47-57-0.1(4) PROPELLER SHAFT(5) CLUTCH(6) CLUTCH PIN(7) SNAP, CLUTCH PIN(8) PUSH ROD, CLUTCH(9) STEEL BALL, 9/16(10) SPRING HOLDER, CLUTCH(11) SPRING, CLUTCH(12) HOUSING, PROPELLER SHAFT(13) NEEDLE BEARING, 30-40-30(14) BALL BEARING, 6208(15) O-RING, 3.1-94.4(16) SHIM, 42-50-0.15(16) SHIM, 42-50-0.1(17) BEVEL GEAR C(18) WASHER, T=3.2(18) WASHER, T=3.0(18) WASHER, T=2.8(19) OIL SEAL, 30-50-12(20) BOLT, 8-30 PRECOATED(21) WASHER(22) THRUST HOLDER, PROPELLER(23) STOPPER, PROPELLER(24) PROPELLER A11(24) PROPELLER A13(24) PROPELLER A15(24) PROPELLER V1500(24) PROPELLER V1700(24) PROPELLER V1900(24) PROPELLER V2100(25) NUT, PROPELLER(26) WASHER, 17-32-3(27) SPLIT PIN, 3-25(28) TRIM TAB(29) STUD BOLT(30) NYLON NUT, 8P1.25(32) PACKING, TRIM TAB



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 30209 3C7602150M 3C7-60215-0 $65.99 1
(2) BEVEL GEAR A 3D8640100M 3D8-64010-0 90A #21080~ $216.83 1
(2-1) NEEDLE BEARING 25-32-26 3B7640110M 3B7-64011-0 $36.94 1
(3) SHIM 47-57-0.15 3B7640150M 3B7-64015-0 $0.93 0
(3) SHIM 47-57-0.1 3B7640160M 3B7-64016-0 $1.50 0
(4) PROPELLER SHAFT 3B7642110M 3B7-64211-0 $316.55 1
(5) CLUTCH 3C7642150M 3C7-64215-0 90A #21080~ $200.34 1
(6) CLUTCH PIN 3B7642180M 3B7-64218-0 $3.62 1
(7) CLUTCH PIN SNAP 3B7642191M 3B7-64219-1 FOR R&L ROTATION $5.55 1
(8) CLUTCH PUSH ROD 3B7642230M 3B7-64223-0 $0.00 1 Sold Out View More Details
(9) STEEL BALL 9/16 9650021609M 965002-1609 $2.02 1
(10) CLUTCH SPRING RETAINER 3B7642220M 3B7-64222-0 $0.00 1 Sold Out View More Details
(11) CLUTCH SPRING 346642210M 346-64221-0 $1.71 1
(12) HOUSING PROPELLER SHAFT 3B7S601011 3B7S60101-1 $86.66 1
(13) NEEDLE BEARING 30-40-30 3B7602110M 3B7-60211-0 $35.37 1
(14) BEARING 6208 960106208M 9601-0-6208 $32.92 1
(15) O-RING 3.1-94.4 3B7601030M 3B7-60103-0 $4.86 1
(16) SHIM 42-50-0.15 3B7640360M 3B7-64036-0 $0.98 0 Sold Out View More Details
(16) SHIM 42-50-0.1 3B7640370M 3B7-64037-0 $0.93 0 Sold Out View More Details
(17) BEVEL GEAR C 3C7640930M 3C7-64093-0 90A #21080~ $174.00 1
(18) BEVEL GEAR C WASHER 3B7640320M 3B7-64032-0 $36.46 0
(18) BEVEL GEAR C WASHER 3B7640340M 3B7-64034-0 $36.46 0
(18) BEVEL GEAR C WASHER 3B7640350M 3B7-64035-0 $7.74 0
(19) OIL SEAL 30-50-12 3B7601110M 3B7-60111-0 $11.96 1
(20) BOLT 8-30 PRE-COATED 3C7601080M 3C7-60108-0 $6.33 2
(21) WASHER 9402030800M 9402030800M $0.64 2
(22) THRUST HOLDER PROPELLER 3B7642311M 3B7-64231-1 $77.77 1
(23) STOPPER PROPELLER 3B7642330M 3B7-64233-0 $0.00 1 Sold Out View More Details
(24) PROPELLER A11 3B7645231M 3B7-64523-1 $152.33 1
(24) PROPELLER A13 3B7645271M 3B7-64527-1 $152.33 1
(24) PROPELLER A15 3B7645321M 3B7-64532-1 $152.33 1
(24) PROPELLER V1500 3C7645360M 3C7-64536-0 OR A17 3B7-64536-1 $152.33 1
(24) PROPELLER V1700 3C7645410M 3C7-64541-0 OR A19 3B7-64541-1 $152.33 1
(24) PROPELLER V1900 3C7645490M 3C7-64549-0 OR A23 3B7-64549-0 $152.33 1
(24) PROPELLER V2100 3C7645540M 3C7-64554-0 OR A25 3B7-64554-0 $152.33 1
(25) PROPELLER NUT 353641210M 353-64121-0 $16.51 1
(26) WASHER 17-32-3 345641240M 345-64124-0 $3.62 1
(27) SPLIT PIN 3-25 9515030325M 951503-0325 $0.92 1
(28) TRIM TAB 3B7602171M 3B7-60217-1 $28.25 1
(29) STUD BOLT 9153030825M 915303-0825 90A #21576~ $3.75 1
(30) NYLON NUT 8P-1.25 9304030800M 930446-0800 90A #21576~ $2.13 1
(32) TRIM TAB 3B7602190M 3B7-60219-0 $3.64 1 Sold Out View More Details
