14. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip

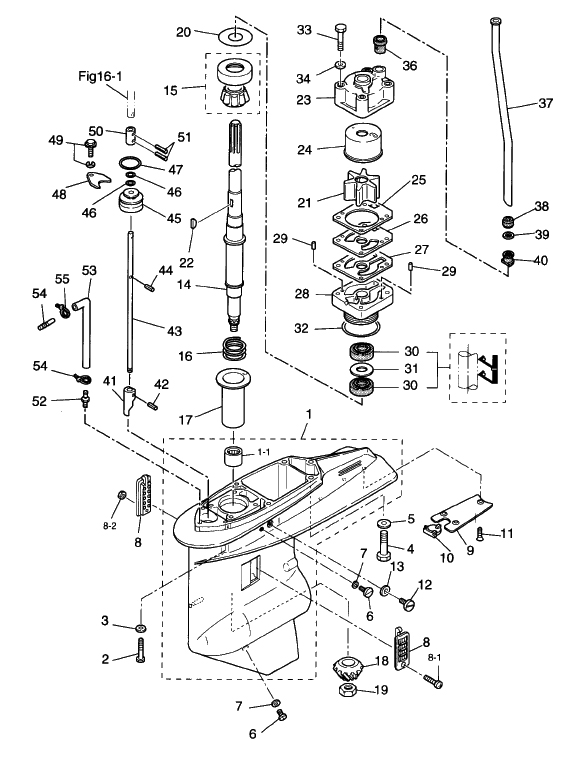

(1) GEAR CASE ASSY(1-1) NEEDLE BEARING, 25.4-33.3-31.8(2) BOLT, 8-35(3) WASHER(4) BOLT, 10-40(5) WASHER(6) OIL PLUG(6) OIL PLUG(7) GASKET, 8.1-15-1(7) GASKET, 8.1-15-1(8) WATER STRAINER SET(8) WATER STRAINER SET(8-1) SCREW(8-2) NYLON NUT, 4P0.7(9) PLATE, GEAR CASE(10) HOLE PLUG, GEAR CASE PLATE(11) SCREW(12) WATER PLUG(13) GASKET, 10.1-15-1(14) DRIVE SHAFT L(14) DRIVE SHAFT XL(15) TAPER ROLLER BEARING, 32305(16) SPRING, DRIVE SHAFT(17) GUIDE, DRIVE SHAFT SPRING(18) BEVEL GEAR B(19) NUT, BEVEL GEAR B(20) SHIM, 52-60.5-0.3(20) SHIM, 52-60.5-0.15(20) SHIM, 52-60.5-0.1(21) IMPELLER, WATER PUMP(22) KEY, WATER PUMP IMPELLER(23) UPPER PUMP CASE ASSY(24) LINER, PUMP CASE(25) GASKET, PUMP CASE(26) GUIDE PLATE, WATER PUMP(27) GASKET, GUIDE PLATE(28) LOWER PUMP CASE(29) DOWEL PIN, 4-10(29) DOWEL PIN, 4-10(30) OIL SEAL, 22-42-7(30) OIL SEAL, 22-42-7(31) SPACER, 35-41.9-0.5(32) O-RING, 3.1-54.4(33) BOLT(34) WASHER(36) LOWER SEAL RUBBER, WATER PIPE(37) WATER PIPE L(37) WATER PIPE XL(38) UPPER SEAL RUBBER, WATER PIPE(39) COLLAR, 18-20-4.5(40) LOCKING RUBBER, WATER PIPE(41) CLUTCH CAM(42) SPRING PIN, 3.5-16(43) CAM ROD L(43) CAM ROD XL(44) SPRING PIN, 3.5-10(45) BUSHING, CAM ROD(46) O-RING, 1.9-6.8(46) O-RING, 1.9-6.8(47) O-RING, 3.5-27.7(48) STOPPER(49) BOLT(50) JOINT, SHIFT ROD(51) SPRING PIN, 3.5-16(52) NIPPLE, 6-1/8(52) PLUG, 6-1/8(53) PIPE A, SPEEDOMETER (L)(53) PIPE A, SPEEDOMETER (XL)(54) NIPPLE, 6-6(54) NIPPLE, 6-6(55) BAND, LEAD WIRE



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE ASSY 3B7S600003 3B7S60000-3 FOR R&L ROTATION $833.18 1
(1-1) NEEDLE BEARING 25.4-33.3-31.8 3B7601020M 3B7-60102-0 $46.28 1 Sold Out View More Details
(2) BOLT 8-35 9161890835M 916189-0835 $5.35 4
(3) WASHER 9402030800M 9402030800M $0.60 4
(4) BOLT 10-40 3B7600012M 3B7-60001-2 $8.33 3
(5) WASHER 9402031000M 940203-1000 $1.04 3 Sold Out View More Details
(6) OIL PLUG 332600051M 332-60005-1 $5.07 2
(7) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(8) WATER STRAINER SET 3C7602351M 3C7-60235-1 $13.35 1
(8-1) SCREW 9215030445M 921503-0445 $1.13 1
(8-2) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.68 1
(9) PLATE GEAR CASE 3B7600120M 3B7-60012-0 $13.90 1
(10) GEAR CASE PLATE PLUG 3B7600130M 3B7-60013-0 $2.56 1
(11) SCREW 9216030614M 921603-0614 $0.69 3 Sold Out View More Details
(12) WATER PLUG 3B7600150M 3B7-60015-0 $5.29 1
(13) GASKET 10.1-15-1 3B7600160M 3B7-60016-0 $2.31 1 Sold Out View More Details
(14) DRIVE SHAFT L 3B7643020M 3B7-64302-0 FOR TRANSOM L $440.51 1
(14) DRIVE SHAFT XL 3B7643030M 3B7-64303-0 FOR TRANSOM XL $0.00 1 Sold Out View More Details
(15) TAPER ROLLER BEARING 32305 3B7602130M 3B7-60213-0 $39.63 1
(16) SPRING DRIVE SHAFT 353643270M 353-64327-0 $2.25 1
(17) GUIDE DRIVE SHAFT SPRING 3B7643280M 3B7-64328-0 $8.05 1
(18) BEVEL GEAR B 3B7640200M 3B7-64020-0 $115.07 1
(19) BEVEL GEAR B NUT 3B7640270M 3B7-64027-0 $10.41 1
(20) SHIM 52-60.5-0.3 353640140M 353-64014-0 $1.14 0
(20) SHIM 52-60.5-0.15 353640150M 353-64015-0 $1.23 0
(20) SHIM 52-60.5-0.1 353640160M 353-64016-0 $1.49 0
(21) IMPELLER WATER PUMP 3B7650211M 3B7-65021-1 $22.74 1
(22) WATER PUMP IMPELLER KEY 3B7650220M 3B7-65022-0 $10.98 1
(23) UPPER PUMP CASE ASSY 3B7650160M 3B7-65016-0 $52.05 1
(24) LINER PUMP CASE 3B7650110M 3B7-65011-0 $29.93 1
(25) GASKET PUMP CASE 3B7650180M 3B7-65018-0 $2.86 1
(26) GUIDE PLATE WATER PUMP 3B7650250M 3B7-65025-0 $55.20 1
(27) GASKET GUIDE PLATE 3B7650290M 3B7-65029-0 $2.56 1
(28) LOWER PUMP CASE 3B7650171M 3B7-65017-1 $89.75 1
(29) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(30) OIL SEAL 22-42-7 3C7602231M 3C7-60223-1 $4.95 2
(31) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 1
(32) O-RING 3.1-54.4 3B7650150M 3B7-65015-0 $3.91 1
(33) BOLT 9161030880M 916103-0880 $3.37 4
(34) WASHER 9401030800M 940113-0800 $0.84 4
(36) SEAL RUBBER LOWER WATER PIPE 3B7650140M 3B7-65014-0 $2.31 1
(37) WATER PIPE L 3B7651100M 3B7-65110-0 FOR TRANSOM L $56.18 1
(37) WATER PIPE XL 3B7651200M 3B7-65120-0 FOR TRANSOM XL $23.01 1 Sold Out View More Details
(38) WATER PIPE SEAL (UPPER) 345652060M 345-65206-0 $2.10 1
(39) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
(40) WATER PIPE AUXILIARY MOUNT 346652040M 346-65204-0 $2.31 1 Sold Out View More Details
(41) CLUTCH CAM 3B7660111M 3B7-66011-1 90A #18083~ $52.86 1
(42) SPRING PIN 3.5 -16 9514033516M 951403-3516 90A #18083~ $0.84 1
(43) CAM ROD L 3B7660131M 3B7-66013-1 FOR TRANSOM L / 90A #18083~ $20.02 1
(43) CAM ROD UL 3B7660141M 3B7-66014-1 FOR TRANSOM XL / 90A #18083~ $21.90 1
(44) SPRING PIN 3.5-10 9514033510M 951403-3510 $0.49 1
(45) CAM ROD BUSHING 3B7660311M 3B7-66031-1 $23.01 1
(46) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(47) O-RING 3.5-27.7 3B7660230M 3B7-66023-0 $2.76 1
(48) STOPPER 353660240M 353-66024-0 $4.40 1
(49) BOLT 9101036612M 910103-6612 $1.16 1
(50) SHIFT ROD JOINT 353662411M 353-66241-1 90A #18083~ $8.20 1
(51) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 2
(52) NIPPLE 6-1/8 3C7600170M 3C7-60017-0 $3.27 1
(52) PLUG 6-1/8 3B7-60027-0 NA FOR SPEEDOMETER LESS $0.00 1 Sold Out View More Details
(53) PIPE A SPEEDOMETER (L) 980840800M 9808-4-0800 FOR TRANSOM L $7.92 1
(53) PIPE A SPEEDOMETER (XL) 980840920M 9808-4-0920 FOR TRANSOM XL $7.92 1
(54) NIPPLE 6-6 3C7600180M 3C7-60018-0 $3.00 1
(55) LEAD WIRE BAND 100 353843980M 353-84398-0 $0.84 2
