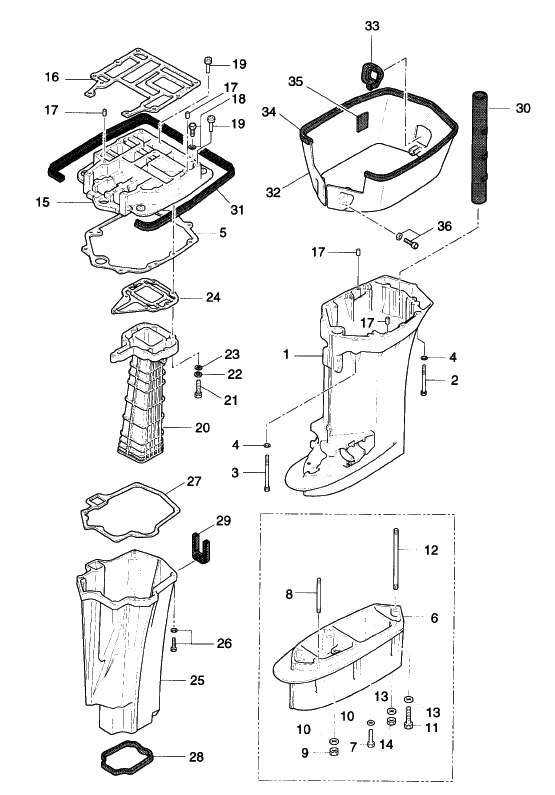

13. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING L(2) BOLT, 8-105(3) BOLT, 8-115(4) WASHER(4) WASHER(5) GASKET, DRIVE SHAFT HOUSING(6) EXTENSION HOUSING XL(7) BOLT, 8-35(8) STUD BOLT(9) NUT(10) WASHER(10) WASHER(11) BOLT, 10-40(12) STUD BOLT, 10-165(13) WASHER(13) WASHER(14) NUT, 10, P1.25(15) ENGINE BASE(16) GASKET, ENGINE BASE(17) DOWEL PIN, 6-12(17) DOWEL PIN, 6-12(17) DOWEL PIN, 6-12(17) DOWEL PIN, 6-12(18) BOLT(19) DRAIN PLUG B, ENGINE BASE(19) DRAIN PLUG B, ENGINE BASE(20) EXHAUST PIPE(21) BOLT(22) SPRING WASHER(23) WASHER(24) GASKET, EXHAUST PIPE(25) EXHAUST HOUSING(26) BOLT(27) GASKET, EXHAUST HOUSING(28) GROMMET, EXHAUST HOUSING(29) GROMMET, IDLE PORT(30) REVERSE GAS PASSAGE(31) SEAL RUBBER, LOWER COVER(32) SPLASH PAN(33) GROMMET, SPLASH PAN(34) SEAL RUBBER(35) SET RUBBER, SPLASH PAN(36) BOLT



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING L 3B7S610303 3B7S61030-3 90A #17135~ $0.00 1 Sold Out View More Details
(2) BOLT 8 -105 3B7610172M 3B7-61017-2 $4.83 6
(3) BOLT 8-115 3B7610181M 3B7-61018-1 $4.61 2
(4) WASHER 9401030800M 940113-0800 $0.84 8
(5) DRIVE SHAFT HOUSING GASKET 3B7610120M 3B7-61012-0 $12.47 1
(6) EXTENSION HOUSING XL 367S61110-0 NA TRANSOM XL $0.00 1 Sold Out View More Details
(7) BOLT 8-35 9161890835M 916189-0835 TRANSOM XL $5.35 3
(8) STUD BOLT 9153030825M 915303-0825 TRANSOM XL $3.51 1
(9) NUT 9301030800M 930103-0800 TRANSOM XL $1.99 1
(10) WASHER 9401030800M 940113-0800 TRANSOM XL $0.84 4
(11) BOLT 10-40 3B7600012M 3B7-60001-2 TRANSOM XL $8.33 2
(12) STUD BOLT 10-165 3B7611120M 3B7-61112-0 TRANSOM XL $18.64 1
(13) WASHER 9402031000M 940203-1000 TRANSOM XL $1.04 3 Sold Out View More Details
(14) NUT 10-P1.25 3B7611140M 3B7-61114-0 TRANSOM XL $2.07 1
(15) ENGINE BASE 3B7S013010 3B7S01301-0 $0.00 1 Sold Out View More Details
(16) GASKET ENGINE BASE 3B7013030M 3B7-01303-0 $28.61 1
(17) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 4
(18) BOLT 9101035635M 910103-5635 $1.96 2 Sold Out View More Details
(19) ENGINE BASEMENT DRAIN PLUG B 3B7671790M 3B7-67179-0 $1.34 2
(20) EXHAUST PIPE 3B7023110M 3B7-02311-0 $70.82 1
(21) BOLT 9101140635M 910114-0635 $1.06 7
(22) SPRING WASHER 9413030600M 941303-0600 $0.84 7
(23) WASHER 9401030600M 940103-0600 $0.70 7
(24) EXHAUST PIPE GASKET 3B7023120M 3B7-02312-0 $6.04 1
(25) EXHAUST HOUSING 3D8611800M 3D8-61180-0 90A #22140~ $120.93 1 Sold Out View More Details
(26) BOLT 9101035830M 9101E3-5830 $1.89 4
(27) GASKET EXHAUST HOUSING 3B7611810M 3B7-61181-0 $15.51 1
(28) EXHAUST HOUSING GROMMET 3B7611820M 3B7-61182-0 $10.12 1
(29) IDLE EXHAUST PORT GROMMET 3B7612070M 3B7-61207-0 $9.09 1
(30) REVERSE GAS PASSAGE PIPE 3B7611860M 3B7-61186-0 $0.00 1 Sold Out View More Details
(31) ENGINE BASEMENT SEAL 3B7671160M 3B7-67116-0 $13.51 1
(32) SPLASH PAN 3C7S612101 3C7S61210-1 90A #17135~ $88.21 1 Sold Out View More Details
(33) APRON GROMMET 3C7612120M 3C7-61212-0 90A #17135~ $7.34 1
(34) APRON SEAL 3E0612130M 3E0-61213-0 90A #17135~ $8.52 1
(35) APRON PAD 3C7612160M 3C7-61216-0 90A #17135~ $1.41 2
(36) BOLT 9101035612M 910103-5612 90A #17135~ $1.07 4
