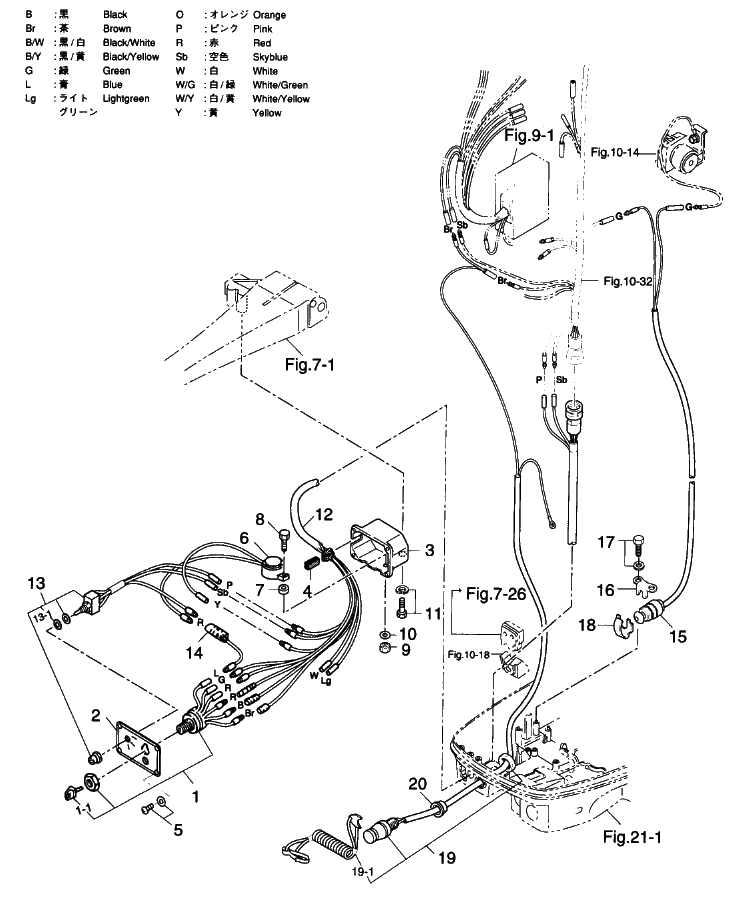

11. ELECTRIC PARTS (MAIN SWITCH : F TYPE)

Click Here for Microfiche Usage Tip
(1) MAIN SWITCH ASSY(1-1) KEY, MAIN SWITCH (NO. 301)(1-1) KEY, MAIN SWITCH (NO. 302)(1-1) KEY, MAIN SWITCH (NO. 303)(2) PANEL, MAIN SWITCH(2) PANEL, MAIN SWITCH(3) SWITCH BOX(4) GROMMET, SWITCH BOX(5) SCREW(6) OVER-HEAT BUZZER B(7) MOUNT RUBBER, 9-16-4.3(8) BOLT(9) NUT(10) SPRING WASHER(11) BOLT(12) CORD ASSY C(13) SWITCH ASSY I, POWER TRIM & TILT(13-1) PACKING, 12.1-17-0.5(14) ASSIST CORD, RED(15) NEUTRAL SWITCH(16) BRACKET, NEUTRAL SWITCH(17) BOLT(18) ACTUATOR, NEUTRAL SWITCH(19) LANYARD STOP SWITCH E ASSY(19-1) LOCK, LANYARD STOP SWITCH(20) SPACER, STOP SWITCH



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: ELECTRIC PARTS (MAIN SWITCH : F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MAIN SWITCH 353760203M 353-76020-3 $56.65 1
(1-1) MAIN SWITCH KEY (NO.301) 3F3762170M 3F3-76217-0 $17.62 1
(1-1) MAIN SWITCH KEY (NO.302) 3F3762180M 3F3-76218-0 $17.62 1
(1-1) MAIN SWITCH KEY (NO.303) 3F3762190M 3F3-76219-0 $17.62 1
(2) PANEL MAIN SWITCH 3B7762010M 3B7-76201-0 PTT TYPE $22.54 1 Sold Out View More Details
(2) PANEL MAIN SWITCH 3B7762000M 3B7-76200-0 $22.54 1 Sold Out View More Details
(3) SWITCH BOX 3B7S760322 3B7S76032-2 $0.00 1 Sold Out View More Details
(4) SWITCH BOX GROMMET 3B7760350M 3B7-76035-0 $0.00 1 Sold Out View More Details
(5) SCREW 9215035510M 921503-5510 $0.42 4
(6) OVER HEAT BUZZER B 3B7761710M 3B7-76171-0 $57.51 1
(7) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 1
(8) BOLT 9101030525M 910103-0525 $0.00 1 Sold Out View More Details
(9) NUT 9301030500M 930103-0500 $0.86 1
(10) SPRING WASHER 9413030500M 941303-0500 $0.90 1
(11) BOLT 9101036625M 910103-6625 $1.01 2
(12) CORD ASSY C 3B7761190M 3B7-76119-0 $144.95 1 Sold Out View More Details
(13) SWITCH ASSY I POWER TRIM & TILT 353725701 353-72570-1 PTT TYPE $0.00 1 Sold Out View More Details
(13-1) PACKING 12.1-17-0.5 152016120M 152-01612-0 PTT TYPE $0.97 1
(14) ASSIST CORD (RED) 353725460M 353-72546-0 PTT TYPE $5.92 1
(15) NEUTRAL SWITCH 3C8760800M 3C8-76080-0 90A #18949~ $37.45 1
(16) BRACKET NEUTRAL SWITCH 3A3760811M 3A3-76081-1 90A #18949~ $12.47 1
(17) BOLT 9101036616M 910103-6616 $1.20 1
(18) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 $4.02 1
(19) LANYARD STOP SWITCH E ASSY 3B7068300M 3B7-06830-0 90A #18825~ $0.00 1 Sold Out View More Details
(19-1) STOP SWITCH LANYARD 353068210M 353-06821-0 90A #18825~ $16.48 1 Sold Out View More Details
(20) SPACER STOP SWITCH 361069860M 361-06986-0 90A #18825~ $19.58 1 Sold Out View More Details
