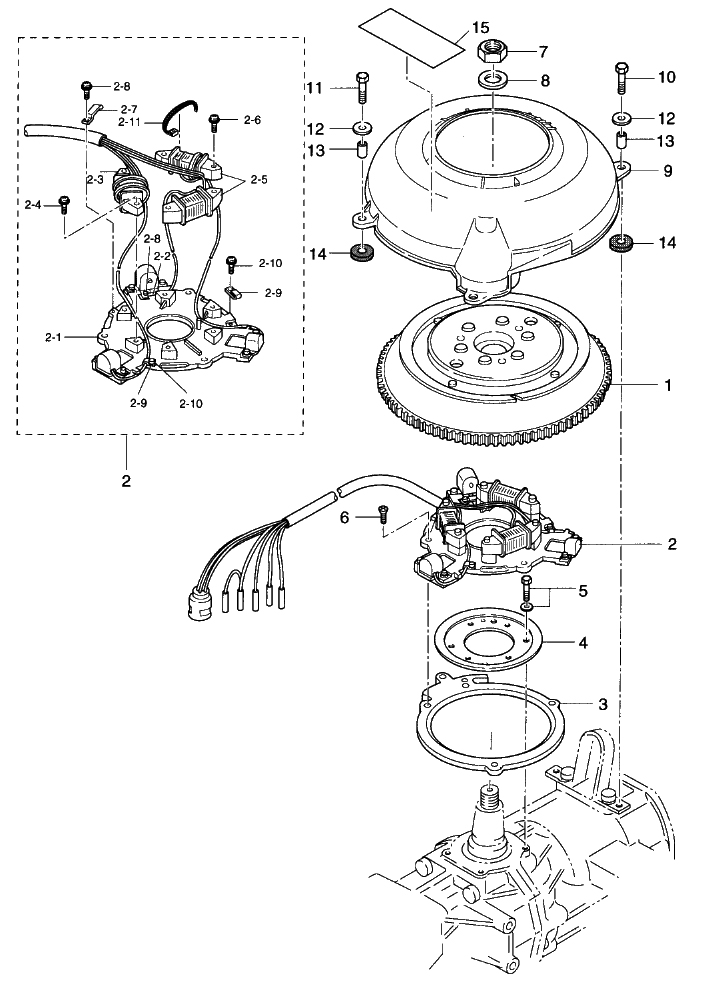

8. MAGNETO

Click Here for Microfiche Usage Tip
(1) FLYWHEEL(2) COIL PLATE ASSY(2) COIL PLATE ASSY(2-1) PULSER PLATE ASSY(2-2) HOLDER, PULSER(2-3) EXCITER COIL(2-4) SCREW(2-5) ALTERNATOR(2-6) SCREW(2-7) HOLDER, MAGNETO CORD(2-8) SCREW(2-8) SCREW(2-9) CLAMP, PULSER(2-9) CLAMP, PULSER(2-10) SCREW(2-10) SCREW(2-11) BAND, LEAD WIRE(3) SET RING(4) GUIDE PLATE(5) BOLT(6) SCREW(7) NUT, 18, P1.5(8) WASHER, 19-34-3(9) COVER, RING GEAR(10) BOLT(11) BOLT(12) WASHER, 6-16-1.5(12) WASHER, 6-16-1.5(13) COLLAR, 6.2-9-9.3(13) COLLAR, 6.2-9-9.3(14) MOUNT RUBBER, 9-16-4.3(14) MOUNT RUBBER, 9-16-4.3(15) CAUTION LABEL (CE-C)



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL 3B7061011M 3B7-06101-1 90A #20995~ $687.68 1
(2) COIL PLATE ASSY 3B7061032M 3B7-06103-2 90A # $559.60 1 Sold Out View More Details
(2-1) PULSER PLATE ASSY 3B7061302M 3B7-06130-2 90A # $388.88 1 Sold Out View More Details
(2-2) HOLDER PULSER 3B7061310M 3B7-06131-0 $4.12 1
(2-3) EXCITER COIL 3B7061201M 3B7-06120-1 $87.22 1
(2-4) SCREW 9215216630M 921521-6630 $1.55 2
(2-5) ALTERNATOR 3B7061231M 3B7-06123-1 $153.18 1
(2-6) SCREW 9215216630M 921521-6630 $1.55 4
(2-7) HOLDER MAGNETO CORD 3B7061350M 3B7-06135-0 $0.00 1 Sold Out View More Details
(2-8) SCREW 9225210406M 922521-0406 $0.00 2 Sold Out View More Details
(2-9) CLAMP PULSER 3B7061320M 3B7-06132-0 $4.52 2 Sold Out View More Details
(2-10) SCREW 9215216406M 921521-6406 $2.13 2
(2-11) BAND LEAD WIRE 3B7061330M 3B7-06133-0 $0.00 4 Sold Out View More Details
(3) SET RING 3B7637230M 3B7-63723-0 $23.87 1
(4) GUIDE PLATE 346637222M 346-63722-2 $23.17 1
(5) BOLT 9101216616M 910121-6616 $0.90 4
(6) SCREW 9215036510M 921503-6510 90A # $0.52 3
(7) NUT 18 P1.5 353001320M 353-00132-0 $4.70 1
(8) WASHER 19 - 34 - 3 353001330M 353-00133-0 $3.22 1
(9) COVER RING GEAR 3C7063010M 3C7-06301-0 $100.92 1 Sold Out View More Details
(10) BOLT 9101030616M 910113-0616 $1.04 2
(11) BOLT 9101030625M 910113-0625 $1.01 2
(12) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 4
(13) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.35 4
(14) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.98 4
(15) CAUTION LABEL (CE-C) 3C7-72182-0 NA $0.00 1 Sold Out View More Details
