5. FUEL LINE

Click Here for Microfiche Usage Tip
(1) FUEL PUMP(1) FUEL PUMP(1-1) PUMP COVER(1-2) SCREW(1-4) DIAPHRAGM(1-6) GASKET B, DIAPHRAGM(1-9) CHECK VALVE(1-9) CHECK VALVE(1-10) SCREW(1-10) SCREW(1-11) NUT(1-11) NUT(1-12) DIAPHRAGM B SET(2) GASKET, FUEL PUMP(3) SCREW(4) FILTER ASSY(4-1) CUP(4-2) O-RING A(4-3) FILTER(4-4) O-RING B(5) NUT(6) SPRING WASHER(7) FUEL PIPE A(8) FUEL PIPE B(9) FUEL PIPE C(10) FUEL PIPE D(10) FUEL PIPE D(11) CLIP, o10(11) CLIP, o10(11) CLIP, o10(11) CLIP, o10(11) CLIP, o10(11) CLIP, o10(11) CLIP, o10(11) CLIP, o10(12) FUEL PIPE E(13) FUEL PIPE F(14) CLIP, o10(15) CHECK VALVE COMPLETE(16) FUEL CONNECTOR (ENGINE, MALE)(17) NUT 10, P1.25(18) CLAMP, 6.5-47.5P(19) SCREW



Parts List

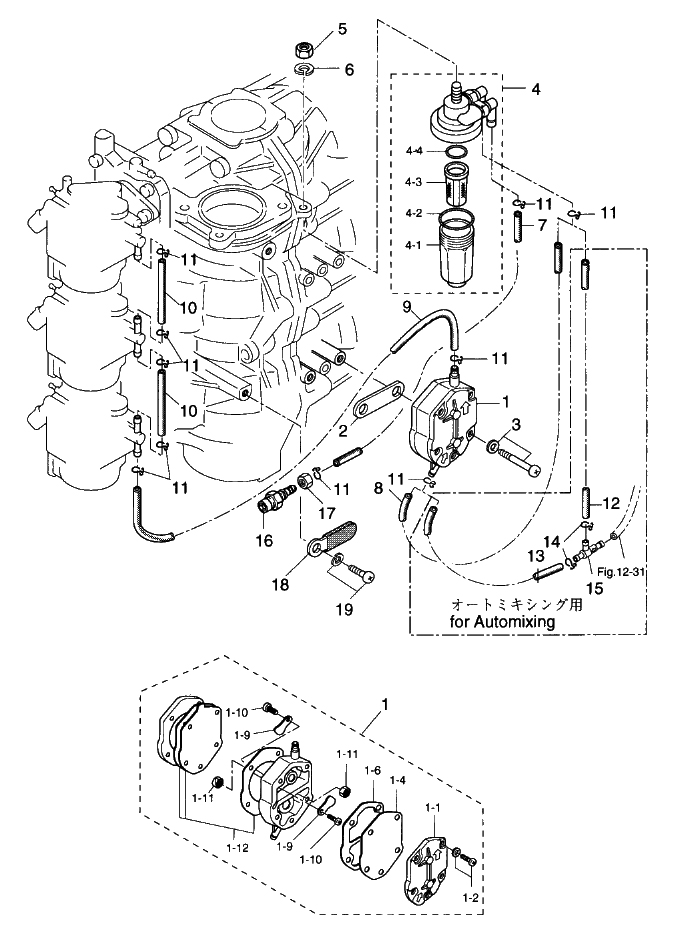

1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL PUMP 356040001M 356-04000-1 $88.09 1
(1-1) PUMP COVER 334040040M 334-04004-0 $16.82 1
(1-2) SCREW 9225126528M 922512-6528 $0.69 3
(1-4) PUMP DIAPHRAGM 334040050M 334-04005-0 $29.88 1
(1-6) DIAPHRAGM GASKET B 334040070M 334-04007-0 $8.52 1
(1-9) CHECK VALVE 356040440M 356-04044-0 $4.19 2
(1-10) SCREW 9217220306M 921722-0306 $0.88 2
(1-11) NUT 9302220300M 930222-0300 $0.86 2
(1-12) DIAPHRAGM GASKET SET 356040300M 356-04030-0 $25.62 1
(2) GASKET FUEL PUMP 346049010M 346-04901-0 $2.71 1
(3) SCREW 9215036640M 921503-6640 $1.75 2
(4) FUEL FILTER 3B7022300M 3B7-02230-0 $27.66 1
(4-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(4-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(4-3) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(4-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(5) NUT 9301060800M 930106-0800 $1.99 1 Sold Out View More Details
(6) SPRING WASHER 9413030800M 941303-0800 $0.79 1
(7) FUEL PIPE A 981050380M 9810-5-0380 $11.41 1
(8) FUEL PIPE B 981050400M 9810-5-0400 FOR PREMIXING $11.41 1
(9) FUEL PIPE C 981050440M 9810-5-0440 $11.41 1
(10) FUEL PIPE D 981050100M 9810-5-0100 $11.41 2
(11) CLIP ø10 338022150M 338-02215-0 $1.41 10
(12) FUEL PIPE E 981050270M 9810-5-0270 FOR AUTOMIXING / 90A #18666~ $11.41 1
(13) FUEL PIPE F 981050150M 9810-5-0150 FOR AUTOMIXING / 90A #18666~ $11.41 1
(14) CLIP ø10 338022150M 338-02215-0 FOR AUTOMIXING / 90A #18666~ $1.41 2
(15) CHECK VALVE COMPLETE 3C8090750M 3C8-09075-0 FOR AUTOMIXING / 90A #18666~ $29.88 1
(16) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(17) NUT 10 P1.25 9311031000M 931103-1000 $2.07 1
(18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(19) SCREW 9215036612M 921503-6612 $0.00 1 Sold Out View More Details
