2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

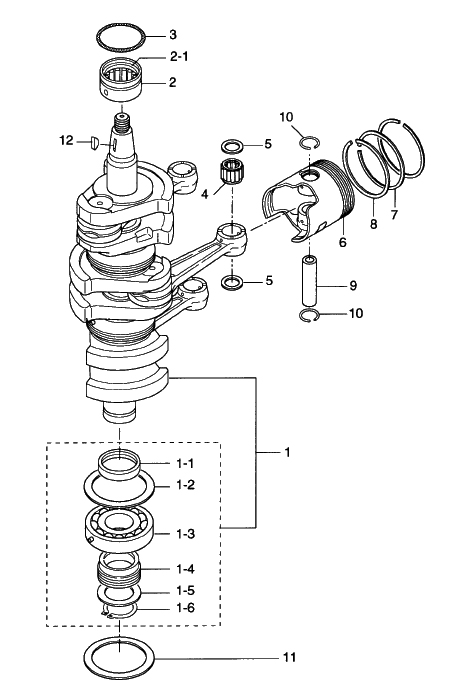

(1) CRANKSHAFT ASSY(1-1) SPACER, 40-52-7(1-2) WASHER, 66-85-2(1-3) BEARING, 6208(1-4) DRIVE GEAR, OIL PUMP(1-5) SHIM, 36-44-0.3(1-5) SHIM, 36-44-0.15(1-5) SHIM, 36-44-0.1(1-6) C-RING, D=35(2) MAIN BEARING UPPER(2-1) OIL SEAL (UPPER, CRANKSHAFT)(3) O-RING, 2.4-44.7(4) NEEDLE BEARING, 20-25-28(5) WASHER, SMALL END BEARING(5) WASHER, SMALL END BEARING(6) PISTON (STD)(6) PISTON (0.5 O/S)(7) PISTON RING 1ST (STD)(7) PISTON RING 1ST (0.5 O/S)(8) PISTON RING 2ND (STD)(8) PISTON RING 2ND (0.5 O/S)(9) PISTON PIN(10) CLIP(10) CLIP(11) WASHER, 66-85-2(12) MAGNETO KEY



Parts List
1996 :: 90 HP :: 2 Stroke Tohatsu M90A :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3B7000300M 3B7-00030-0 $1,627.17 1 Sold Out View More Details
(1-1) SPACER 40-52-7 3B7001160M 3B7-00116-0 $16.82 1
(1-2) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(1-3) BEARING 6208 960306208M 9603-0-6208 $27.54 1
(1-4) DRIVE GEAR OIL PUMP 3B7090600M 3B7-09060-0 $0.00 1 Sold Out View More Details
(1-5) SHIM 36-44-0.3 353640360M 353-64036-0 $1.56 0
(1-5) SHIM 36-44-0.15 353640370M 353-64037-0 $1.56 0
(1-5) SHIM 36-44-0.1 353640380M 353-64038-0 $1.79 0
(1-6) C-RING D=35 9451073500M 945107-3500 $0.99 1
(2) MAIN BEARING UPPER 353001130M 353-00113-0 $85.17 1
(2-1) OIL SEAL (UPPER CRANKSHAFT) 353001210M 353-00121-0 ø36.5- ø46- 8MM $11.02 1
(3) O-RING 2.4-44.7 353001080M 353-00108-0 $3.00 1
(4) NEEDLE BEARING 20-25-28 3C7000420M 3C7-00042-0 $30.77 3
(5) SMALL END BEARING WASHER 353000460M 353-00046-0 $8.52 6
(6) PISTON (STD) 3B7000012M 3B7-00001-2 $92.32 3
(6) PISTON (0.5 O/S) 3B7000042M 3B7-00004-2 OPT $135.94 3
(7) PISTON RING 1ST ( STD 3B7000110M 3B7-00011-0 $16.73 3
(7) PISTON RING 1ST (0.5MM O/S) 3B7000140M 3B7-00014-0 OPT $20.43 3
(8) PISTON RING 2ND ( STD) 3B7000120M 3B7-00012-0 $12.48 6
(8) PISTON RING 2ND (0.5MM O/S) 3B7000150M 3B7-00015-0 OPT $12.74 6
(9) PISTON PIN 360000210M 360-00021-0 $13.51 3
(10) PISTON PIN CLIP 353000241M 353-00024-1 $0.70 6
(11) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(12) KEY MAGNETO 334001310M 334-00131-0 $3.39 1
