25. ACCESSORIES

Click Here for Microfiche Usage Tip

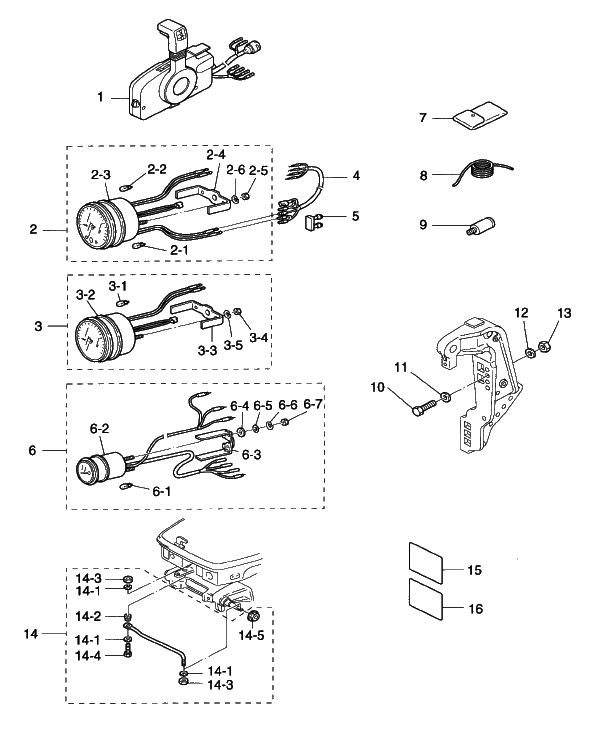

(1) SINGLE REMOTE CONTROL BOX ASSY (RC5A)(1) SINGLE REMOTE CONTROL BOX ASSY (RC5B)(1) SINGLE REMOTE CONTROL BOX ASSY (RC5A)(1) SINGLE REMOTE CONTROL BOX ASSY (RC8B)(2) TACHOMETER ASSY(2-1) BULB, OIL 12V-1.7W(2-2) BULB, METER 12V-1.7W(2-3) DAMPER, METER(2-4) PLATE, FITTING(2-5) NUT(2-6) SPRING WASHER(3) TACHOMETER ASSY(3-1) BULB, METER 12V-1.7W(3-2) DAMPER, METER(3-3) PLATE, FITTING(3-4) NUT(3-5) SPRING WASHER(4) LEAD WIRE, METER(5) PLUG, CABLE TERMINAL(6) TRIM METER ASSY(6-1) BULB, METER 12V-1.7W(6-2) DAMPER, METER(6-3) PLATE, FITTING(6-4) INSULATED WASHER(6-5) WASHER(6-6) SPRING WASHER(6-7) NUT(7) TOOL ASSY(7) TOOL ASSY(8) ROPE(9) FLUSHING PLUG(10) BOLT(11) WASHER, 13-34-3(12) WASHER(13) NUT, 12, P1.25(14) DRAG LINK D ASSY(14-1) WASHER, 9.6-18-2(14-1) WASHER, 9.6-18-2(14-1) WASHER, 9.6-18-2(14-2) SPACER, DRAG LINK(14-3) NYLON NUT, 3/8(14-3) NYLON NUT, 3/8(14-4) BOLT, 3/8-55(14-5) SEAL RING, DRAG LINK(15) LABEL, OIL CAUTION (D)(15) LABEL, OIL CAUTION (X)(16) LABEL, WARNING BUZZER CAUTION (D)(16) LABEL, WARNING BUZZER CAUTION (X)



Parts List
1996 :: 90 HP :: 2 Stroke Nissan NS90A :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CONTROL BOX (RC5A) 3B7843301M 3B7-84330-1 TOHATSU / P - PTT TYPE : STD $446.56 1
(1) REMOTE CONTROL BOX (RC5B) 3B7843401M 3B7-84340-1 TOHATSU / P TYPE : STD $456.39 1
(1) CONTROL BOX (RC5A) 3B1Q843303 3B1Q843303 NISSAN / P - PTT TYPE : STD $0.00 1 Sold Out View More Details
(1) REMOTE CONTROL BOX (RC8B) 3B1N843403 3B1N843403 NISSAN / P TYPE : STD $0.00 1 Sold Out View More Details
(2) TACHOMETER (WITH OIL LAMP) 3B7726401M 3B7-72640-1 UNIQUE / P - AUTOMIXING TYPE: STD $0.00 1 Sold Out View More Details
(2-1) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 P - AUTOMIXING TYPE: STD $3.27 1
(2-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 P - AUTOMIXING TYPE: STD $0.00 1 Sold Out View More Details
(2-3) METER DAMPER 3B7726560M 3B7-72656-0 P - AUTOMIXING TYPE: STD $3.27 1
(2-4) FITTING PLATE 3B7726610M 3B7-72661-0 P - AUTOMIXING TYPE: STD $25.33 1
(2-5) NUT 9302030500M 930203-0500 P - AUTOMIXING TYPE: STD $0.60 2
(2-6) SPRING WASHER 9413030500M 941303-0500 P - AUTOMIXING TYPE: STD $0.90 2
(3) TACHOMETER (WITHOUT OIL LAMP) 3B7725301M 3B7-72530-1 UNIQUE / P - PREMIXING TYPE: STD / F - PREMIXING TYPE: OPT $0.00 1 Sold Out View More Details
(3-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 P - PREMIXING TYPE: STD / F - PREMIXING TYPE: OPT $0.00 1 Sold Out View More Details
(3-2) METER DAMPER 3B7726560M 3B7-72656-0 P - PREMIXING TYPE: STD / F - PREMIXING TYPE: OPT $3.27 1
(3-3) FITTING PLATE 3B7726610M 3B7-72661-0 P - PREMIXING TYPE: STD / F - PREMIXING TYPE: OPT $25.33 1
(3-4) NUT 9302030500M 930203-0500 P - PREMIXING TYPE: STD / F - PREMIXING TYPE: OPT $0.60 2
(3-5) SPRING WASHER 9413030500M 941303-0500 P - PREMIXING TYPE: STD / F - PREMIXING TYPE: OPT $0.90 2
(4) METER LEAD CABLE 3A3725370M 3A3-72537-0 P TYPE : STD $30.73 1
(5) CABLE TERMINAL PLUG 353760370M 353-76037-0 P TYPE : STD $2.53 1
(6) TRIM METER 3E0725710M 3E0-72571-0 P - PTT TYPE : STD $0.00 1 Sold Out View More Details
(6-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 P - PTT TYPE : STD $0.00 1 Sold Out View More Details
(6-2) METER DAMPER 3B7726550M 3B7-72655-0 P - PTT TYPE : STD $2.68 1
(6-3) FITTING PLATE 3B7726650M 3B7-72665-0 P - PTT TYPE : STD $0.00 1 Sold Out View More Details
(6-4) INSULATED WASHER 3B7726660M 3B7-72666-0 P - PTT TYPE : STD $2.31 2 Sold Out View More Details
(6-5) WASHER 9401030400M 940103-0400 P - PTT TYPE : STD $0.58 2
(6-6) SPRING WASHER 9413030400M 941303-0400 P - PTT TYPE : STD $0.90 2
(6-7) NUT 9302030400M 930203-0400 P - PTT TYPE : STD $0.00 2 Sold Out View More Details
(7) TOOL ASSY 3B7721001M 3B7-72100-1 AUTOMIXING TYPE $21.62 1
(7) TOOL 3C8721001M 3C8-72100-1 PREMIXING TYPE $21.62 1
(8) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(9) FLUSHING ATTACHMENT 3B7600070M 3B7-60007-0 $8.05 1
(10) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(11) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(12) WASHER 9401031200M 940103-1200 $0.51 4
(13) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(14) DRAG LINK D ASSY 3B7849051M 3B7-84905-1 P TYPE : STD $220.25 1
(14-1) WASHER 9.6-18-2 353849160M 353-84916-0 P TYPE : STD $1.45 3
(14-2) SPACER DRAG LINK 3B7849140M 3B7-84914-0 P TYPE : STD $8.29 1
(14-3) NYLON NUT 3/8 353849180M 353-84918-0 P TYPE : STD $6.59 2
(14-4) BOLT 3/8-55 3B7849170M 3B7-84917-0 P TYPE : STD $11.28 1
(14-5) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 P TYPE : STD $2.56 1 Sold Out View More Details
(15) LABEL OIL CAUTION (D) 3B7720420M 3B7-72042-0 AUTOMIXING TYPE : STD $0.00 1 Sold Out View More Details
(15) LABEL OIL CAUTION (X) 3B7720430M 3B7-72043-0 FOR EXPORT / AUTOMIXING TYPE : STD $1.76 1 Sold Out View More Details
(16) LABEL WARNING BUZZER CAUTION (D) 3B7720500 3B7-72050-0 P TYPE : STD $0.00 1 Sold Out View More Details
(16) LABEL WARNING BUZZER CAUTION (X) 3B7720510 3B7-72051-0 FOR EXPORT / P TYPE : STD $0.00 1 Sold Out View More Details
