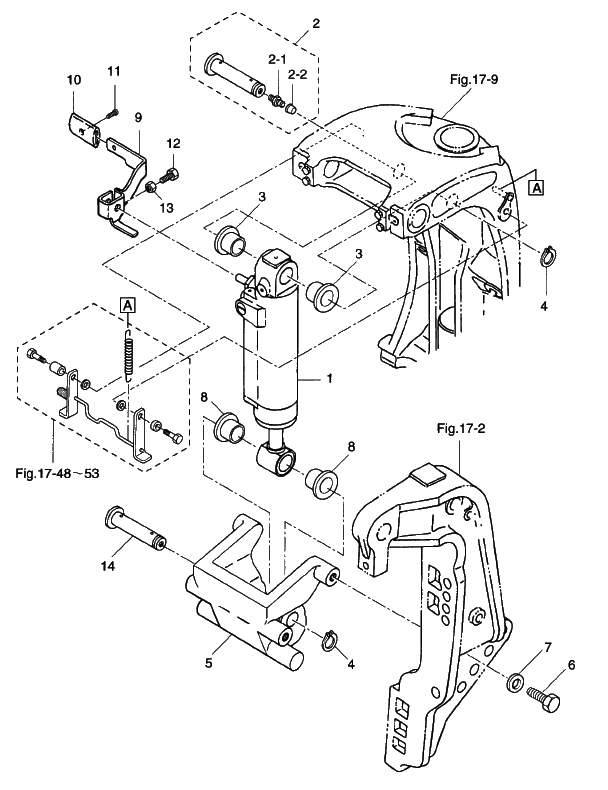

22. GAS ASSIST MANUAL TILT (G TYPE)

Click Here for Microfiche Usage Tip
(1) SHOCK ABSORBER(2) CYLINDER PIN SET(2-1) GREASE NIPPLE(2-2) CAP, GREASE NIPPLE(3) BUSHING, 18-24-18.5(3) BUSHING, 18-24-18.5(4) C-RING, D=18(4) C-RING, D=18(5) BRACKET, GAS ASSIST MANUAL TILT(6) BOLT(7) WASHER(8) BUSHING, 18-24-20(8) BUSHING, 18-24-20(9) LEVER, REVERSE LOCK(10) GRIP(11) STOPPER(12) BOLT(13) NUT(14) CYLINDER PIN



Parts List
1996 :: 90 HP :: 2 Stroke Nissan NS90A :: GAS ASSIST MANUAL TILT (G TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHOCK ABSORBER 3B7S77601-2 NA $0.00 1 Sold Out View More Details
(2) CYLINDER PIN SET 3B7770721M 3B7-77072-1 $0.00 1 Sold Out View More Details
(2-1) GREASE FITTING 344671770M 344-67177-0 $2.74 1
(2-2) CAP GREASE NIPPLE 344671780M 344-67178-0 $0.00 1 Sold Out View More Details
(3) BUSHING 18-24-18.5 3B7776161M 3B7-77616-1 $0.00 2 Sold Out View More Details
(4) C-RING D=18 9451031800M 945103-1800 $2.07 2
(5) BRACKET GAS ASSIST MANUAL TILT 3B7S77602-1 NA $0.00 1 Sold Out View More Details
(6) BOLT 9101031045M 910103-1045 $4.44 4
(7) WASHER 9401031000M 940103-1000 $1.61 4
(8) BUSHING 18-24-20 3B7770750M 3B7-77075-0 $0.00 2 Sold Out View More Details
(9) LEVER REVERSE LOCK 3B7S66311-4 NA $0.00 1 Sold Out View More Details
(10) GRIP LOCK LEVER 346663330M 346-66333-0 $5.16 1
(11) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.36 1
(12) BOLT 9101030616M 910113-0616 $1.04 1
(13) NUT 9301030600M 930113-0600 $0.90 1
(14) CYLINDER PIN 3B7770712M 3B7-77071-2 $0.00 1 Sold Out View More Details
