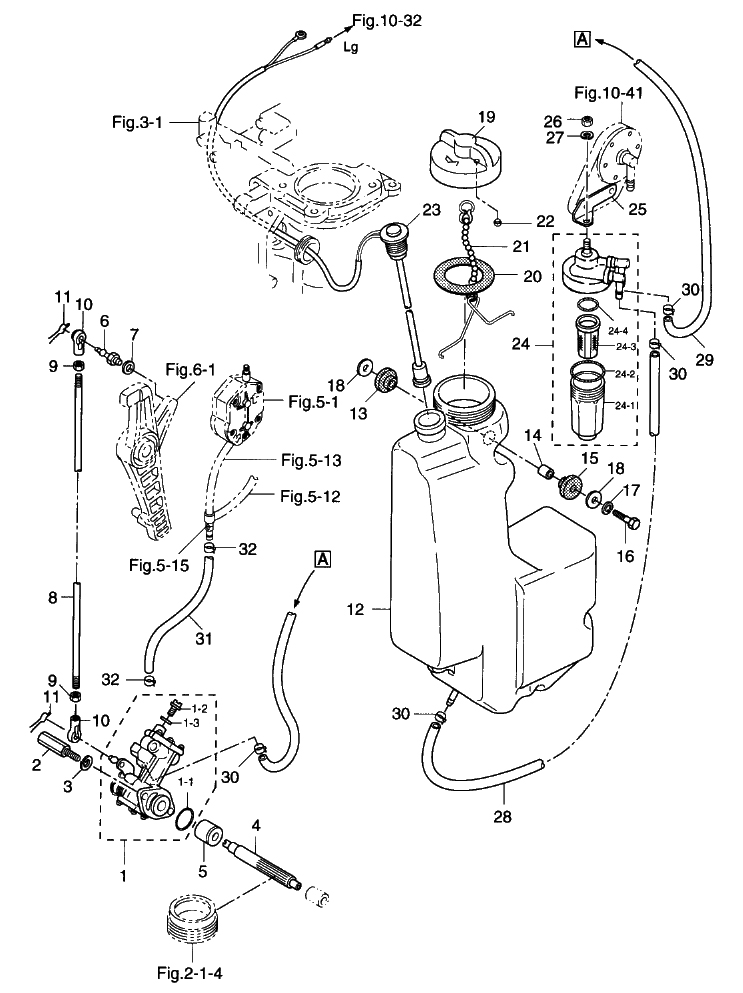

12. OIL PUMP (AUTOMIXING)

Click Here for Microfiche Usage Tip
(1) OIL PUMP ASSY(1-1) O-RING, 1.6-19.2(1-2) BOLT, AIR VENT(1-3) WASHER(2) BOLT, OIL PUMP(3) SPRING WASHER(4) DRIVEN GEAR, OIL PUMP(5) BUSHING, 9-20-20.8(6) BALL JOINT C(7) SPRING WASHER(8) LINK ROD, OIL PUMP(9) NUT(9) NUT(10) CAP C, BALL JOINT(10) CAP C, BALL JOINT(11) SNAP RETAINER, D=5(11) SNAP RETAINER, D=5(12) OIL TANK(13) MOUNT RUBBER, 8.5-14-2.5(14) SPACER, 6.2-9-15.7(15) MOUNT RUBBER(16) BOLT(17) SPRING WASHER(18) WASHER, 6.5-21-1(18) WASHER, 6.5-21-1(19) CAP, OIL TANK(20) GASKET, 36-52-2(21) HOOK, TANK CAP(22) CHECK VALVE, OIL TANK(23) OIL LEVEL SENSOR(24) FILTER ASSY(24-1) CUP(24-2) O-RING A(24-3) FILTER(24-4) O-RING(25) PLATE, OIL FILTER(26) NUT(27) SPRING WASHER(28) OIL PIPE A(29) OIL PIPE B(30) CLIP, o9.5(30) CLIP, o9.5(30) CLIP, o9.5(30) CLIP, o9.5(31) OIL PIPE C(32) CLIP, o8.5(32) CLIP, o8.5



Parts List
1996 :: 90 HP :: 2 Stroke Nissan NS90A :: OIL PUMP (AUTOMIXING)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PUMP ASSY 3B7090001M 3B7-09000-1 90A #18666~ $242.28 1
(1-1) O-RING 1.6-19.2 3B7090020M 3B7-09002-0 $3.97 1
(1-2) AIR VENT BOLT 3B7090040M 3B7-09004-0 $6.90 1
(1-3) WASHER 3B7090060M 3B7-09006-0 $0.99 1
(2) BOLT OIL PUMP 3B7090500M 3B7-09050-0 $0.00 2 Sold Out View More Details
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(4) DRIVEN GEAR OIL PUMP 3B7090650M 3B7-09065-0 $132.17 1
(5) BUSHING 9-20-20.8 3B7090690M 3B7-09069-0 $0.00 1 Sold Out View More Details
(6) BALL JOINT C 3B7052440M 3B7-05244-0 $5.55 1
(7) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(8) LINK ROD OIL PUMP 3B7090530M 3B7-09053-0 $8.05 1
(9) NUT 9301060500M 930106-0500 $0.86 2
(10) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 2
(11) SNAP RETAINER D=5 9517030500M 951703-0500 $0.65 2
(12) OIL TANK 3B7710101M 3B7-71010-1 90A #19698~ $108.15 1
(13) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(14) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 3
(15) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(16) BOLT 9101030630M 910103-0630 $1.21 3
(17) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(18) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(19) OIL TANK CAP 3C8710150M 3C8-71015-0 90A #19698~ $10.12 1
(20) GASKET 36-52-2 3C8710160M 3C8-71016-0 90A #19698~ $2.56 1
(21) TANK CAP HOOK 3C8710170M 3C8-71017-0 90A #19698~ $10.12 1
(22) TANK CAP CHECK VALVE 3C8710180M 3C8-71018-0 90A #19698~ $8.52 1
(23) OIL LEVEL SENSOR 3B7710200M 3B7-71020-0 $65.26 1
(24) OIL FILTER 3C7710300M 3C7-71030-0 $51.01 1
(24-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(24-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(24-3) FILTER 3C7710330M 3C7-71033-0 $12.70 1
(24-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(25) PLATE OIL FILTER 3B7710350M 3B7-71035-0 $0.00 1 Sold Out View More Details
(26) NUT 9301060800M 930106-0800 $1.99 1 Sold Out View More Details
(27) SPRING WASHER 9413030800M 941303-0800 $0.79 1
(28) OIL PIPE A 99AA60480M 99AA-6-0480 $12.80 1
(29) OIL PIPE B 99AA60720M 99AA-6-0720 $12.80 1
(30) CLIP ø9.5 3B7090540M 3B7-09054-0 $1.30 4
(31) OIL PIPE C 99AA40480M 99AA-4-0480 90A #18666~ $11.51 1 Sold Out View More Details
(32) CLIP ø8.5 3C7090560M 3C7-09056-0 $1.41 2
