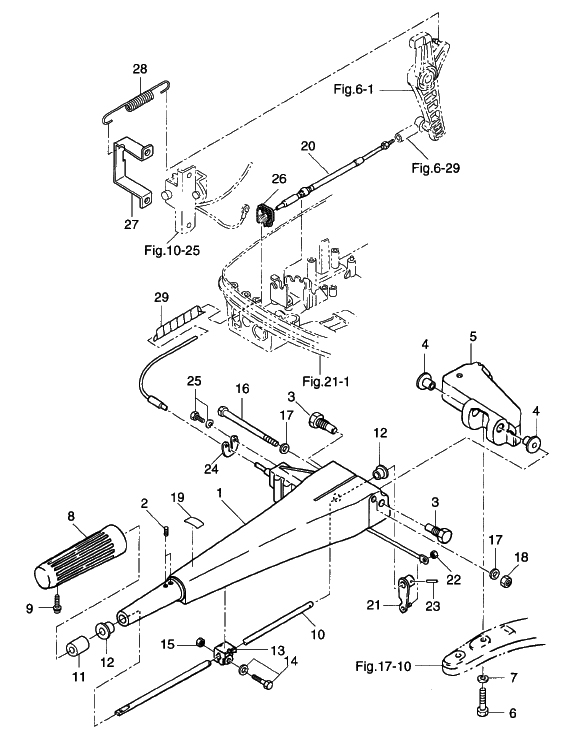

7. STEERING HANDLE (FOR F TYPE)

Click Here for Microfiche Usage Tip
(1) HANDLE A(2) SCREW, HANDLE GRIP STOP(3) BOLT, HANDLE A(3) BOLT, HANDLE A(4) COLLAR, 10.2-12-12(4) COLLAR, 10.2-12-12(5) HANDLE B(6) BOLT(7) SPRING WASHER(8) GRIP(9) SCREW(10) THROTTLE SHAFT(11) RUBBER, THROTTLE SHAFT A(12) BUSHING, 8.4-10-11(12) BUSHING, 8.4-10-11(13) FRICTION PIECE, GRIP(14) BOLT(15) NUT(16) BOLT, 8-105(17) WASHER(17) WASHER(18) NYLON NUT, 8P1.25(19) LABEL, THROTTLE(20) THROTTLE CABLE(21) LEVER, THROTTLE SHAFT(22) NYLON NUT, 4P0.7(23) SPRING PIN, 3-16(24) HOLDER, THROTTLE CABLE(25) BOLT(26) GROMMET, SHIFT ROD(27) STAY, THROTTLE ASSIST(28) SPRING, THROTTLE ASSIST(29) SPIRAL TUBE



Parts List
1996 :: 90 HP :: 2 Stroke Nissan NS90A :: STEERING HANDLE (FOR F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) HANDLE A 3B7S630111 3B7S63011-1 $0.00 1 Sold Out View More Details
(2) SCREW HANDLE GRIP STOP 353630290M 353-63029-0 $0.99 2 Sold Out View More Details
(3) BOLT HANDLE A 353632011M 353-63201-1 $0.00 2 Sold Out View More Details
(4) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(5) HANDLE B 3B7S630511 3B7S63051-1 $90.74 1
(6) BOLT 9161140845M 916114-0845 $0.00 2 Sold Out View More Details
(7) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(8) GRIP 350630120M 350-63012-0 $29.88 1
(9) SCREW 9208030520M 920803-0520 $0.70 1 Sold Out View More Details
(10) THROTTLE SHAFT 3B7630410M 3B7-63041-0 $0.00 1 Sold Out View More Details
(11) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(12) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 2
(13) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(14) BOLT 9101035620M 910103-5620 $1.30 1
(15) NUT 9301030600M 930113-0600 $0.84 1
(16) BOLT 8-105 3B7632030M 3B7-63203-0 $15.46 1 Sold Out View More Details
(17) WASHER 9401030800M 940113-0800 $0.84 2
(18) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(19) LABEL THROTTLE 334720190M 334-72019-0 $1.20 1
(20) THROTTLE CABLE 3B7636002M 3B7-63600-2 $94.31 1
(21) LEVER THROTTLE SHAFT 3B7630640M 3B7-63064-0 $25.33 1 Sold Out View More Details
(22) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.68 1
(23) SPRING PIN 3-16 9514030316M 951403-0316 $0.83 1
(24) HOLDER THROTTLE CABLE 3B7636040M 3B7-63604-0 $25.33 1 Sold Out View More Details
(25) BOLT 9101036512M 9101036512M $0.90 2
(26) GROMMET SHIFT ROD 3B7662260M 3B7-66226-0 $14.95 1
(27) STAY THROTTLE ASSIST 3B7637370M 3B7-63737-0 $43.73 1
(28) SPRING THROTTLE ASSIST 3B7637360M 3B7-63736-0 $9.66 1
(29) SPIRAL TUBE PROTECTOR 3B7636080 3B7-63608-0 $0.00 1 Sold Out View More Details
