4. CARBURETOR

Click Here for Microfiche Usage Tip

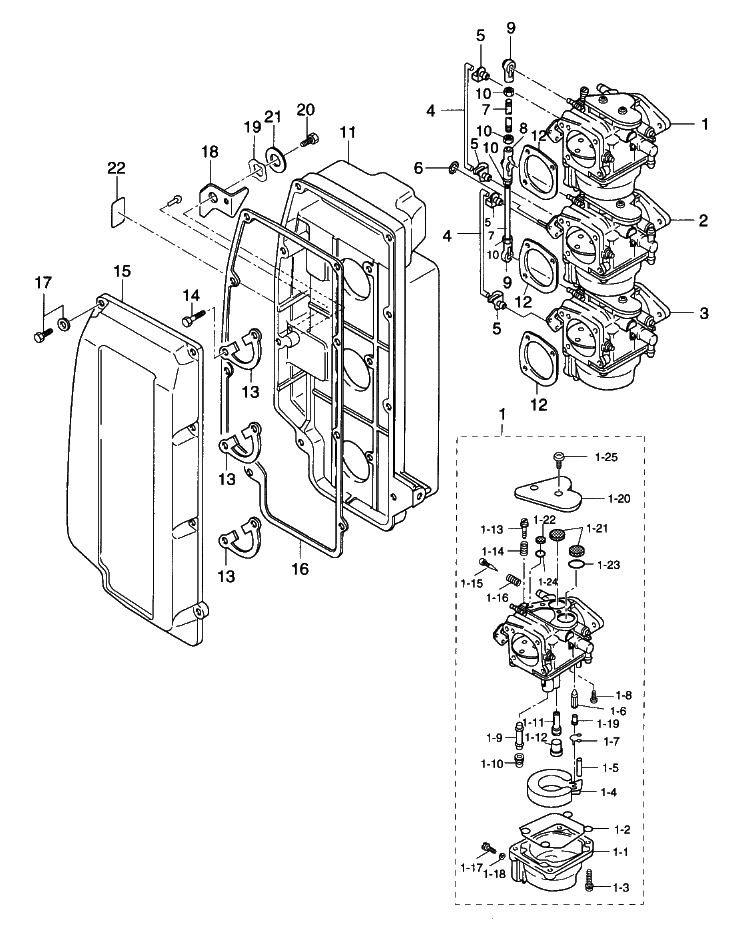

(1) CARBURETOR UPPER ASSY(1) CARBURETOR UPPER ASSY(1-1) FLOAT CHAMBER(1-2) O-RING, FLOAT CHAMBER(1-3) SCREW(1-4) FLOAT(1-5) ARM PIN, FLOAT(1-6) FLOAT VALVE(1-7) CLIP(1-8) SCREW(1-9) MAIN NOZZLE(1-10) MAIN JET #150(1-11) SLOW JET #75(1-12) RUBBER CAP(1-13) STOP SCREW(1-14) SPRING A(1-15) ADJUST SCREW(1-16) SPRING B(1-17) DRAIN SCREW(1-18) O-RING(1-19) VALVE PIN(1-20) CARBURETOR COVER(1-21) GASKET A, CARBURETOR COVER(1-22) GASKET B, CARBURETOR COVER(1-23) PLATE A, COVER GASKET(1-24) PLATE B, COVER GASKET(1-25) SCREW(2) CARBURETOR CENTER ASSY(3) CARBURETOR LOWER ASSY(4) CHOKE VALVE ROD(4) CHOKE VALVE ROD(5) ROD SNAP, 3.5-2(5) ROD SNAP, 3.5-2(5) ROD SNAP, 3.5-2(5) ROD SNAP, 3.5-2(6) O-RING, 1.5-2.5(7) THROTTLE ROD(7) THROTTLE ROD(8) CAP B, BALL JOINT(9) CAP C, BALL JOINT(9) CAP C, BALL JOINT(10) NUT(10) NUT(10) NUT(10) NUT(11) AIR SILENCER(12) GASKET, AIR SILENCER(12) GASKET, AIR SILENCER(12) GASKET, AIR SILENCER(13) LOCK PLATE, AIR SILENCER(13) LOCK PLATE, AIR SILENCER(13) LOCK PLATE, AIR SILENCER(14) BOLT(15) COVER, AIR SILENCER(16) GASKET, AIR SILENCER COVER(17) BOLT(18) LEVER, CHOKE(19) WAVE WASHER, D=10(20) BOLT(21) WASHER, 6.5-21-1(22) LABEL, CHOKE



Parts List
1996 :: 90 HP :: 2 Stroke Nissan NS90A :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR UPPER ASSY 3L9032000M 3L9-03200-0 90A #22253~ $253.15 1
(1-1) FLOAT CHAMBER 353032210M 353-03221-0 X3 UPPER CENTER LOWER $0.00 1 Sold Out View More Details
(1-2) O-RING FLOAT CHAMBER 346032220M 346-03222-0 X3 $6.54 1
(1-3) SCREW 9225036414M 922503-6414 X3 $1.27 4
(1-4) FLOAT 346032310M 346-03231-0 X3 $23.01 1
(1-5) ARM PIN FLOAT HINGE 346032320M 346-03232-0 X3 $2.31 1
(1-6) FLOAT VALVE 3B7032400M 3B7-03240-0 X3 $11.02 1
(1-7) CLIP 344032440M 344-03244-0 X3 $3.51 1
(1-8) SCREW 3F3032340M 3F3-03234-0 X3 $1.21 1
(1-9) MAIN NOZZLE 3L9032520M 3L9-03252-0 X3 90A #22253~ $11.02 1
(1-10) MAIN JET #150 3B7032510M 3B7-03251-0 X3 $5.48 1 Sold Out View More Details
(1-11) SLOW JET #75 3B7032550M 3B7-03255-0 X3 $11.80 1
(1-12) RUBBER CAP 346032560M 346-03256-0 X3 $2.25 1
(1-13) STOP SCREW 346032650M 346-03265-0 CARBURETOR UPPER $4.54 1
(1-14) SPRING A 346032670M 346-03267-0 CARBURETOR UPPER $2.08 1
(1-15) ADJUST SCREW 346032660M 346-03266-0 X3 $7.59 1
(1-16) SPRING B 353032680M 353-03268-0 X3 $1.44 1
(1-17) DRAIN SCREW 345032920M 345-03292-0 X3 $3.91 1
(1-18) O-RING 336032930M 336-03293-0 X3 $1.79 1
(1-19) VALVE PIN 334032420M 334-03242-0 X3 $1.61 1
(1-20) CARBURETOR COVER 3C7-03181-0 NA X3 $0.00 1 Sold Out View More Details
(1-21) GASKET A CARBURETOR 3C7031820M 3C7-03182-0 X3 $2.25 2
(1-22) GASKET B CARBURETOR 3C7031830M 3C7-03183-0 X3 $1.85 1
(1-23) PLATE A COVER GASKET 3C7031840M 3C7-03184-0 X3 $1.53 1
(1-24) PLATE B COVER GASKET 3C7031850M 3C7-03185-0 X3 $2.35 1
(1-25) SCREW 3C7031860M 3C7-03186-0 X3 $2.37 2
(2) CARBURETOR CENTER ASSY 3L9032070M 3L9-03207-0 90A #22253~ $253.15 1
(3) CARBURETOR LOWER ASSY 3L9032100M 3L9-03210-0 90A #22253~ $253.15 1
(4) CHOKE VALVE ROD 353671910M 353-67191-0 $2.58 2
(5) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 4
(6) O-RING 1.5-2.5 3C7032710M 3C7-03271-0 $1.04 1
(7) THROTTLE ROD 353637090M 353-63709-0 $4.83 2
(8) CAP B BALL JOINT 3B7052290M 3B7-05229-0 $2.62 1
(9) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 2
(10) NUT 9301060500M 930106-0500 $0.86 4
(11) AIR SILENCER 3B7024110M 3B7-02411-0 WITH RIVIT 2-5 $0.00 1 Sold Out View More Details
(12) GASKET AIR SILENCER 346024140M 346-02414-0 $3.50 3
(13) LOCK PLATE AIR SILENCER 345024171M 345-02417-1 $4.83 3
(14) BOLT 9101210618M 910121-0618 $0.38 6
(15) COVER AIR SILENCER 3B7024150M 3B7-02415-0 $41.45 1
(16) GASKET AIR SILENCER COVER 3B7024180M 3B7-02418-0 $22.03 1
(17) BOLT 9101035620M 910103-5620 $1.30 8
(18) LEVER CHOKE 3B7671520M 3B7-67152-0 $3.27 1
(19) WAVE WASHER D=10 9414031000M 941403-1000 $0.81 1
(20) BOLT 9101030610M 910114-0610 $0.76 1
(21) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(22) LABEL CHOKE 3B7720150M 3B7-72015-0 $2.31 1
