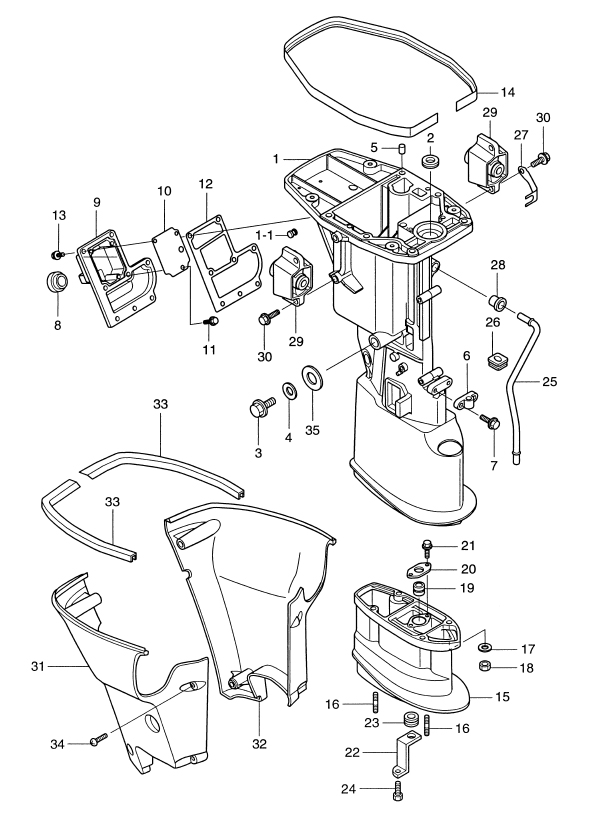

13. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING "S"(1) DRIVE SHAFT HOUSING "L"(1-1) EXHAUST PLUG(2) OIL SEAL,12.8-25-7(3) DRAIN BOLT(4) WASHER,14.5-24-1(5) DOWEL PIN, 6-12(6) CAM ROD HOLDER(7) BOLT(8) IDLE EXHAUST PORT GROMMET(9) IDLE EXHAUST PORT COVER(10) IDLE EXHAUST PORT PLATE(11) BOLT(12) IDLE EXHAUST PORT GASKET(13) BOLT(14) ENGINE BASEMENT SEAL(15) EXTENSION HOUSING "UL"(16) STUD BOLT(16) STUD BOLT(17) WASHER, 8.1-16-1.5(18) NUT(19) DRIVE SHAFT BUSHING(20) BUSHING STOPPER(21) BOLT(22) LOCK PLATE(23) WATER PIPE AUXILIARY MOUNT(24) SCREW(25) WATER PIPE "S"(25) WATER PIPE "L"(25) WATER PIPE "UL"(26) WATER PIPE AUXILIARY MOUNT(27) WATER PIPE LOCK PLATE(28) WATER PIPE SEAL (UPPER)(29) RUBBER MOUNT (UPPER)(29) RUBBER MOUNT (UPPER)(29) RUBBER MOUNT (UPPER)(29) RUBBER MOUNT (UPPER)(30) BOLT(30) BOLT(31) DRIVE SHAFT HOUSING COVER (RIGHT)(32) DRIVE SHAFT HOUSING COVER (LEFT)(33) APRON SEAL(33) APRON SEAL(34) TAPPING SCREW, 6-60(35) OIL DRAIN GROMMET



Parts List
2008 :: 9.9 HP :: 4 Stroke Tohatsu MFS9.9C :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3BKQ610200 3BKQ61020-0 $452.18 1
(1) DRIVE SHAFT HOUSING S 3BKQ610201 3BKQ61020-0 $452.18 1
(1) DRIVE SHAFT HOUSING L 3BKQ610300 3BKQ61030-0 $504.90 1
(1-1) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(2) OIL SEAL 12.8-25-7 350012151M 350-01215-1 $4.75 1
(3) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.32 1
(4) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.83 1
(5) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(6) CAM ROD HOLDER 3V6660370M 3V6-66037-0 FOR TRANSOM L & UL $1.82 1
(7) BOLT 9101135620M 910113-5620 OR 910113-5620 $1.30 2
(7) BOLT 9101E35620M 910113-5620 OR 910113-5620 $1.30 2
(8) IDLE EXHAUST PORT GROMMET 3BJ612070M 3BJ-61207-0 $1.50 1
(9) IDLE EXHAUST PORT COVER 3BJQ612080 3BJQ61208-0 $45.40 1
(10) IDLE EXHAUST PORT PLATE 3BJ621140M 3BJ-62114-0 $7.57 1
(11) BOLT 9101130512M 9101130512M OR 910113-0512 $0.60 3 Sold Out View More Details
(11) BOLT 9101E30512M 9101E3-0512 OR 910113-0512 $1.18 3
(12) IDLE EXHAUST PORT GASKET 3BJ612200M 3BJ-61220-0 $13.26 1
(13) BOLT 9101145616M 910114-5616 $0.69 8
(13) BOLT 9101F45616M 9101F4-5616 OR 910114-5616 $0.69 8
(14) ENGINE BASEMENT SEAL 3R3671160M 3R3-67116-0 $22.91 1
(15) EXTENSION HOUSING UL 3BJQ611100 3BJQ61110-0 FOR TRANSOM UL $176.70 1
(16) STUD BOLT 3BJ611110M 3BJ-61111-0 $2.59 4 Sold Out View More Details
(17) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 FOR TRANSOM UL $1.29 4
(18) NUT 9301030800M 930103-0800 OR 930113-0800 $1.99 4
(18) NUT 9301E30800M 9301E3-0800 OR 930113-0800 $1.99 4 Sold Out View More Details
(19) DRIVE SHAFT BUSHING 3BJ600030M 3BJ-60003-0 $44.32 1
(20) BUSHING STOPPER 3V1643320M 3V1-64332-0 $5.18 1 Sold Out View More Details
(21) BOLT 9101135612M 910113-5612 OR 910113-5612 $1.07 2
(21) BOLT 9101E35612M 910103-5612 OR 910113-5612 $1.07 2
(22) LOCK PLATE 3Z0652030M 3Z0-65203-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(23) RUBBER MOUNT 13-2.5 3V1652040M 3V1-65204-0 $2.42 1
(24) SCREW 9215030510M 921503-0510 OR 921513-0510 $0.81 1
(24) SCREW 9215E30510M 9215E3-0510 OR 921513-0510 $0.81 1
(25) WATER PIPE S 3H8651000M 3H8-65100-0 FOR TRANSOM S $13.99 1
(25) WATER PIPE L 3H8651100M 3H8-65110-0 FOR TRANSOM L $15.69 1
(25) WATER PIPE UL 3BJ651200M 3BJ-65120-0 FOR TRANSOM UL $22.72 1
(26) WATER PIPE AUXILIARY MOUNT 3R3652040M 3R3-65204-0 $2.82 1
(27) WATER PIPE LOCK PLATE 3R3652050M 3R3-65205-0 $4.56 1
(28) WATER PIPE SEAL (UPPER) 3R3652061M 3R3-65206-1 $2.19 1
(29) RUBBER MOUNT (UPPER) 3BJ613010M 3BJ-61301-0 FOR TRANSOM S & L $39.65 2
(29) RUBBER MOUNT (UPPER) 3BA613010M 3R3613010M OLD PART NO. 3R3-61301-0 FOR TRANSOM UL $82.46 2
(30) BOLT 9101035830M 9101E3-5830 OR 910113-5830 $1.89 4
(30) BOLT 9101E35830M 9101E3-5830 OR 910113-5830 $1.89 4
(31) DRIVE SHAFT HOUSING COVER (RIGHT) 3R3Q670031 3R3Q67003-1 STARBOARD $79.52 1
(32) DRIVE SHAFT HOUSING COVER (LEFT) 3R3Q670041 3R3Q67004-1 PORT $79.52 1
(33) APRON SEAL 3R3612130M 3R3-61213-0 $3.91 2
(34) TAPPING SCREW 6 - 60 3R0612170M 3R0-61217-0 $1.47 4
(35) OIL DRAIN GROMMET 3R3670170M 3R3-67017-0 $2.19 1
