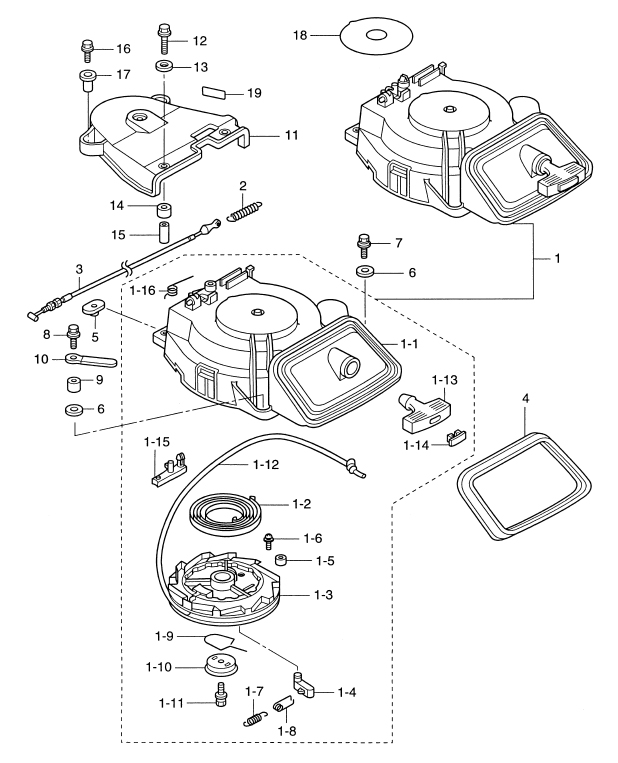

11. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER(1-1) STARTER CASE(1-2) STARTER SPRING(1-3) REEL(1-4) RATCHET(1-5) BUSHING(1-6) TAPPING SCREW(1-7) RETURN SPRING(1-8) RATCHET GUIDE(1-9) FRICTION SPRING(1-10) FRICTION PLATE(1-11) STARTER SHAFT BOLT(1-12) STARTER ROPE(1-13) STARTER HANDLE(1-14) STARTER HANDLE CAP(1-15) STARTER LOCK(1-16) STARTER LOCK SPRING(2) STARTER LOCK CAM SPRING(3) STARTER LOCK CABLE(4) STARTER SEAL(5) NUT(6) WASHER, 6.5-16-1.5(6) WASHER, 6.5-16-1.5(7) BOLT(8) BOLT(9) COLLAR, 6.5-10.5-10(10) CLAMP, 6.5-47.5P(11) BELT COVER(12) BOLT(13) WASHER, 6.5-16-1.5(14) RUBBER MOUNT, 9-16-9(15) COLLAR, 6.2-9-21(16) BOLT(17) COLLAR, 6.1-14-8.9(18) CAUTION DECAL "B"(19) SPARK PLUG DECAL (WITH RESISTANCE)



Parts List
2008 :: 9.9 HP :: 4 Stroke Tohatsu MFS9.9C :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3BJ050900M 3BJ-05090-0 $147.23 1
(1-1) STARTER CASE 3BJ051050M 3BJ-05105-0 $85.42 1
(1-2) STARTER SPRING 3H8050040M 3H8-05004-0 $18.50 1
(1-3) REEL 3BJ051040M 3BJ-05104-0 $26.50 1
(1-4) RATCHET 3BJ050030M 3BJ-05003-0 $4.42 1
(1-5) BUSHING 3BJ051350M 3BJ-05135-0 $5.58 1
(1-6) TAPPING SCREW 3BJ059130M 3BJ-05913-0 $2.22 1
(1-7) RETURN SPRING 3R3050120M 3R3-05012-0 $4.31 1
(1-8) RATCHET GUIDE 3H8051231M 3H8-05123-1 $4.08 1 Sold Out View More Details
(1-9) FRICTION SPRING 3R3050070M 3R3-05007-0 $6.72 1
(1-10) FRICTION PLATE 3R3050060M 3R3-05006-0 $4.81 1
(1-11) BOLT STARTER SHAFT 3R3051380M 3R3-05138-0 $1.38 1
(1-12) STARTER ROPE 3R3050130M 3R3-05013-0 ø5-1800 $9.25 1
(1-13) STARTER HANDLE 3BJ050190M 3BJ-05019-0 $8.79 1
(1-14) CAP STARTER HANDLE 3R3051310M 3R3-05131-0 $3.04 1
(1-15) STARTER LOCK 3R3052520M 3R3-05252-0 $4.03 1
(1-16) SPRING 3R3052160M 3R3-05216-0 $2.72 1
(2) STARTER LOCK CAM SPRING 3AC052580M 3AC-05258-0 $5.44 1
(3) STARTER LOCK CABLE 3BJ052070M 3BJ-05207-0 $38.18 1
(4) STARTER SEAL 3BJ675030M 3BJ-67503-0 $14.08 1
(5) NUT 3F3760421M 3F3-76042-1 $1.66 2 Sold Out View More Details
(6) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 3 Sold Out View More Details
(7) BOLT 9101030620M 910103-0620 OR 910113-0620 $1.04 2
(7) BOLT 9101E30620M 9101E3-0620 OR 910113-0620 $1.04 2
(8) BOLT 9101035630M 910113-5630 OR 910113-5630 $1.15 1
(8) BOLT 9101E35630M 9101E3-5630 OR 910113-5630 $1.15 1 Sold Out View More Details
(9) COLLAR 6.5-10.5-10 3H6636191M 3H6-63619-1 $4.19 1
(10) CLAMP 6.5-47.5P 309069720M 309-06972-0 STARTER LOCK CABLE $2.07 1
(11) BELT COVER 3R3063080M 3R3-06308-0 $8.66 1
(12) BOLT 9101130630M 910113-0630 OR 910113-0630 $1.21 2
(12) BOLT 9101E30630M 910114-5630 OR 910113-0630 $1.21 2
(13) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(14) RUBBER MOUNT 9-16-9 3R3063020M 3R3-06302-0 $2.71 2 Sold Out View More Details
(15) COLLAR 6.2-9-21 3R3063030M 3R3-06303-0 $1.47 2
(15) COLLAR 6.2-9-21 3R3063031M 3R3-06303-1 OR 3R3-06303-0 $1.47 2
(16) BOLT 9101030620M 910103-0620 OR 910113-0620 $1.04 2
(16) BOLT 9101E30620M 9101E3-0620 OR 910113-0620 $1.04 2
(17) COLLAR 6.1-14-8.9 3BJ062830M 3BJ-06283-0 $4.42 2
(18) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
(19) RESISTANCE SPARK PLUG DECAL 3H6720260M 3H6-72026-0 $3.04 1
