8. MAGNETO

Click Here for Microfiche Usage Tip

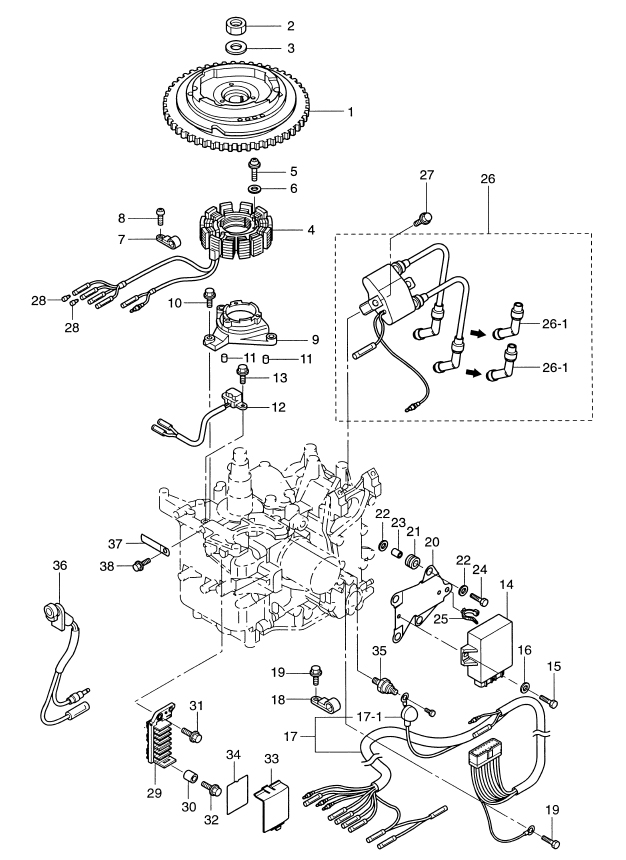

(1) FLYWHEEL CUP (WITH RING GEAR)(2) NUT,16-P1.5(3) WASHER,16-27-3.2(4) ALTERNATOR(5) SCREW(6) WASHER(7) CLAMP, 6.5-14L(8) SCREW(9) COIL BRACKET(10) BOLT, 6-25 PRE-COATED(11) DOWEL PIN, 6-12(11) DOWEL PIN, 6-12(12) PULSER COIL(13) BOLT(14) C.D. UNIT(15) BOLT, 6-16 PRE-COATED(16) WASHER, 6-16-1.5(17) C.D. UNIT CORD ASSY(17-1) GROMMET(18) CLAMP, 6.5-14L(19) BOLT(19) BOLT(20) C.D. UNIT BRACKET(21) RUBBER MOUNT(22) WASHER, 6-16-1.5(22) WASHER, 6-16-1.5(23) COLLAR, 6.2-9-8.7(24) BOLT(25) LEAD WIRE BAND,135(26) IGNITION COIL(26-1) PLUG CAP (WITH RESISTANCE)(26-1) PLUG CAP (WITH RESISTANCE)(27) BOLT(28) CABLE TERMINAL PLUG(28) CABLE TERMINAL PLUG(29) CABLE TERMINAL HOLDER(30) COLLAR, 6-8-6(31) BOLT(32) BOLT(33) TERMINAL HOLDER COVER(34) WIRING DIAGRAM DECAL(34) WIRING, DIAGRAM DECAL(35) OIL PRESSURE SWITCH(36) WARNING LAMP(37) CLAMP, 6.5-67P(38) BOLT



Parts List
2008 :: 9.9 HP :: 4 Stroke Tohatsu MFS9.9C :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP (WITH RING GEAR) 3BJ061910M 3BJ-06191-0 $145.14 1
(2) NUT 16-P1.5 9311211600M 931121-1600 $3.04 1
(3) WASHER 16-27-3.2 3H8001330M 3H8-00133-0 $1.47 1
(4) ALTERNATOR 3BJ060230M 3BJ-06023-0 $116.01 1
(5) SCREW 9215036630M 921503-6630 $1.06 3
(6) WASHER 9402030600M 940203-0600 $0.46 3
(7) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(8) SCREW 9215030616M 9215030616M OR 921513-0616 $0.98 1
(8) SCREW 9215E30616M 9215E3-0616 OR 921513-0616 $0.98 1
(9) COIL BRACKET 3V6060080M 3V6-06008-0 $23.97 1
(10) BOLT 6-25 PRE-COATED 3AD068640M 3AD-06864-0 $1.50 3
(11) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(12) PULSER COIL 3BJ060710M 3BJ-06071-0 $32.39 1
(13) BOLT 9101035514M 910103-5514 $0.90 2
(14) C.D. UNIT 3BJ060600M 3BJ-06060-0 $176.70 1
(15) BOLT 6-16 PRECOATED 3V1601080M 3V1-60108-0 $1.43 2
(16) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(17) C.D. UNIT CORD ASSY 3BJ061670M 3BJ-06167-0 $85.42 1
(17-1) GROMMET OIL PRESSURE SWITCH 3H6076120M 3H6-07612-0 $2.77 1
(18) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(19) BOLT 9101035612M 910103-5612 $1.07 2
(20) C.D. UNIT BRACKET 3BJ060610M 3BJ-06061-0 $0.00 1 Sold Out View More Details
(21) RUBBER MOUNT 3AC069200M 3AC-06920-0 $1.04 4
(22) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 8 Sold Out View More Details
(23) COLLAR 6.2-9-8.7 3BJ063030M 3BJ-06303-0 $2.21 4
(24) BOLT 9101030620M 910103-0620 OR 910113-0620 $1.04 4
(24) BOLT 9101E30620M 9101E3-0620 OR 910113-0620 $1.04 4
(25) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 $2.22 1
(26) IGNITION COIL 3BJ060400M 3BJ-06040-0 $58.91 1
(26-1) PLUG CAP (WITH RESISTANCE) 3AC069990M 3AC-06999-0 $14.73 2
(27) BOLT 9101035625M 910103-5625 $1.47 2
(28) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 7 FOR MF. 4 FOR EF 2 FOR EP $1.50 0
(29) CABLE TERMINAL HOLDER 3BJ062810M 3BJ-06281-0 WITH COLLAR $15.16 1
(30) COLLAR 6-8-6 174350120M 174-35012-0 $2.86 1
(31) BOLT 9101135616M 910113-5616 UPPER OR 910113-5616 $1.15 1
(31) BOLT (OR 910113-5616) 9101E35616M 910113-5616 UPPER / OR 910113-5616 $1.15 1
(32) BOLT 9101135612M 910113-5612 LOWER OR 910113-5612 $1.07 1
(32) BOLT 9101E35612M 910103-5612 LOWER / OR 910113-5612 $1.07 1
(33) TERMINAL HOLDER COVER 3BJ069020M 3BJ-06902-0 $7.37 1
(34) WIRING DIAGRAM DECAL 3BJ720280M 3BJ-72028-0 FOR MF EF $3.45 1 Sold Out View More Details
(34) WIRING DIAGRAM DECAL 3BK720280M 3BK-72028-0 FOR EP $0.00 1 Sold Out View More Details
(34) WIRING DIAGRAM DECAL 3BK720281M 3BK-72028-1 FOR EP/EPT $0.00 1 Sold Out View More Details
(35) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(36) WARNING LAMP 3R3710400M 3R3-71040-0 $21.44 1
(37) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(38) BOLT 9101035612M 910103-5612 $1.07 1
(38) BOLT 9101135612M 910113-5612 OR 910113-5612 $1.07 1
