7. INTAKE VALVE & EXHAUST VALVE

Click Here for Microfiche Usage Tip

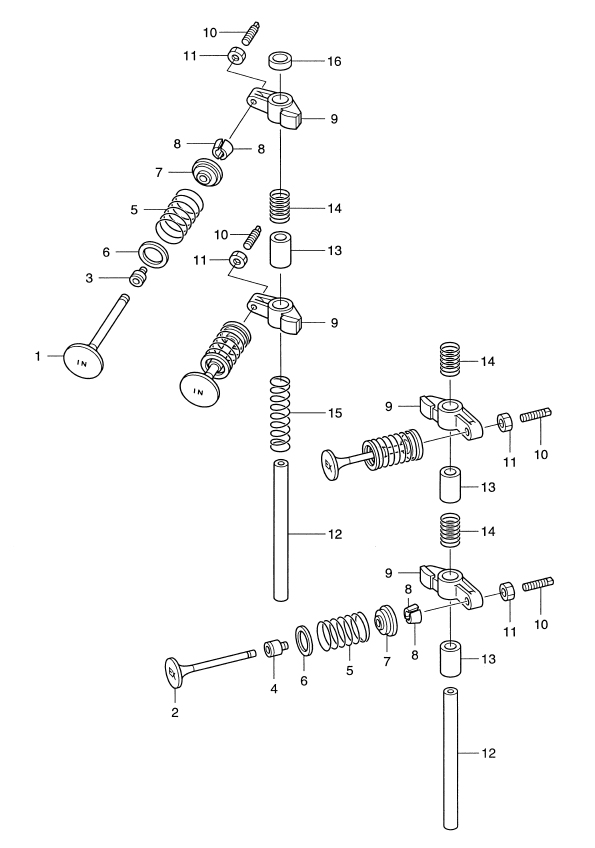

(1) INTAKE VALVE(2) EXHAUST VALVE(3) INTAKE VALVE STEM SEAL(4) EXHAUST VALVE STEM SEAL(5) VALVE SPRING(5) VALVE SPRING(6) VALVE SPRING SEAT(6) VALVE SPRING SEAT(7) RETAINER(7) RETAINER(8) COTTER(8) COTTER(8) COTTER(8) COTTER(9) ROCKER ARM (T=17)(9) ROCKER ARM (T=17)(9) ROCKER ARM (T=17)(9) ROCKER ARM (T=17)(10) ADJUSTING SCREW(10) ADJUSTING SCREW(10) ADJUSTING SCREW(10) ADJUSTING SCREW(11) ADJUSTING NUT(11) ADJUSTING NUT(11) ADJUSTING NUT(11) ADJUSTING NUT(12) ROCKER ARM SHAFT(12) ROCKER ARM SHAFT(13) COLLAR, 13.1-15.9-22.5(13) COLLAR, 13.1-15.9-22.5(13) COLLAR, 13.1-15.9-22.5(14) ROCKER SHAFT SPRING(14) ROCKER SHAFT SPRING(14) ROCKER SHAFT SPRING(15) ROCKER SHAFT SPRING(16) WASHER, 13.2-21.7-2



Parts List
2008 :: 9.9 HP :: 4 Stroke Tohatsu MFS9.9C :: INTAKE VALVE & EXHAUST VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE VALVE 3AE079010M 3AE-07901-0 $20.62 2
(2) EXHAUST VALVE 3AE079020M 3AE-07902-0 $25.02 2
(3) INTAKE VALVE STEM SEAL 3R3072040M 3R3-07204-0 BLACK $2.59 2
(4) EXHAUST VALVE STEM SEAL 3R3072060M 3R3-07206-0 GREEN $2.59 2 Sold Out View More Details
(5) VALVE SPRING 3AE072030M 3AE-07203-0 L=35 $3.43 4
(6) VALVE SPRING SEAT 3H6072050M 3H6-07205-0 $1.30 4
(7) RETAINER 3AE079210M 3AE-07921-0 $5.30 4
(8) COTTER 3AE079230M 3AE-07923-0 $1.41 8
(9) ROCKER ARM (T=17) 3AE072350M 3AE-07235-0 $31.15 4
(10) ADJUSTING SCREW 3R0072380M 3R0-07238-0 $2.74 4
(11) ADJUSTING NUT 3H8072370M 3H8-07237-0 $1.93 4
(12) ROCKER ARM SHAFT 3Y2079200M 3Y2-07920-0 $0.00 2 Sold Out View More Details
(13) COLLAR 3H8072390M 3H8-07239-0 $0.00 3 Sold Out View More Details
(14) SPRING ROCKER SHAFT (OLD) 3H8072250M 3H8-07225-0 L=30 $1.50 3
(15) SPRING 3H8072290M 3H8-07229-0 L=51 $1.50 1
(16) WASHER 13.2-21.7-2 (NEW) 3R3072270M 3R3-07227-0 $0.97 1
