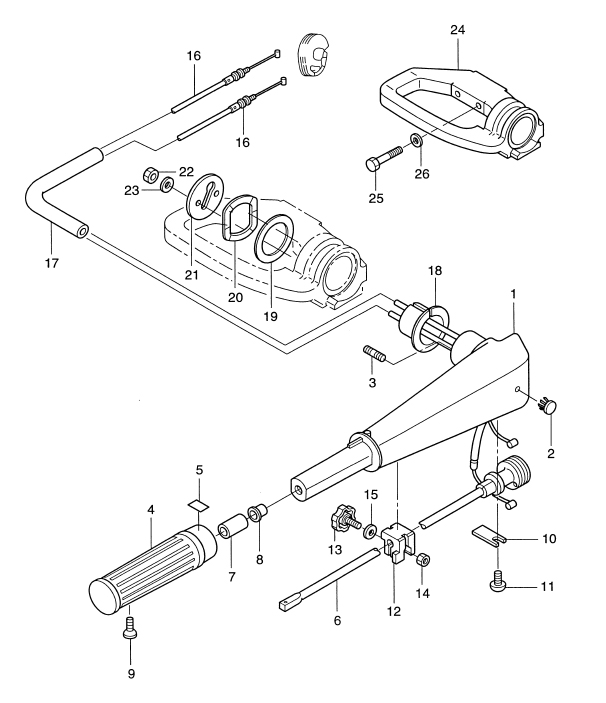

12. TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE(2) PLASTIC RIVET, 6.5(3) STUD BOLT(4) GRIP(5) THROTTLE DECAL(6) THROTTLE SHAFT(7) THROTTLE SHAFT DAMPER(8) BUSHING, 8.4-10-11(9) SCREW(10) THROTTLE SHAFT SUPPORTER(11) SCREW(12) FRICTION PIECE(13) ADJUSTING SCREW(14) NUT(15) WASHER(16) THROTTLE CABLE(16) THROTTLE CABLE(17) PROTECTOR TUBE(18) TILLER HANDLE BUSHING(19) WASHER, 39-52-1(20) WAVE WASHER, 39.5-52-1.2(21) TILLER HANDLE COVER(22) NUT(23) WASHER(24) STEERING BRACKET(25) BOLT, 10-80 P1.5(26) WASHER



Parts List
2008 :: 9.9 HP :: 4 Stroke Nissan NSF9.9C :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE 3R3Q630110 3R3Q63011-0 FOR MF & EF $47.36 1
(2) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(3) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(4) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(5) THROTTLE DECAL 3V9720190M 3V9-72019-0 FOR MF & EF $2.19 1
(6) THROTTLE SHAFT 3R3630410M 3R3-63041-0 $12.36 1
(7) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(8) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 1
(9) SCREW 920830518M 920830518M OR 920813-0518 $0.92 1
(9) SCREW 9208E30518M 9208E3-0518 OR 920813-0518 $0.92 1
(10) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 FOR MF & EF $2.31 1
(11) SCREW 9215030612M 921513-0612 OR 921513-0612 $0.93 1
(11) SCREW 9215E30612M 9215E3-0612 OR 921513-0612 $0.93 1
(12) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(13) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(14) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(14) NUT 9301E30600M 9301E3-0600 OR 930113-0600 $0.52 1 Sold Out View More Details
(15) WASHER 9401130600M 940113-0600 OR 940113-0600 $0.83 1
(15) WASHER 9401E30600M 9401E3-0600 OR 940113-0600 $0.00 1 Sold Out View More Details
(16) THROTTLE CABLE 3R3636000M 3R3-63600-0 $0.00 2 Sold Out View More Details
(17) PROTECTION TUBE 3R0061570M 3R0-06157-0 FOR MF & EF $2.58 1
(18) BUSHING HANDLE 3R3631020M 3R3-63102-0 $1.22 1
(19) WASHER 39 - 52 -1 3R3631080M 3R3-63108-0 $1.27 1
(20) WAVE WASHER 39 - 52 -1.2 3R3631090M 3R3-63109-0 $5.64 1
(21) PLATE STEERING HANDLE 3R3631070M 3R3-63107-0 FOR MF & EF $3.37 1
(22) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 2
(22) NUT 9301E30600M 9301E3-0600 OR 930113-0600 $0.52 2 Sold Out View More Details
(23) WASHER 9401130600M 940113-0600 OR 940113-0600 $0.83 2
(23) WASHER 9401E30600M 9401E3-0600 OR 940113-0600 $0.00 2 Sold Out View More Details
(24) STEERING BRACKET 3R3Q620010 3R3Q62001-0 $70.24 1
(25) BOLT 10 - 80 P1.5 3R3620940M 3R3620940M FOR MF & EF $6.84 2
(25) BOLT 10-80 P1.5 3R3620941 3R3-62094-1 FOR MF/EF $6.84 2
(26) WASHER 9401031000M 940103-1000 OR 940113-1000 $1.50 2
(26) WASHER 9401E31000M 940113-1000 OR 940113-1000 $1.50 2
