5. CARBURETOR

Click Here for Microfiche Usage Tip

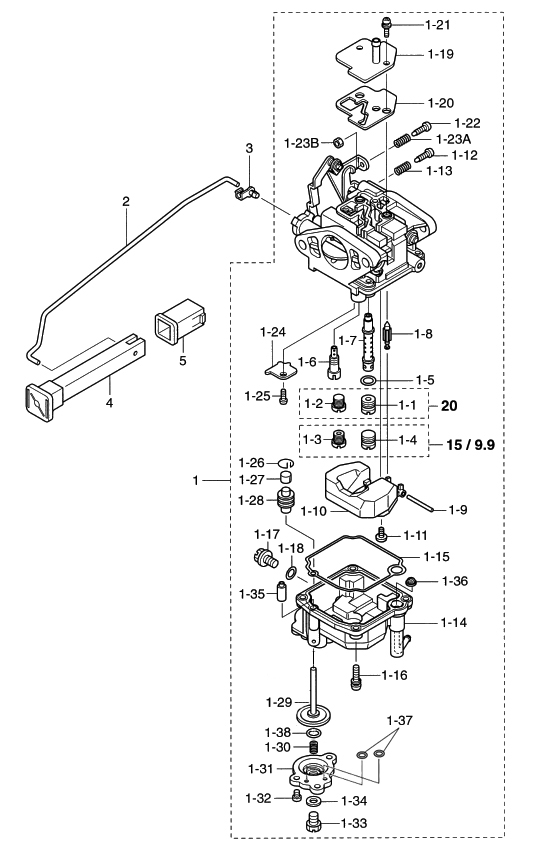

(1) CARBURETOR(1-1) MAIN JET #121(1-2) PLUG(1-3) MAIN JET #88(1-4) PLUG(1-5) O-RING(1-6) SLOW JET #43(1-7) MAIN NOZZLE(1-8) FLOAT VALVE(1-9) FLOAT ARM PIN(1-10) FLOAT(1-11) SCREW(1-12) STOP SCREW(1-13) SPRING(1-14) FLOAT CHAMBER(1-15) FLOAT CHAMBER GASKET(1-16) SCREW(1-17) DRAIN SCREW(1-18) GASKET(1-19) CARBURETOR COVER(1-20) CARBURETOR COVER GASKET(1-21) SCREW(1-22) STOP SCREW(1-23A) SPRING(1-23B) NUT(1-24) PLATE(1-25) SCREW(1-26) RETAINING RING(1-27) CAP(1-28) RUBBER BOOT(1-29) PLUNGER COMPLETE(1-30) COIL SPRING(1-31) DIAPHRAGM COVER(1-32) SCREW(1-33) DRAIN SCREW(1-34) DRAIN SCREW GASKET(1-35) CHECK VALVE(1-36) FILTER(1-37) O-RING(1-38) O-RING, 1.5-10.7(2) CHOKE LINK ROD(3) ROD SNAP, 3.2-2(4) CHOKE ROD(5) BUSHING



Parts List
2008 :: 9.9 HP :: 4 Stroke Nissan NSF9.9C :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3FS031000M 3FS-03100-0 FOR MF & EF (3FSFA) $252.40 1
(1-1) MAIN JET #121 3BJ044210M 3BJ-04421-0 FOR 20 ONLY $11.69 0
(1-2) PLUG 3V2031690M 3V2-03169-0 FOR 20 ONLY $5.73 0
(1-3) MAIN JET #88 3FS044880M 3FS-04488-0 FOR 9.9 ONLY $11.60 1
(1-4) PLUG (FOR EU) 3V1031690M 3V1-03169-0 FOR 9.9 / 15 ONLY $5.73 1
(1-5) O-RING 3V1031160M 3V1-03116-0 $1.50 1
(1-6) SLOW JET #43 3FS045430M 3FS-04543-0 $16.71 1
(1-7) MAIN NOZZLE 3FS031410M 3FS-03141-0 FOR MF & EF $16.84 1
(1-8) FLOAT VALVE 3V1031471M 3V1-03147-1 $15.02 1
(1-9) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.39 1
(1-10) FLOAT 3C8031250M 3C8-03125-0 $14.32 1
(1-11) SCREW 9217030406M 920703-0406 $0.67 1
(1-12) STOP SCREW 3V2031790M 3V2-03179-0 L=18 $3.36 1
(1-13) SPRING 3V2031570M 3V2-03157-0 L=14 $2.42 1
(1-14) FLOAT CHAMBER 3FS031200M 3FS-03120-0 $45.25 1
(1-15) FLOAT CHAMBER GASKET 3V1031210M 3V1-03121-0 $4.86 1
(1-16) SCREW 9225036412M 922503-6412 $1.47 4
(1-17) DRAIN SCREW 3V1031920M 3V1-03192-0 $3.28 1
(1-18) DRAIN SCREW GASKET 3V1031930M 3V1-03193-0 $2.40 1
(1-19) CARBURETOR COVER 3AA031810M 3AA-03181-0 $0.00 1 Sold Out View More Details
(1-20) CARBURETOR COVER GASKET 3AA031820M 3AA-03182-0 $5.92 1
(1-21) SCREW 9225036410M 922503-6410 $1.79 2
(1-22) STOP SCREW 3V1031790M 3V1-03179-0 L=15 $3.32 1
(1-23A) SPRING 3V2031570M 3V2-03157-0 FOR 15/20HP ONLY $2.42 0
(1-23B) NUT 3V1031910M 3V1-03191-0 $5.32 1
(1-24) PLATE 3V1031280M 3V1-03128-0 $2.26 1
(1-25) SCREW 9225030305M 922503-0305 $0.00 1 Sold Out View More Details
(1-26) RETAINING RING 3AA031890M 3AA-03189-0 $3.63 1 Sold Out View More Details
(1-27) CAP 3AA031900M 3AA-03190-0 $2.58 1
(1-28) RUBBER BOOT 3AA033110M 3AA-03311-0 $4.28 1
(1-29) PLUNGER COMPLETE 3AA033150M 3AA-03315-0 $18.75 1
(1-30) COIL SPRING 3AA033140M 3AA-03314-0 $3.11 1
(1-31) DIAPHRAGM COVER 3Y0031970M 3Y0-03197-0 $10.96 1
(1-32) SCREW 9215030408M 921503-0408 $0.75 3
(1-33) DRAIN SCREW 3AA031920M 3AA-03192-0 $8.00 1
(1-34) DRAIN SCREW GASKET 3AA031930M 3AA-03193-0 $3.31 1
(1-35) CHECK VALVE 3FS031980M 3FS-03198-0 $5.27 1
(1-36) FUEL FILTER 3BJ022340M 3BJ-02234-0 $2.86 1
(1-37) O-RING 3BJ032430M 3BJ-03243-0 $2.22 2
(1-38) O-RING 1.5-10.7 3H8076320M 3H8-07632-0 15/20 $2.01 0
(2) CHOKE LINK ROD 3BH671920M 3BH-67192-0 FOR MF & EF $6.21 1
(3) ROD SNAP 3.2-2 3BJ671960M 3BJ-67196-0 FOR MF & EF $1.59 1
(4) CHOKE ROD 3C8671511M 3C8-67151-0 FOR MF & EF $5.75 1 Sold Out View More Details
(5) BUSHING 3C8671560M 3C8-67156-0 FOR MF & EF $3.31 1
