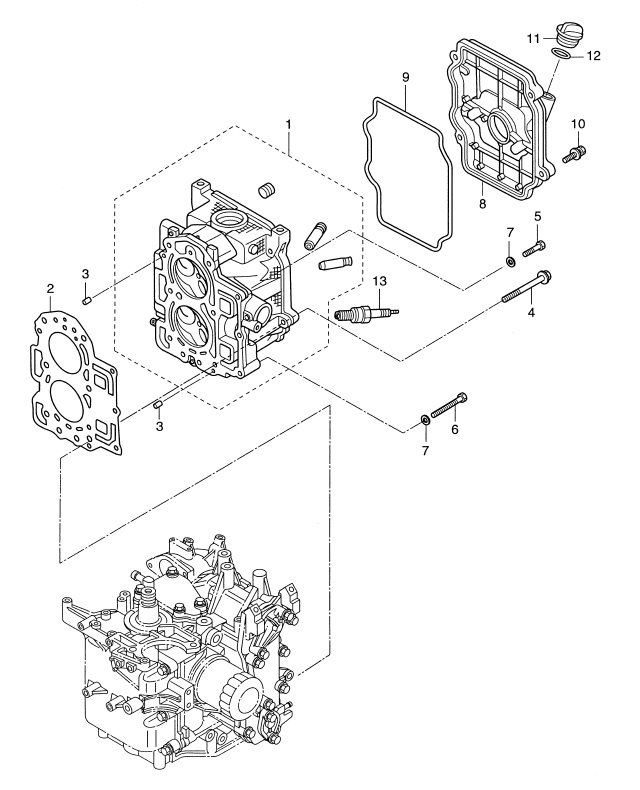

1. CYLINDER HEAD

Click Here for Microfiche Usage Tip
(1) CYLINDER HEAD(2) CYLINDER HEAD GASKET(3) DOWEL PIN, 6-12(3) DOWEL PIN, 6-12(4) CYLINDER HEAD BOLT(5) BOLT(6) BOLT(7) WASHER(7) WASHER(8) CYLINDER HEAD COVER(9) CYLINDER HEAD COVER GASKET(10) BOLT(11) ENGINE OIL FILLER CAP(12) O-RING, 3.1-24.4(13) SPARK PLUG



Parts List
2008 :: 9.9 HP :: 4 Stroke Nissan NSF9.9C :: CYLINDER HEAD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER HEAD 3BKB010010 3BKB01001-0 $0.00 1 Sold Out View More Details
(2) CYLINDER HEAD GASKET 3BJ010050M 3BJ-01005-0 $24.79 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(4) BOLT CYLINDER HEAD 8 - 60 3H8010130M 3H8-01013-0 8-60 $2.13 6
(5) BOLT 9161140625M 916114-0625 $0.00 2 Sold Out View More Details
(5) BOLT 9161F40625M 9161F4-0625 OR 916114-0625 $0.00 2 Sold Out View More Details
(6) BOLT 9161190640M 916119-0640 $1.59 1
(6) BOLT 9161F90640M 9161F9-0640 OR 916119-0640 $1.59 1
(7) WASHER 9401130600M 940113-0600 OR 940113-0600 $0.83 3
(7) WASHER 9401E30600M 9401E3-0600 OR 940113-0600 $0.00 3 Sold Out View More Details
(8) CYLINDER HEAD COVER 3BKB010210 3BKB01021-0 OLD PART NO. 3H8B01021-0 $98.15 1
(9) CYLINDER HEAD COVER GASKET 3BJ010240M 3BJ-01024-0 RUBBER OLD PART NO. 3H8-01024-0 $9.14 1
(10) BOLT 9101145630M 910114-5630 $1.21 4
(10) BOLT 9101F45630M 9101F4-5630 OR 910114-5630 $1.21 4
(11) ENGINE OIL FILLER CAP 3R0710150M 3R0-71015-0 $3.31 1
(12) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(13) SPARK PLUG 970111103M 9701-1-1103 NGK: DCPR6E $6.50 2
