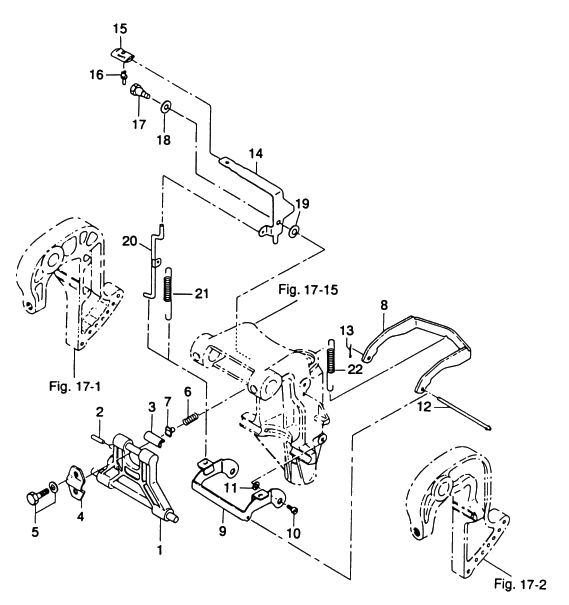

18. REVERSE LOCK

Click Here for Microfiche Usage Tip
(1) TILT STOPPER(2) SPRING PIN, 6-40(3) BUSHING, 10.2-12-29.5(4) SET PLATE, TILT STOPPER(5) BOLT(6) FRICTION SPRING, TILT STOPPER(7) SET PIECE(8) REVERSE LOCK(9) ARM, REVERSE LOCK(10) SHAFT, REVERSE LOCK ARM(11) WASHER, 6-16-1.5(12) ROD, REVERSE LOCK(13) SPLIT PIN, 2-12(14) LEVER, REVERSE LOCK(15) GRIP, REVERSE LOCK LEVER(16) STOPPER, GRIP(17) SHAFT, REVERSE LOCK LEVER(18) WAVE WASHER, D=8(19) WASHER, 6-16-1.5(20) LINK, REVERSE LOCK(21) SPRING, REVERSE LOCK LEVER(22) SPRING "S", REVERSE LOCK(22) SPRING "L", REVERSE LOCK



Parts List
2004 :: 40 HP :: 2 Stroke Tohatsu M40C :: REVERSE LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILT STOPPER 349S629931 349S62431-0 #043187XC~ / OLD PART NO. 349S62431-1 $41.18 1
(2) SPRING PIN 6 - 40 9514030640M 951403-0640 $1.07 1
(3) BUSHING 10.2 -12 - 29.5 346624370M 346-62437-0 $1.85 1
(4) SET PLATE TILT STOPPER 346624390M 346-62439-0 $6.90 1
(5) BOLT 9101135820M 910113-5820 $1.89 2
(6) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.42 1
(7) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.41 1
(8) REVERSE LOCK 346663220M 346-66322-0 $46.05 1
(9) ARM REVERSE LOCK 349663130M 349-66313-0 $34.51 1
(10) SHAFT REVERSE LOCK ARM 336663191M 336-66319-1 $1.67 2
(11) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(12) ROD REVERSE LOCK 346663210M 346-66321-0 $5.07 1
(13) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(14) LEVER; REVERSE REVERSE LOCK 349663110M 349-66311-0 $16.79 1
(15) GRIP LOCK LEVER 346663330M 346-66333-0 $4.83 1
(16) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.27 1
(17) SHAFT REVERSE LOCK LEVER 345052141M 345-05214-1 $8.29 1
(18) WAVE WASHER D=8 9414030800M 941403-0800 $0.90 2
(19) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(20) LINK REVERSE LOCK 349663120M 349-66312-0 $9.46 1
(21) SPRING REVERSE LOCK LEVER 346663231M 346-66323-1 $2.19 1
(22) SPRINGS REVERSE LOCK 346663310M 346-66331-0 FOR TRANSOM S $8.52 1
(22) SPRINGL REVERSE LOCK 3R0663320M 3R0-66332-0 FOR TRANSOM L UL $9.46 1
