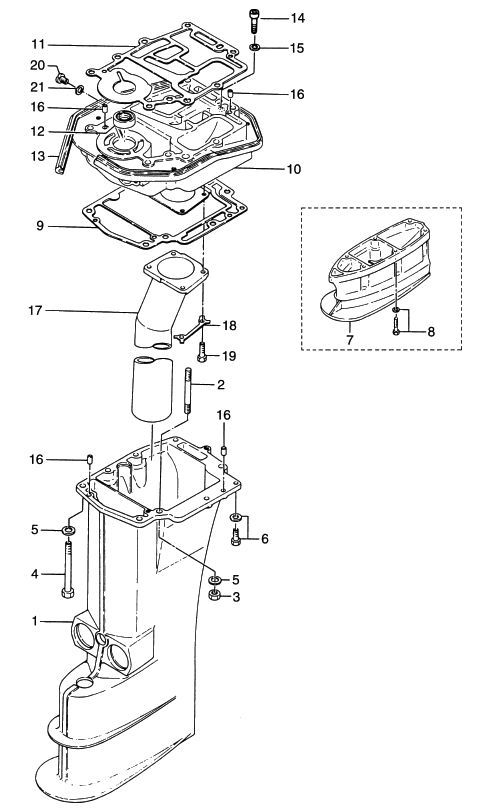

13. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING "S"(1) DRIVE SHAFT HOUSING "L"(2) STUD BOLT, DRIVE SHAFT HOUSING "S"(3) NUT, DRIVE SHAFT HOUSING "S"(4) BOLT(5) WASHER, 8.1-16-1.5(5) WASHER, 8.1-16-1.5(6) BOLT(7) EXTENSION HOUSING "UL"(8) BOLT(9) GASKET, DRIVE SHAFT HOUSING(10) ENGINE BASE(11) GASKET, ENGINE BASEMENT(12) OIL SEAL, 17-30-8(13) SEAL RUBBER, ENGINE BASE(14) BOLT, ENGINE BASE(15) SPRING WASHER(16) KNOCK, 6-12(16) KNOCK, 6-12(16) KNOCK, 6-12(16) KNOCK, 6-12(17) EXHAUST PIPE, "S"(17) EXHAUST PIPE, "L" & "UL"(18) LOCK PLATE, EXHAUST PIPE(19) BOLT(20) BOLT(21) GASKET, 8.1-15-1



Parts List
2004 :: 40 HP :: 2 Stroke Tohatsu M40C :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 345S610202 345S61020-2 FOR TRANSOM S $0.00 1 Sold Out View More Details
(1) DRIVE SHAFT HOUSING L 361S610301 361S61030-1 FOR TRANSOM L UL $0.00 1 Sold Out View More Details
(2) STUD BOLT DRIVE SHAFT HOUSING S 345611111M 345-61111-1 FOR TRANSOM S $8.52 1
(3) NUT 9301130800M 930113-0800 FOR TRANSOM S $1.99 1 Sold Out View More Details
(4) BOLT 9161130885M 916113-0885 FOR S = 7 / FOR L = 8 $3.50 8
(5) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.29 8
(6) BOLT 9101135620M 910113-5620 $1.30 1
(7) EXTENSION HOUSING UL 345S611100 345S61110-0 FOR TRANSOM UL $269.93 1 Sold Out View More Details
(8) BOLT 9101135840M 910113-5840 $3.17 6
(9) GASKET DRIVE SHAFT HOUSING 345610120M 345-61012-0 $13.20 1
(10) ENGINE BASE 345S013010 345S01301-0 $0.00 1 Sold Out View More Details
(11) GASKET ENGINE BASEMENT 345013030M 345-01303-0 $11.28 1
(12) OIL SEAL 17-30-8 345012150M 345-01215-0 $6.47 1
(13) SEAL RUBBER ENGINE BASE 345671160M 345-67116-0 $4.98 2
(14) BOLT ENGINE BASE 9102030640 910203-0640 $1.93 2
(15) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(16) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 4
(17) EXHAUST PIPE S 345023141M 345-02314-1 $52.85 1
(17) EXHAUST PIPE L & UL 361023110M 361-02311-0 $77.11 1
(18) LOCK PLATE EXHAUST PIPE 345023130M 345-02313-0 $0.00 2 Sold Out View More Details
(19) BOLT 9101130625M 910113-0625 $0.95 4
(20) WATER PLUG 9106130808M 910613-0808 $2.12 1
(21) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 1
