12. STARTER LOCK

Click Here for Microfiche Usage Tip

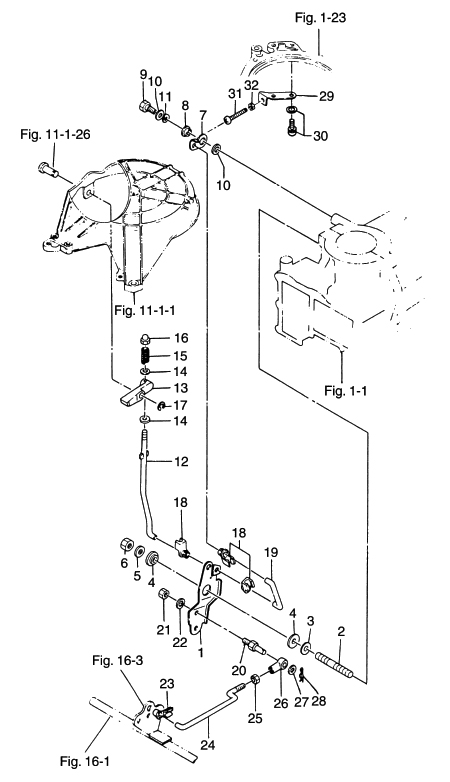

(1) LOCK ARM, STARTER(2) STUD BOLT(3) WASHER, 8.5-19.5-3.2(4) BUSHING, 8-14-4(4) BUSHING, 8-14-4(5) WASHER(6) NYLON NUT, 8P-1.25(7) STOP ARM, THROTTLE(8) BUSHING, 6.2-16-5(9) BOLT(10) WASHER(10) WASHER(11) WAVE WASHER(12) ROD, STARTER LOCK(13) LEVER, STARTER LOCK(14) WASHER(14) WASHER(15) SPRING, STARTER LOCK(16) CAP, STARTER LOCK LEVER(17) E-RING, D=6(18) ROD SNAP, 3.5-2(18) ROD SNAP, 3.5-2(19) ROD, THROTTLE STOP ARM(20) PIN, ROD JOINT(21) NUT(22) SPRING WASHER(23) ROD SNAP, 5-2.5(24) LINK, STARTER LOCK ARM(25) NUT(26) ROD JOINT o5(27) WASHER, 8.5-18-1.6(28) R-PIN, D -8(29) PLATE, THROTTLE ADJUST(30) SCREW(31) SCREW(32) NUT



Parts List
2004 :: 40 HP :: 2 Stroke Tohatsu M40C :: STARTER LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) LOCK ARM STARTER 361052110M 361-05211-0 $52.86 1
(2) STUD BOLT 9153140825M 915314-0825 $2.62 1
(3) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 1
(4) BUSHING 8-14-4 345637130M 345-63713-0 $1.85 2
(5) WASHER 9401130800M 940113-0800 $0.84 1
(6) NYLON NUT 8P-1.25 9304060800M 930406-0800 $1.99 1
(7) STOP ARM THROTTLE 345052130M 345-05213-0 $7.34 1
(8) BUSHING 6.2-16-5 346637210M 346-63721-0 $2.56 1
(9) BOLT 9101140620M 910114-0620 $0.90 1
(10) WASHER 9401130600M 940113-0600 $0.83 2
(11) WAVE WASHER D=10 9414031000M 941403-1000 $0.81 1
(12) ROD STARTER LOCK 345052171M 345-05217-1 $5.07 1
(13) LEVER STARTER LOCK 345052260M 345-05226-0 $6.90 1
(14) WASHER 9401030400M 940103-0400 $0.58 2
(15) SPRING STARTER LOCK 345052160M 345-05216-0 $1.61 1
(16) CAP STARTER LOCK LEVER 346052090M 346-05209-0 $1.85 1
(17) E-RING D=6 9453030600M 945303-0600 $0.83 1
(18) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 3
(19) ROD THROTTLE STOP ARM 345052211M 345-05221-1 $2.56 1
(20) CABLE PIN 353837280M 353-83728-0 $8.97 1
(21) NUT 9301060600M 930106-0600 $0.84 1
(22) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(23) ROD SNAP 5-2.5 345052240M 345-05224-0 $1.45 1
(24) LINK STARTER LOCK ARM 345052221M 345-05222-1 $5.55 1
(25) NUT 9301060500M 930106-0500 $0.86 1
(26) ROD JOINT ø5 346052340M 346-05234-0 $2.31 1
(27) WASHER 8.5-18-1.6 353837190M 353-83719-0 $2.39 1
(28) SNAP PIN D=8 9516030800M 951603-0800 $0.70 1
(29) PLATE THROTTLE ADJUST 348052330M 348-05233-0 $0.00 1 Sold Out View More Details
(30) SCREW 9215216510M 921521-6510 $0.44 2
(31) SCREW 9215030530M 921503-0530 $0.65 1
(32) NUT 9301060500M 930106-0500 $0.86 1
