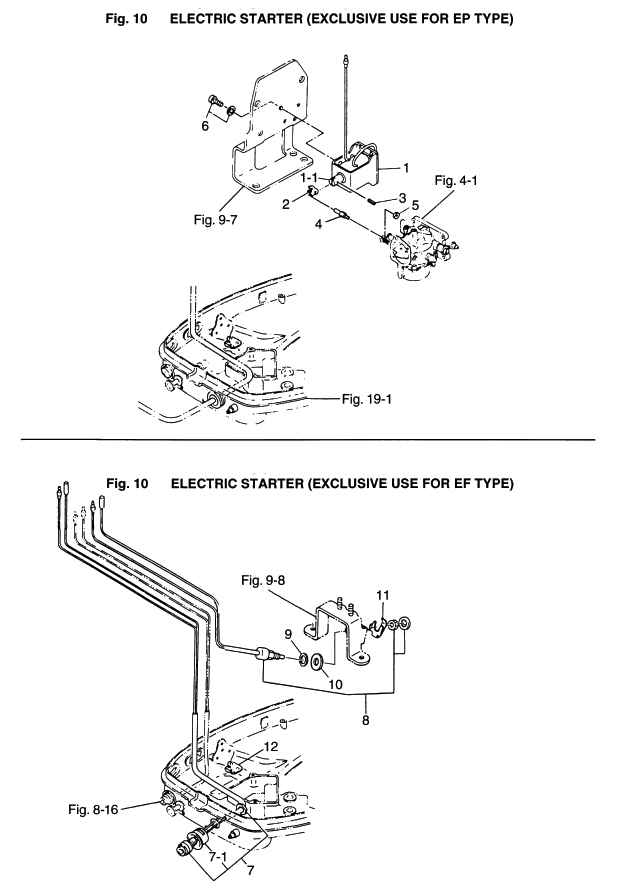

10. ELECTRIC STARTER

Click Here for Microfiche Usage Tip
(1) CHOKE SOLENOID(1-1) PLUNGER, CHOKE SOLENOID(2) HOOK, CHOKE SOLENOID(3) SPRING PIN, 3-12(4) ROD, CHOCK SHAFT(5) NYLON NUT, 4P-0.7(6) SCREW(7) MAIN SWITCH(7-1) PROTECTOR, MAIN SWITCH(8) NEUTRAL SWITCH(9) SPACER, NEUTRAL SWITCH(10) WASHER,12.5-24-1(11) ACTUATOR, NEUTRAL SWITCH(12) PLATE, NEUTRAL SWITCH



Parts List
2004 :: 40 HP :: 2 Stroke Tohatsu M40C :: ELECTRIC STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CHOKE SOLENOID 361760500M 361-76050-0 $88.09 1
(1-1) PLUNGER 361760730M 361-76073-0 $8.80 1
(2) CHOKE SOLENOID HOOK 346760570M 346-76057-0 $3.00 1
(3) SPRING PIN 3-12 9514030312M 951403-0312 $0.83 1
(4) ROD CHOCK SHAFT 346760721M 346-76072-1 $5.21 1
(5) NYLON NUT 4P-0.7 9304060400M 930406-0400 $1.68 1
(6) SCREW 9215036408M 921503-6408 $0.90 3
(7) MAIN SWITCH 361760260M 361-76026-0 $27.66 1
(7-1) PROTECTOR MAIN SWITCH 346760391M 346-76039-1 $4.38 1
(8) NEUTRAL SWITCH 361760800M 361-76080-0 $20.43 1
(9) SPACER NEUTRAL SWITCH 3M4760840M 3M4-76084-0 $1.44 1
(10) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 $2.31 1
(11) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 $4.02 1
(12) PLATE NEUTRAL SWITCH 361760820M 361-76082-0 $5.07 1
