4. CARBURETOR

Click Here for Microfiche Usage Tip

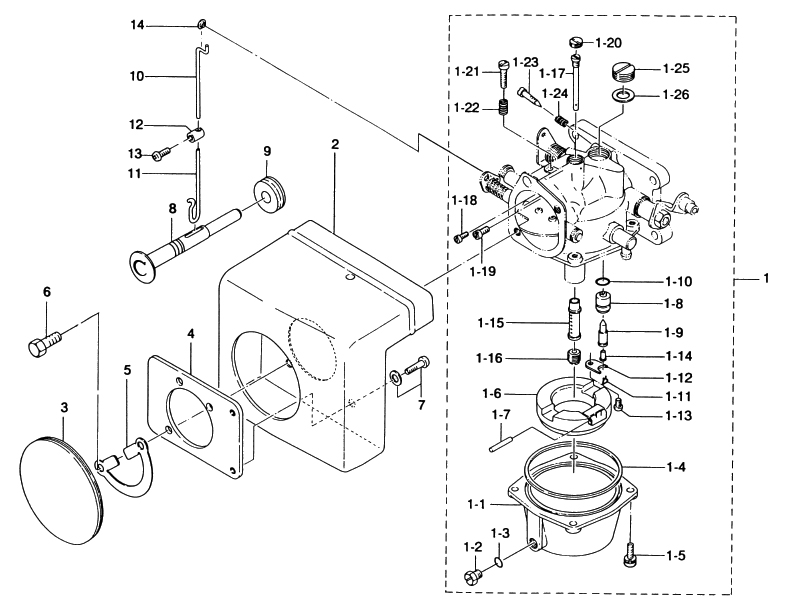

(1) CARBURETOR(1-1) FLOAT CHAMBER(1-2) DRAIN SCREW(1-3) O-RING(1-4) O-RING, 1.9-64(1-5) SCREW(1-6) FLOAT(1-7) ARM PIN, FLOAT(1-8) VALVE SEAT(1-9) FLOAT VALVE(1-10) O-RING, 1.3-5.7(1-11) CLIP(1-12) CLIP PLATE(1-13) SCREW(1-14) VALVE PIN(1-15) MAIN NOZZLE(1-16) MAIN JET # 220(1-17) PILOT JET # 110(1-18) MAIN AIR JET # 120(1-19) PILOT AIR JET # 110(1-20) PLUG SCREW "A"(1-21) STOP SCREW(1-22) SPRING "A"(1-23) ADJUST SCREW(1-24) SPRING "B"(1-25) PLUG SCREW "B"(1-26) WASHER, PLUG SCREW "B"(2) AIR SILENCER(3) COVER, AIR SILENCER(4) PLATE, AIR SILENCER(5) LOCK PLATE, AIR SILENCER(6) BOLT(7) SCREW(8) CHOKE ROD(9) GROMMET, CHOKE ROD(10) ROD "A", CHOKE LINK(11) ROD "B", CHOKE LINK(12) ROD, CHOKE LINK(13) SCREW(14) BUSHING, CHOKE LINK



Parts List
2004 :: 40 HP :: 2 Stroke Tohatsu M40C :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 345032000M 345-03200-0 $220.25 1
(1-1) FLOAT CHAMBER 336032210M 336-03221-0 $48.31 1
(1-2) DRAIN SCREW 345032920M 345-03292-0 $3.91 1
(1-3) O-RING 336032930M 336-03293-0 $1.79 1
(1-4) O-RING 1.9-64 336032220M 336-03222-0 $5.53 1
(1-5) SCREW 9225036412M 922503-6412 $1.47 4
(1-6) FLOAT 334032311M 334-03231-1 $25.33 1
(1-7) ARM PIN FLOAT 334032320M 334-03232-0 $2.91 1
(1-8) VALVE SEAT 345032400M 345-03240-0 $24.22 1
(1-9) FLOAT VALVE 3B7032400M 3B7-03240-0 $11.02 1
(1-10) O-RING 1.3-5.7 345032430M 345-03243-0 $1.27 1
(1-11) CLIP 344032440M 344-03244-0 $3.51 1
(1-12) CLIP PLATE 334032410M 334-03241-0 $1.85 1
(1-13) SCREW 9215210406M 921521-0406 $1.98 1
(1-14) VALVE PIN 334032420M 334-03242-0 $1.61 1
(1-15) MAIN NOZZLE 345032520M 345-03252-0 $18.20 1
(1-16) MAIN JET # 220 345032511M 345-03251-1 $5.73 1
(1-17) PILOT JET # 110 345032540M 345-03254-0 $14.17 1
(1-18) MAIN AIR JET # 120 345032530M 345-03253-0 $5.70 1
(1-19) PILOT AIR JET # 110 345032550M 345-03255-0 $8.34 1
(1-20) PLUG SCREW A 345032610M 345-03261-0 $2.39 1
(1-21) STOP SCREW 346032650M 346-03265-0 $4.54 1
(1-22) SPRING A 346032670M 346-03267-0 $2.08 1
(1-23) ADJUST SCREW 345032660M 345-03266-0 $7.59 1
(1-24) SPRING B 346032680M 346-03268-0 $1.44 1
(1-25) PLUG SCREW B 345032630M 345-03263-0 $2.07 1
(1-26) WASHER PLUG SCREW B 345032620M 345-03262-0 $0.60 1
(2) AIR SILENCER 345024110M 345-02411-0 $34.51 1
(3) COVER AIR SILENCER 345024150M 345-02415-0 $11.02 1
(4) PLATE AIR SILENCER 345024160M 345-02416-0 $11.02 1
(5) LOCK PLATE AIR SILENCER 345024171M 345-02417-1 $4.83 1
(6) BOLT 9101140616M 910114-5616 $0.69 2
(7) SCREW 9215035508M 921503-5508 $0.47 2
(8) CHOKE ROD 345671510M 345-67151-0 $6.59 1
(9) GROMMET 345671930M 345-67193-0 $3.00 1
(10) ROD A CHOKE LINK 345671911M 345-67191-1 $7.08 1
(11) ROD B CHOKE LINK 345671920M 345-67192-0 $2.56 1
(12) ROD CHOKE LINK 345671940M 345-67194-0 $2.56 1
(13) SCREW 9215030408M 921503-0408 $0.75 1
(14) BUSHING CHOKE LINK 345671951M 345-67195-1 $1.34 1
