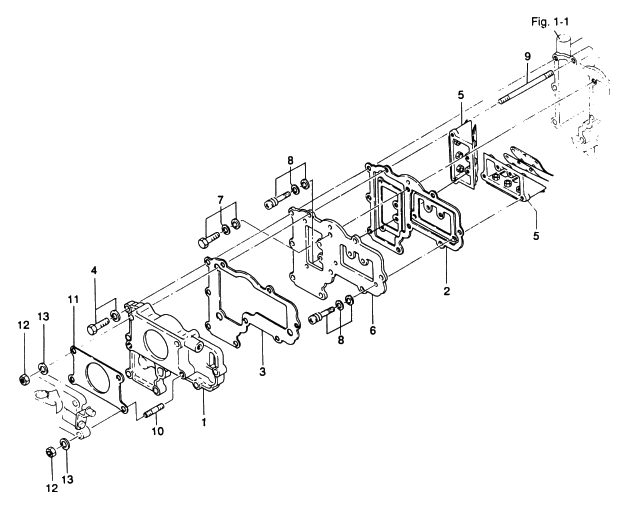

3. INLET - REED VALVE

Click Here for Microfiche Usage Tip
(1) INLET MANIFOLD(2) GASKET "A", INLET MANIFOLD(3) GASKET "B", INLET MANIFOLD(4) BOLT(5) REED VALVE ASSY(5) REED VALVE ASSY(6) PLATE, VALVE SEAT(7) BOLT(8) SCREW(8) SCREW(9) STUD BOLT(10) STUD BOLT(11) GASKET, CARBURETOR(12) NUT(12) NUT(13) SPRING WASHER(13) SPRING WASHER



Parts List
2004 :: 40 HP :: 2 Stroke Tohatsu M40C :: INLET - REED VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INLET MANIFOLD 345B020100 345B02010-0 $0.00 1 Sold Out View More Details
(2) GASKET A INLET MANIFOLD 345021040M 345-02104-0 $4.40 1
(3) GASKET B INLET MANIFOLD 345021050M 345-02105-0 $2.12 1
(4) BOLT 9101145630M 910114-5630 $1.21 7
(5) REED VALVE ASSY 345021001M 345-02100-1 $59.83 2
(6) PLATE VALVE SEAT 345021060M 345-02106-0 $0.00 1 Sold Out View More Details
(7) BOLT 9101217620M 910121-7620 $0.72 1
(8) SCREW 9215217412M 921521-7412 $0.33 8
(9) STUD BOLT 9153210655M 915321-0655 $2.76 2
(10) STUD BOLT 9153210620M 915321-0620 $1.70 2
(11) GASKET CARBURETOR 345020110M 345-02011-0 $3.68 1
(12) NUT 9301130600M 930113-0600 $0.84 4
(13) SPRING WASHER 9413030600M 941303-0600 $0.84 4
