20. SEPARATE FUEL TANK - ACCESSORIES

Click Here for Microfiche Usage Tip

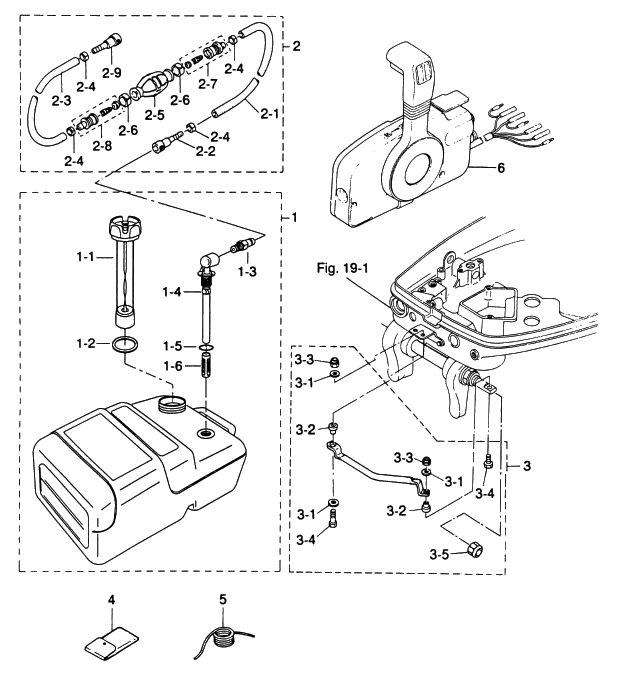

(1) FUEL TANK (25L)(1) FUEL TANK (25L)(1-1) FUEL GAUGE VENTED CAP(1-2) CAP GASKET(1-3) MALE QUICK CONNECTOR(1-4) ELBOW TUBING AND CLAMP ASSY(1-5) O-RING(1-6) FILTER(2) PRIMER BULB ASSY(2-1) FUEL PIPE(2-2) FUEL CONNECTOR (TANK SIDE, FEMALE)(2-3) FUEL PIPE(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-5) PRIMER BULB(2-6) CLAMP(2-6) CLAMP(2-7) JOINT "A" ASSY IN(2-8) JOINT "A" ASSY OUT(2-9) FUEL CONNECTOR (ENGINE SIDE, FEMALE)(3) DRAG LINK "B" ASSY(3-1) WASHER, 9.6-18-2(3-1) WASHER, 9.6-18-2(3-1) WASHER, 9.6-18-2(3-2) SPACER, DRAG LINK(3-2) SPACER, DRAG LINK(3-3) NYLON NUT, 3/8(3-3) NYLON NUT, 3/8(3-4) BOLT, 3/8-45(3-4) BOLT, 3/8-45(3-5) SEAL RING, DRAG LINK(4) TOOL(5) ROPE(6) REMOTE CONTROL BOX (RC5D)(6) REMOTE CONTROL BOX (RC5C)(6) REMOTE CONTROL BOX (RC5D)(6) REMOTE CONTROL BOX (RC5C)



Parts List
2004 :: 40 HP :: 2 Stroke Nissan NS40C :: SEPARATE FUEL TANK - ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK ASSY (25L) 3C7701770M 3C7-70177-0 TOHATSU $102.65 1
(1) FUEL TANK ASSY (25L) 99998FT26M 99998FT26M NISSAN $102.65 1
(1-1) FUEL GAUGE VENTED CAP ASSY 3C7700500M 3C7-70050-0 $0.00 1 Sold Out View More Details
(1-2) TANK CAP GASKET 3C7700210M 3C7-70021-0 $0.00 1 Sold Out View More Details
(1-3) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 $9.71 1
(1-4) ELBOW TUBING AND CLAMP ASSY 3C7701550M 3C7-70155-0 $13.52 1
(1-5) O-RING 3C7701990M 3C7-70199-0 $1.24 1
(1-6) FILTER 3C7701130M 3C7-70113-0 $3.20 1
(2) PRIMER BULB ASSY 3B7702003M 3B7-70200-3 $125.87 1
(2-1) RUBBER HOSE 98AB71600M 98AB-7-1600 $13.44 1
(2-2) FUEL CONNECTOR (TANK SIDE FEMALE) 3B2702810M 3B2-70281-0 $21.33 1
(2-3) RUBBER HOSE 98AB70700M 98AB-7-0700 $13.44 1
(2-4) CLAMP 332702010M 332-70201-0 $2.07 4
(2-5) PRIMER BULB 3C7702110M 3C7-70211-0 $22.31 1
(2-6) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(2-7) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(2-8) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(2-9) FUEL CONNECTOR (ENGINE SIDE FEMALE) 3B2702501M 3B2-70250-1 $21.46 1
(3) DRAG LINK B ASSY 361849051M 361-84905-1 FOR EP TYPE $72.80 1
(3-1) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(3-2) SPACER DRAG LINK 361849140M 361-84914-0 $8.80 2
(3-3) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(3-4) BOLT 3/8-45 353849170M 353-84917-0 $8.22 2
(3-5) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
(4) TOOL 3C8721001M 3C8-72100-1 $21.62 1
(5) ROPE 3B7722010M 3B7-72201-0 ø6-1600 $5.07 1
(6) SINGLE REMOTE CONTROL BOX ASSY (RC5D) 3B7843600M 3B7-84360-0 FOR MF/EF TYPE / TOHATSU $310.10 1
(6) REMOTE CONTROL BOX (RC5C) 3B7843502M 3B7-84350-2 FOR EP TYPE / TOHATSU $301.73 1
(6) SINGLE REMOTE CONTROL BOX ASSY (RC5D) 373843602M 373-84360-2 FOR MF/EF TYPE / NISSAN $0.00 1 Sold Out View More Details
(6) REMOTE CONTROL BOX (RC5C) 383843502M 383-84350-2 FOR EP TYPE / NISSAN $301.73 1
