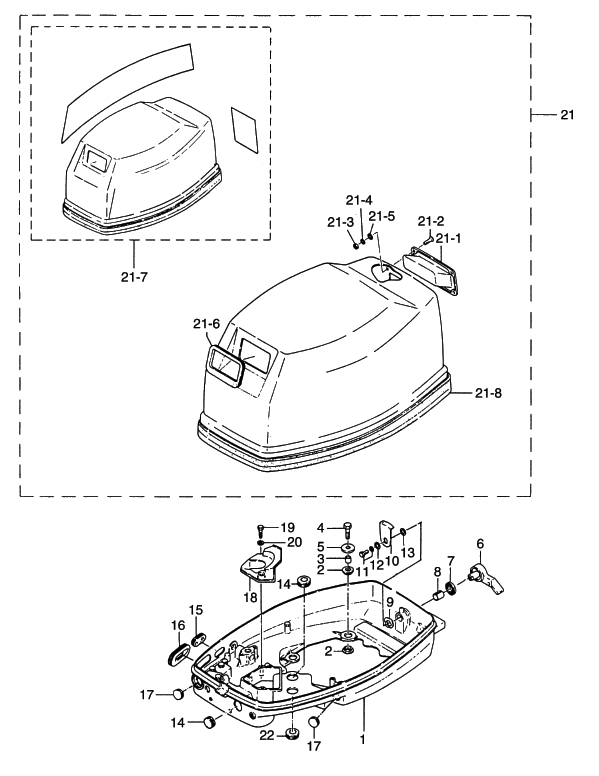

19. MOTOR COVER

Click Here for Microfiche Usage Tip
(1) MOTOR COVER LOWER(2) RUBBER MOUNT,12-18-2.5(2) RUBBER MOUNT,12-18-2.5(3) SPACER, 8.4-12-17(4) BOLT(5) WASHER, RUBBER MOUNT(6) HOOK LEVER(7) SEAL RING, HOOK LEVER(8) BUSHING,14-16.5-17.7(9) WAVE WASHER, D=14(10) COVER HOOK(11) BOLT(12) WASHER, 6-16-1.5(13) WASHER, 14-22-1(14) GROMMET, 22-3(14) GROMMET, 22-3(15) GROMMET, BATTERY CABLE(16) GROMMET, CABLE(17) GROMMET,17-2.7(17) GROMMET,17-2.7(18) BAFFLE, AIR INTAKE(19) BOLT(20) WASHER(21) MOTOR COVER UPPER(21) MOTOR COVER UPPER(21-1) TILT HANDLE(21-2) SCREW(21-3) NUT(21-4) SPRING WASHER(21-5) WASHER(21-6) SEAL RUBBER, STARTER(21-7) DECAL SET(21-7) DECAL SET(21-8) SEAL RUBBER, MOTOR COVER UPPER(22) GROMMET, 29-3



Parts List
2004 :: 40 HP :: 2 Stroke Nissan NS40C :: MOTOR COVER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR COVER LOWER 345S671002 345S67100-2 #93201~ $0.00 1 Sold Out View More Details
(2) RUBBER MOUNT 12-18-2.5 345671130M 345-67113-0 $1.71 8
(3) SPACER 8.4-12-17 3C7671140M 3C7-67114-0 $2.48 4
(4) BOLT 9101130835M 910113-0835 $2.14 4 Sold Out View More Details
(5) WASHER RUBBER MOUNT 345671150M 345-67115-0 $1.71 4
(6) HOOK LEVER 338S671410 338S67141-0 $18.00 1
(7) SEAL RING 338671470M 338-67147-0 $1.98 1
(8) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.78 1
(9) WAVE WASHER D=14 9414031400M 941403-1400 $0.88 1
(10) COVER HOOK 345671421M 345-67142-1 $11.79 1
(11) BOLT 9101036612M 910103-6612 $1.24 1
(12) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 1
(13) WASHER 14-22-1 3C8671460M 3C8-67146-0 $1.57 1
(14) GROMMET 22-3 345671610M 345-67161-0 $5.92 2
(15) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.54 1
(16) GROMMET CABLE 345837320M 345-83732-0 $11.79 1
(17) GROMMET 17-2.7 345671170M 345-67117-0 $2.48 2
(18) BAFFLE AIR INTAKE 345671830M 345-67183-0 $24.62 1
(19) BOLT 9101140625M 910114-0625 $1.11 2
(20) WASHER 9401130600M 940113-0600 $0.88 2
(21) MOTOR COVER UPPER 361S675004 361S67500-4 TOHATSU / #96958~ $498.53 1
(21) MOTOR COVER UPPER 383N675001 383N67500-1 NISSAN / #96958~ $0.00 1 Sold Out View More Details
(21-1) TILT HANDLE 345S675210 345S67521-0 $25.82 1
(21-2) SCREW 9216030516M 921603-0518 $0.87 4
(21-3) NUT 9301030500M 930103-0500 $0.92 4
(21-4) SPRING WASHER 9413030500M 941303-0500 $0.97 4
(21-5) WASHER 9401030500M 940103-0500 $0.56 4
(21-6) SEAL RUBBER STARTER 344675030M 344-67503-0 $15.70 1
(21-7) DECAL SET 361S878011 361S87801-1 TOHATSU $0.00 1 Sold Out View More Details
(21-7) DECAL SET 383N878011 383N87801-1 NISSAN $0.00 1 Sold Out View More Details
(21-8) TOP COWL SEAL 3F3675010M 3F3-67501-0 $37.96 1
(22) GROMMET 29-3 369610160M 369-61016-0 $3.50 1
