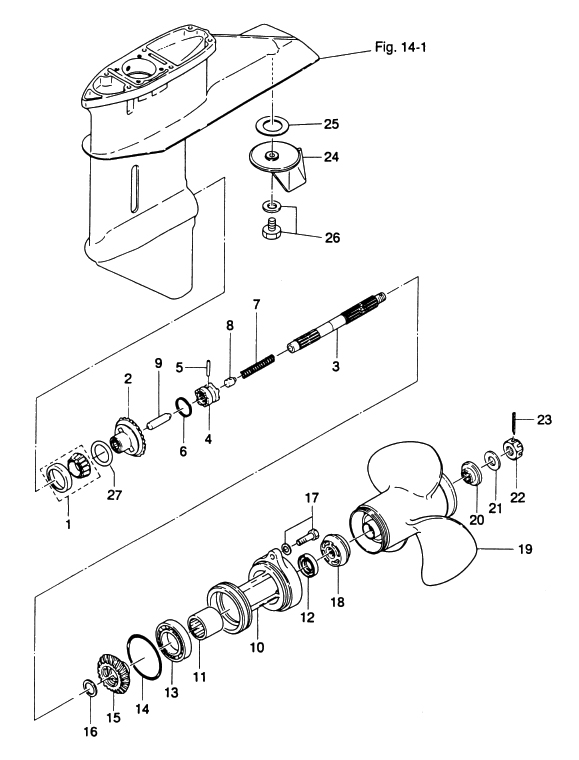

15. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) BEARING, 32007(2) BEVEL GEAR "A"(3) PROPELLER SHAFT(4) CLUTCH(5) CLUTCH PIN(6) SNAP, CLUTCH PIN(7) SPRING, CLUTCH(8) SPRING HOLDER, CLUTCH(9) PUSH ROD, CLUTCH(10) HOUSING, PROPELLER SHAFT(11) NEEDLE BEARING, 22-30-30(12) OIL SEAL, 22-36-10(13) BALL BEARING, 6007(14) O-RING, 3.53-69.44(15) BEVEL GEAR "C"(16) WASHER, 22.1-28-3(17) BOLT(18) THRUST HOLDER, PROPELLER(19) PROPELLER 7, (4 X 11.4 X 7.1)(19) PROPELLER 8.5, (3 X 11.2 X 8.7)(19) PROPELLER 9, (3 X 10.9 X 8.9)(19) PROPELLER 10, (3 X 10.8 X 9.9)(19) PROPELLER 11, (3 X 10.6 X 11.3)(19) PROPELLER 12, (3 X 10.6 X 11.7)(19) PROPELLER 13, (3 X 10.3 X 12.7)(19) PROPELLER 14, (3 X 10.2 X 13.9)(20) STOPPER, PROPELLER(21) WASHER,17-32-3(22) NUT, PROPELLER(23) SPLIT PIN, 3-25(24) TRIM TAB(25) GASKET, TRIM TAB(26) BOLT(27) SHIM, 36-44-0.3(27) SHIM, 36-44-0.15(27) SHIM, 36-44-0.1



Parts List
2004 :: 40 HP :: 2 Stroke Nissan NS40C :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 32007 345602150M 345-60215-0 $50.65 1
(2) BEVEL GEAR A 348640101M 348-64010-1 $132.17 1 Sold Out View More Details
(3) PROPELLER SHAFT 348642110M 348-64211-0 $266.94 1
(4) CLUTCH 348642150M 348-64215-0 $87.43 1
(5) CLUTCH PIN 345642170M 345-64217-0 $2.05 1
(6) SNAP CLUTCH PIN 345642190M 345-64219-0 $1.61 1
(7) SPRING CLUTCH 345642210M 345-64221-0 $2.07 1
(8) SPRING HOLDER CLUTCH 345642220M 345-64222-0 $8.05 1
(9) PUSH ROD CLUTCH 345642230M 345-64223-0 $9.89 1
(10) HOUSING PROPELLER SHAFT 345S601011 345S60101-1 $85.89 1
(11) NEEDLE BEARING 22-30-30 345602110M 345-60211-0 $33.06 1 Sold Out View More Details
(12) OIL SEAL 22-36-10 334602230M 334-60223-0 $9.46 1
(13) BEARING 6007 960106007M 9601-0-6007 $17.62 1
(14) O-RING 3.53-69.44 345601030M 345-60103-0 $4.38 1
(15) BEVEL GEAR C 348640300M 348-64030-0 $132.17 1
(16) WASHER 22.1-28-3 345640320M 345-64032-0 $5.07 1
(17) BOLT 9101135830M 910113-5830 $1.38 2
(18) THRUST HOLDER 3C8642310M 3C8-64231-0 $50.42 1
(19) PROPELLER 7 ( 4 X 11.4 X 7.1) 348W641080 348W64108-0 $169.01 1
(19) PROPELLER 8.5 (3 X 11.2 X 8.7) 348W641070 348W64107-0 $131.96 1
(19) PROPELLER 9 (3 X 10.9 X 8.9) 361W641150 361W64115-0 $0.00 1 Sold Out View More Details
(19) PROPELLER 10 (3 X 10.8 X 9.9) 361W641090 361W64109-0 $0.00 1 Sold Out View More Details
(19) PROPELLER 11 (3 X 10.6 X 11.3) 361W641130 361W64113-0 STD / OR 3T5W64523-0 $0.00 1 Sold Out View More Details
(19) PROPELLER 12 (3 X 10.6 X 11.7) 361W641140 361W64114-0 OR 3T5W64525-0 $0.00 1 Sold Out View More Details
(19) PROPELLER 13 (3 X 10.3 X 12.7) 348W641020 348W64102-0 OR 3T5W64525-0 $0.00 1 Sold Out View More Details
(19) PROPELLER 14 (3 X 10.2 X 13.9) 348W641030 348W64103-0 OR 3T5W64527-0 $0.00 1 Sold Out View More Details
(20) PROPELLER STOPPER 348642320M 348-64232-0 $19.84 1
(21) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(22) NUT PROPELLER 345641210M 345-64121-0 $13.25 1
(23) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
(24) TRIM TAB 348602170M 348-60217-0 $29.88 1
(25) GASKET TRIM TAB 353602190M 353-60219-0 $4.40 1
(26) BOLT 9101135618M 910113-5618 $0.93 1
(27) SHIM 36-44-0.3 353640360M 353-64036-0 $1.56 0
(27) SHIM 36-44-0.15 353640370M 353-64037-0 $1.56 0
(27) SHIM 36-44-0.1 353640380M 353-64038-0 $1.79 0
