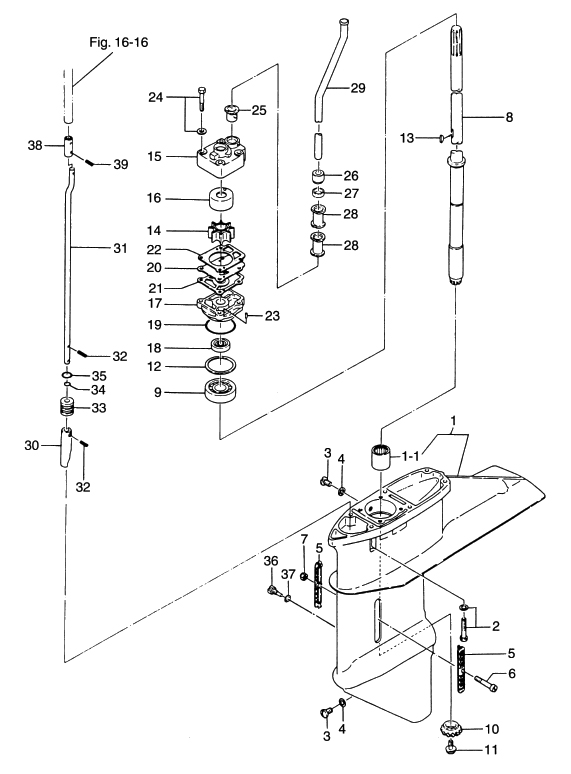

14. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip
(1) GEAR CASE(1-1) NEEDLE BEARING, 22-30-30(2) BOLT(3) OIL PLUG(3) OIL PLUG(4) GASKET, 8.1-15-1(4) GASKET, 8.1-15-1(5) WATER STRAINER(5) WATER STRAINER(6) SCREW(7) NYLON NUT, 4P-0.7(8) DRIVE SHAFT "S"(8) DRIVE SHAFT "L"(8) DRIVE SHAFT "UL"(9) BEARING, 32304(10) BEVEL GEAR "B"(11) BOLT, BEVEL GEAR "B"(12) SHIM, 41-51.5-0.1(12) SHIM, 41-51.5-0.15(12) SHIM, 41-51.5-0.3(12) SHIM, 41-51.5-0.5(13) KEY, PUMP IMPELLER(14) IMPELLER, WATER PUMP(15) PUMP CASE UPPER(16) LINER, PUMP CASE(17) PUMP CASE LOWER(18) OIL SEAL,17-33-9.5(19) O-RING, 3.2-47(20) GUIDE PLATE, WATER PUMP(21) GASKET, PUMP GUIDE PLATE(22) GASKET, PUMP CASE UPPER(23) KNOCK, 4-10(24) BOLT(25) SEAL RUBBER LOWER, WATER PIPE(26) SEAL RUBBER UPPER, WATER PIPE(27) SET RING, SEAL RUBBER(28) LOCK RUBBER, WATER PIPE(28) LOCK RUBBER, WATER PIPE(28) LOCK RUBBER, WATER PIPE(28) LOCK RUBBER, WATER PIPE(29) WATER PIPE "S"(29) WATER PIPE "L"(29) WATER PIPE "UL"(30) CLUTCH CAM(31) CAM ROD "S"(31) CAM ROD "L"(31) CAM ROD "UL"(32) SPRING PIN, 3-16(32) SPRING PIN, 3-16(33) BUSHING, CAM ROD(34) O-RING, 1.9-6.8(35) O-RING, 2.4-15.4(36) STOPPER, CAM ROD BUSHING(37) GASKET, 6.2-11-1(38) JOINT, SHIFT ROD(39) SPRING PIN, 3-12



Parts List
2004 :: 40 HP :: 2 Stroke Nissan NS40C :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 361S600000 361S60000-0 $1,228.32 1
(1-1) NEEDLE BEARING 22-30-30 345602110M 345-60211-0 $33.06 1 Sold Out View More Details
(2) BOLT 9101135840M 910113-5840 $3.17 6
(3) WATER PLUG 332600052M 332-60005-2 $5.07 2
(4) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(5) WATER STRAINER 345602060M 345-60206-0 $5.55 2
(6) SCREW 9215030440M 921503-0440 $1.11 1
(7) NYLON NUT 4P-0.7 9304060400M 930406-0400 $1.68 1
(8) DRIVE SHAFT S 345643010M 345-64301-0 FOR TRANSOM S $315.25 1
(8) DRIVE SHAFT L 345643020M 345-64302-0 FOR TRANSOM L $326.79 1
(8) DRIVE SHAFT UL 345643030M 345-64303-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(9) BEARING 32304 345602130M 345-60213-0 $37.45 1
(10) BEVEL GEAR B 345640201M 345-64020-1 $88.09 1
(11) BOLT BEVEL GEAR B 345640250M 345-64025-0 $17.30 1
(12) SHIM 41-51.5-0.1 345640810M 345-64081-0 $1.84 0
(12) SHIM 41-51.5-0.15 345640820M 345-64082-0 $0.00 0 Sold Out View More Details
(12) SHIM 41-51.5-0.3 345640830M 345-64083-0 $1.84 0
(12) SHIM 41-51.5-0.5 345640840M 345-64084-0 $1.84 0
(13) KEY PUMP IMPELLER 332650220M 332-65022-0 $6.47 1
(14) IMPELLER WATER PUMP 345650210M 345-65021-0 $12.06 1
(15) PUMP CASE UPPER (BLACK) 348650161M 348-65016-1 $28.61 1
(16) LINER PUMP CASE 348650110M 348-65011-0 $6.36 1
(17) PUMP CASE LOWER 348650171M 348-65017-1 $48.31 1
(18) OIL SEAL 17-33-9.5 332601110M 332-60111-0 $8.52 1
(19) O-RING 3.2-47 345650150M 345-65015-0 $1.50 1
(20) GUIDE PLATE WATER PUMP 348650250M 348-65025-0 $2.39 1
(21) GASKET GUIDE PLATE 348650291M 348-65029-1 $2.42 1
(22) GASKET PUMP CASE 348650180M 348-65018-0 $2.42 1
(23) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(24) BOLT 9101135652M 910113-5652 $2.91 4 Sold Out View More Details
(25) SEAL RUBBER LOWER WATER PIPE 3B7650140M 3B7-65014-0 $2.31 1
(26) WATER PIPE SEAL (UPPER) 345652060M 345-65206-0 $2.10 1
(27) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
(28) LOCK RUBBER WATER PIPE 345652040M 345-65204-0 FOR TRANSOM S $3.31 1
(28) WATER PIPE AUXILIARY MOUNT 346652040M 346-65204-0 FOR TRANSOM L UL $2.31 2 Sold Out View More Details
(29) WATER PIPE S 345651001M 345-65100-1 FOR TRANSOM S $17.77 1 Sold Out View More Details
(29) WATER PIPE L 345651101M 345-65110-1 FOR TRANSOM L $20.50 1
(29) WATER PIPE UL 345651201M 345-65120-1 FOR TRANSOM UL $25.33 1
(30) CLUTCH CAM 348660110M 348-66011-0 $44.07 1
(31) CAM ROD S 348660120M 348-66012-0 FOR TRANSOM S $16.45 1
(31) CAM ROD L 348660130M 348-66013-0 FOR TRANSOM L $21.12 1
(31) CAM ROD UL 348660140M 348-66014-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(32) SPRING PIN 3-16 9514030316M 951403-0316 $0.83 2
(33) BUSHING CAM ROD 345660311M 345-66031-1 $10.59 1
(34) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(35) O-RING 2.4-15.4 332660320M 332-66032-0 $1.41 1
(36) STOPPER CAM ROD BUSHING 301660241M 301-66024-1 $0.00 1 Sold Out View More Details
(37) GASKET 6.2-11-1 301660250M 301-66025-0 $0.97 1
(38) JOINT SHIFT ROD 345662410M 345-66241-0 $4.38 1
(39) SPRING PIN 3-12 9514030312M 951403-0312 $0.83 2
