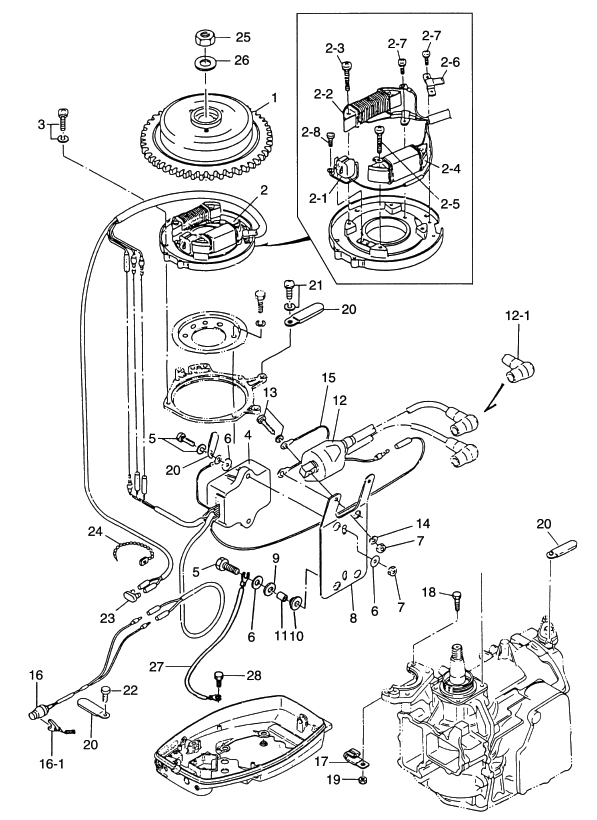

8. MAGNETO

Click Here for Microfiche Usage Tip
(1) FLYWHEEL CUP(2) COIL PLATE ASSY(2-1) PULSER COIL(2-2) ALTERNATOR(2-3) SCREW(2-4) EXCITER COIL(2-5) SCREW(2-6) HOLDER, MAGNETO CORD(2-7) SCREW(2-7) SCREW(2-8) SCREW(3) SCREW(4) C.D. UNIT(5) BOLT(5) BOLT(6) WASHER, 6-16-1.5(6) WASHER, 6-16-1.5(6) WASHER, 6-16-1.5(7) NUT(7) NUT(8) PLATE, ELECTRIC(9) RUBBER MOUNT, 9-16-4.3(10) RUBBER MOUNT, 9-12-2(11) COLLAR, 6.2-9-7.4(12) IGNITION COIL (WITH RESISTANCE CAP)(12-1) PLUG CAP ( WITH RESISTANCE)(13) BOLT(14) SPRING WASHER(15) GROUND CABLE(16) LANYARD STOP SWITCH(16-1) LOCK, LANYARD STOP SWITCH(17) CLAMP, 9-20U(18) BOLT(19) NUT(20) CLAMP, 6.5-47.5P(20) CLAMP, 6.5-47.5P(20) CLAMP, 6.5-47.5P(20) CLAMP, 6.5-47.5P(21) SCREW(22) BOLT(23) PLUG, CABLE TERMINAL(24) BAND, LEAD WIRE(25) NUT, MAGNETO (16P-1.5)(25) NUT, MAGNETO (16P-1.5)(26) WASHER, 16-28-3.2(27) GROUND CABLE(28) BOLT



Parts List
2004 :: 40 HP :: 2 Stroke Nissan NS40C :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 361060910M 361-06091-0 FP5506 / # 91569~ $550.63 1
(2) COIL PLATE ASSY 3A0060020M 3A0-06002-0 $455.69 1
(2-1) PULSER COIL 3G2060220M 3G2-06022-0 $46.28 1
(2-2) ALTERNATOR 3A0060230M 3A0-06023-0 $77.11 1
(2-3) SCREW 9215216528M 921521-6528 $0.83 2
(2-4) EXCITER COIL 3G2060210M 3G2-06021-0 $66.80 1
(2-5) SCREW 9215216522M 921521-6522 $0.65 2
(2-6) HOLDER MAGNETO CORD 350060250M 350-06025-0 $1.61 1
(2-7) SCREW 9215216406M 921521-6406 $1.99 3
(2-8) SCREW 9215216408M 921521-6408 $0.63 2
(3) SCREW 9215216510M 921521-6510 $0.44 4
(4) C.D. UNIT 361060601M 361-06060-1 CU 2503 $331.38 1
(5) BOLT 9101036625M 910103-6625 $1.01 5
(6) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(7) NUT 9301130600M 930113-0600 $0.84 4
(8) PLATE ELECTRIC 3A0063221 3A0-06322-1 $7.69 1
(9) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 3
(10) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 3
(11) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(12) IGNITION COIL (WITH RESISTANCE CAP) 361060401M 361-06040-1 $104.70 1
(12-1) PLUG CAP ( WITH RESISTANCE) 3C7069210M 3C7-06921-0 $5.66 2
(13) BOLT 9101135620M 910113-5620 $1.30 2
(14) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(15) GROUND CABLE 3B7761420M 3B7-76142-0 L=120 $5.29 1
(16) STOP SWITCH 398068300M 398-06830-0 $48.44 1
(16-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(17) CLAMP 9-20U 345069171M 345-06917-1 $4.83 1
(18) BOLT 9101140820M 910114-0820 $1.39 1
(19) NUT 9301130800M 930113-0800 $1.99 1 Sold Out View More Details
(20) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 4
(21) SCREW 9225036510M 922503-6510 $0.00 1 Sold Out View More Details
(22) BOLT 9101130612M 910113-0612 $0.84 1
(23) CABLE TERMINAL PLUG 353760370M 353-76037-0 $2.53 1
(24) LEAD WIRE BAND 336760910M 336-76091-0 $1.01 1
(25) NUT 16-P1.5 9311211600M 931121-1600 # 032986XD~ / CLOCKWISE $3.04 1
(25) NUT MAGNETO (16P-1.5) 334001320M 334-00132-0 ~# 028121 XD / COUNTERCLOCKWISE $0.00 1 Sold Out View More Details
(26) WASHER 16-28-3.2 345001330M 345-00133-0 $2.31 1
(27) GROUND CABLE 3C7761420M 3C7-76142-0 L=170 / FOR MF TYPE $2.99 1
(28) BOLT 9101030612M 910113-0612 FOR MF TYPE $0.84 1
