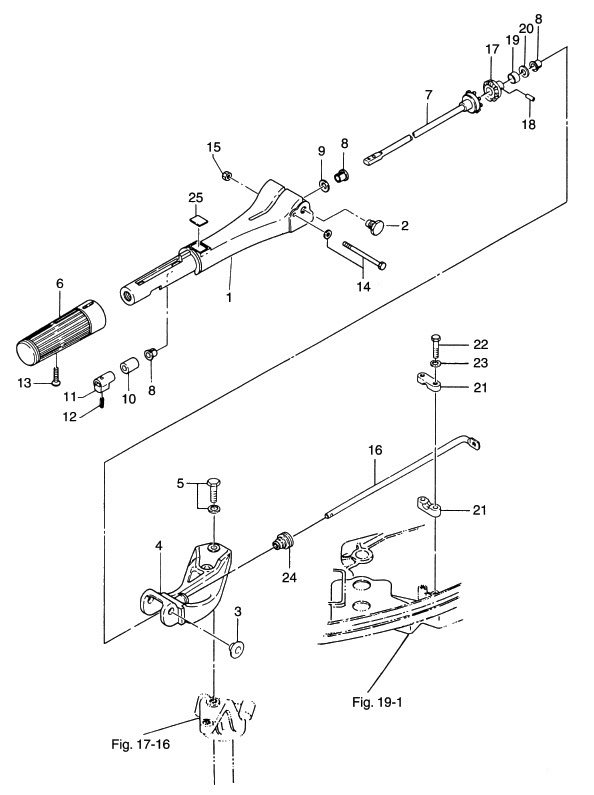

7. TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) STEERING HANDLE(2) BOLT(3) COLLAR, 9.8-12-7.5(4) HANDLE "B"(5) BOLT(6) GRIP(7) THROTTLE SHAFT "A"(8) BUSHING, 8.4-10-11(8) BUSHING, 8.4-10-11(8) BUSHING, 8.4-10-11(9) WAVE WASHER, D=10(10) RUBBER, THROTTLE SHAFT "A"(11) SPACER, THROTTLE SHAFT(12) SPRING PIN, 3-10(13) SCREW(14) BOLT(15) NYLON NUT, 6P-1.0(16) THROTTLE SHAFT "B"(17) UNIVERSAL PINION(18) SPRING PIN, 4-14(19) COLLAR, 15.9-17.1-9(20) WASHER(21) SUPPORTER, THROTTLE SHAFT "B"(21) SUPPORTER, THROTTLE SHAFT "B"(22) BOLT(23) WASHER(24) GROMMET, THROTTLE SHAFT(25) LABEL, THROTTLE



Parts List
2004 :: 40 HP :: 2 Stroke Nissan NS40C :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STEERING HANDLE 398S630110 398S63011-0 $55.07 1
(2) BOLT 346632011M 346-63201-1 $5.55 2
(3) COLLAR 9.8-12-7.5 345632070M 345-63207-0 $1.85 2
(4) HANDLE B 345S630510 345S63051-0 $69.03 1
(5) BOLT 9101135825M 910113-5825 $1.89 2
(6) GRIP 398630120M 398-63012-0 $29.88 1
(7) THROTTLE SHAFT A 398630410M 398-63041-0 $25.33 1
(8) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 3
(9) WAVE WASHER D=10 9414031000M 941403-1000 $0.81 1
(10) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(11) THROTTLE SHAFT SPACER 398630530M 398-63053-0 $2.31 1
(12) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 1
(13) SCREW 9218030525M 921803-0525 $0.92 1
(14) BOLT 9101135675 910113-5675 $0.00 1 Sold Out View More Details
(15) NYLON NUT 6-P 1.0 9304030600M 930403-0600 $2.25 1
(16) THROTTLE SHAFT B 348630610M 348-63061-0 $29.88 1
(17) UNIVERSAL PINION 346630640M 346-63064-0 $5.55 1
(18) SPRING PIN 4-14 9514030414M 951403-0414 $0.83 1
(19) COLLAR 15.9-17.1-9 346630661M 346-63066-1 $1.91 1
(20) WASHER 9401130800M 940113-0800 $0.84 1
(21) SUPPORTER THROTTLE SHAFT B 345630630M 345-63063-0 $4.38 2
(22) BOLT 9101140630M 910114-0630 $1.21 2
(23) WASHER 9401130600M 940113-0600 $0.83 2
(24) GROMMET 17 - 3 345662260M 345-66226-0 $3.91 1 Sold Out View More Details
(25) THROTTLE DECAL 369720191M 369-72019-1 $1.20 1
