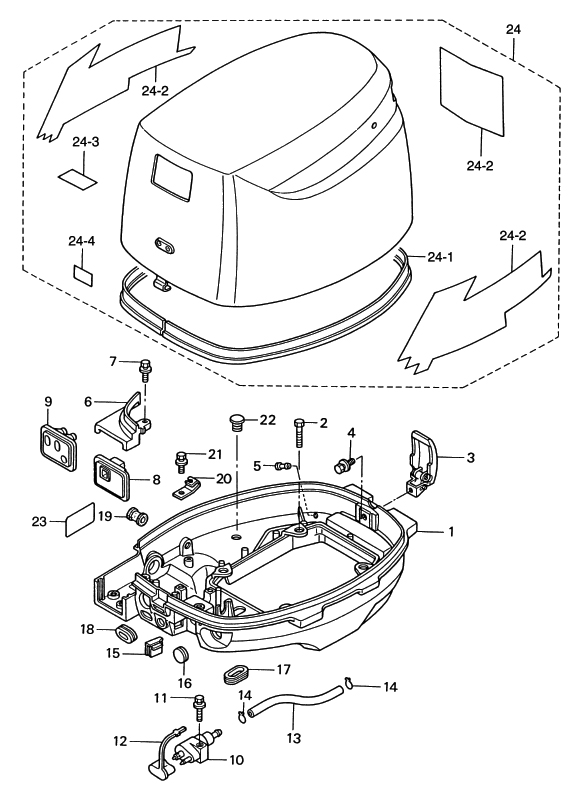

20. COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL (NEW)(1) BOTTOM COWL (OLD)(2) BOLT(3) COWL LATCH(4) BOLT(5) WATER NIPPLE(6) BRACKET, SHIFT LEVER COVER(7) BOLT(8) GROMMET(9) GROMMET(10) FUEL CONNECTOR (ENGINE, MALE)(11) BOLT(12) PROTECTOR, FUEL CONNECTOR(13) HOSE(14) CLIP o10(14) CLIP o10(15) GROMMET(16) GROMMET, 17-2.7(17) GROMMET, SHIFT ROD(18) GROMMET, BATTERY CABLE(19) GROMMET(20) BRACKET, STARTER LOCK CABLE(21) BOLT(22) PLUG(23) LABEL, STORAGE(24) TOP COWL(24) TOP COWL(24-1) SEAL RUBBER, TOP COWL(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-3) CAUTION LABEL "A"(24-4) LABEL, OIL PRESSURE



Parts List
2004 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A2 :: COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL (NEW) 3V2S671000 3V2S67100-0 # 031096XD~ / 9.8A2/8A2 $0.00 1 Sold Out View More Details
(1) BOTTOM COWL (OLD) 3V1S671000 3V1S67100-0 ~# 027338XD / 9.8A/8A $0.00 0 Sold Out View More Details
(2) BOLT 9101135625M 910113-5625 $1.47 4
(3) COWL LATCH 3V1671200M 3V1-67120-0 $20.93 1
(4) BOLT 9101135612M 910113-5612 $1.07 1
(5) WATER NIPPLE 353011380M 353-01138-0 $2.21 1
(6) BRACKET SHIFT LEVER COVER 3V1S674810 3V1S67481-0 $32.81 1
(7) BOLT 9101135616M 910113-5616 $1.15 1
(8) GROMMET 3V1636210M 3V1-63621-0 FOR MF & EF $6.03 1
(9) GROMMET (P TYPE) 3V1837320M 3V1-83732-0 FOR EP $5.61 1
(10) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(11) BOLT 9101135625M 910113-5625 $1.47 1
(12) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(13) HOSE 98AB50330M 98AB-5-0330 $11.41 1
(14) CLIP ø10 338022150M 338-02215-0 $1.41 2
(15) GROMMET 3V1636240M 3V1-63624-0 THROTTLE CABLE $2.30 1
(16) GROMMET 17-2.7 345671170M 345-67117-0 FOR MF & EP $2.31 1 Sold Out View More Details
(17) SHIFT ROD GROMMET 3R3662260M 3R3-66226-0 $1.44 2
(18) BATTERY CABLE GROMMET 3R3671620M 3R3-67162-0 $1.98 1
(19) GROMMET 3B2671870M 3B2-67187-0 FOR MF & EF $3.27 1
(20) STARTER LOCK CABLE BRACKET 3V1690000M 3V1-69000-0 $5.18 1
(21) BOLT 9101135612M 910113-5612 $1.07 1
(22) PLUG 3A3609840M 3A3-60984-0 $2.31 1
(23) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(24) TOP COWL 3V2S676300 3V2S67630-0 TOHATSU $416.40 1
(24) TOP COWL 3Y4N676301 3Y4N67630-1 NISSAN $0.00 1 Sold Out View More Details
(24-1) TOP COWL SEAL 3V1675010M 3V1-67501-0 $52.28 1
(24-2) DECAL SET 3V2S878010 3V2S87801-0 TOHATSU $0.00 1 Sold Out View More Details
(24-2) DECAL SET 3Y4N878010 3Y4N87801-0 NISSAN $0.00 1 Sold Out View More Details
(24-3) CAUTION DECAL A 3R0721800M 3R0-72180-0 $3.40 1
(24-4) OIL PRESSURE DECAL 3H6761990M 3H6-76199-0 $0.00 1 Sold Out View More Details
