14. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip

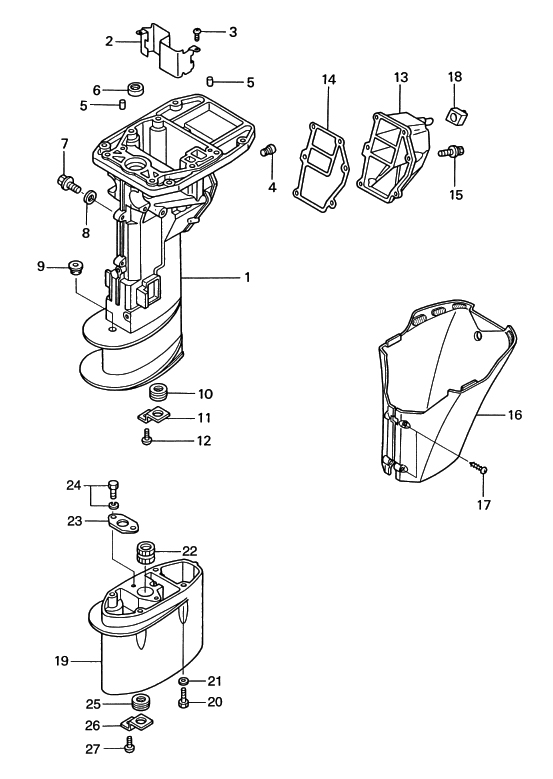

(1) DRIVE SHAFT HOUSING "S"(1) DRIVE SHAFT HOUSING "L"(2) GUIDE PLATE(3) SCREW(4) EXHAUST PLUG(5) KNOCK, 6-12(5) KNOCK, 6-12(6) OIL SEAL,12-28-5(7) BOLT, DRAIN(8) WASHER, 14.5-24-1(9) GROMMET(10) RUBBER MOUNT, 13-2.5(11) LOCK PLATE(12) SCREW(13) COVER, IDLE PORT(14) GASKET, IDLE PORT(15) BOLT(16) APRON(17) TAPPING SCREW, 5-30(18) GROMMET, IDLE PORT(19) EXTENSION HOUSING "UL"(20) BOLT(21) WASHER(22) BUSHING, DRIVE SHAFT(23) STOPPER, BUSHING(24) BOLT(25) RUBBER MOUNT, 13-2.5(26) LOCK PLATE(27) SCREW



Parts List
2004 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A2 :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3V1S610200 3V1S61020-0 SHORT $198.78 1
(1) DRIVE SHAFT HOUSING L 3V1S610300 3V1S61030-0 LONG $215.97 1
(2) GUIDE PLATE 3V1074400M 3V1-07440-0 $9.64 1
(3) SCREW 9215036510M 921503-6510 $0.49 2
(4) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(5) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(6) OIL SEAL 12-28-5 3B2012150M 3B2-01215-0 $5.69 1
(7) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.32 1
(8) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.83 1
(9) GROMMET 369660431M 369-66043-1 $1.57 1
(10) RUBBER MOUNT 13-2.5 3V1652040M 3V1-65204-0 FOR TRANSOM S L $2.42 1
(11) LOCK PLATE 3V1652030M 3V1-65203-0 FOR TRANSOM S L $3.74 1
(12) SCREW 9215130510M 921513-0510 FOR TRANSOM S L $0.81 1
(13) IDLE EXHAUST PORT COVER 3V1612080M 3V1-61208-0 $0.00 1 Sold Out View More Details
(14) IDLE EXHAUST PORT COVER GASKET 3V1612200M 3V1-61220-0 $9.80 1
(15) BOLT 9101135620M 910113-5620 $1.30 6
(16) APRON 3V1S612250 3V1S61225-0 $147.15 1
(17) TAPPING SCREW 5-30 3F3024230M 3F3-02423-0 $1.41 2
(18) IDLE EXHAUST PORT GROMMET 3V1612120M 3V1-61212-0 $2.95 1
(19) EXTENSION HOUSING UL 3B2S611102 3B2S61110-2 FOR TRANSOM UL $199.32 1
(20) BOLT 9161840635M 916184-0635 # 028479XC~ / FOR TRANSOM UL $1.02 4
(21) WASHER 9401130600M 940113-0600 # 028479XC~ / FOR TRANSOM UL $0.83 4
(22) DRIVE SHAFT BUSHING 3B2600031M 3B2-60003-1 FOR TRANSOM UL $62.11 1
(23) BUSHING STOPPER 3V1643320M 3V1-64332-0 FOR TRANSOM UL $5.18 1 Sold Out View More Details
(24) BOLT 9101135612M 910113-5612 FOR TRANSOM UL $1.07 2
(25) RUBBER MOUNT 13-2.5 3V1652040M 3V1-65204-0 FOR TRANSOM UL $2.42 1
(26) LOCK PLATE 3V1652030M 3V1-65203-0 FOR TRANSOM UL $3.74 1
(27) SCREW 9215130510M 921513-0510 FOR TRANSOM UL $0.81 1
