9. ELECTRIC PARTS

Click Here for Microfiche Usage Tip

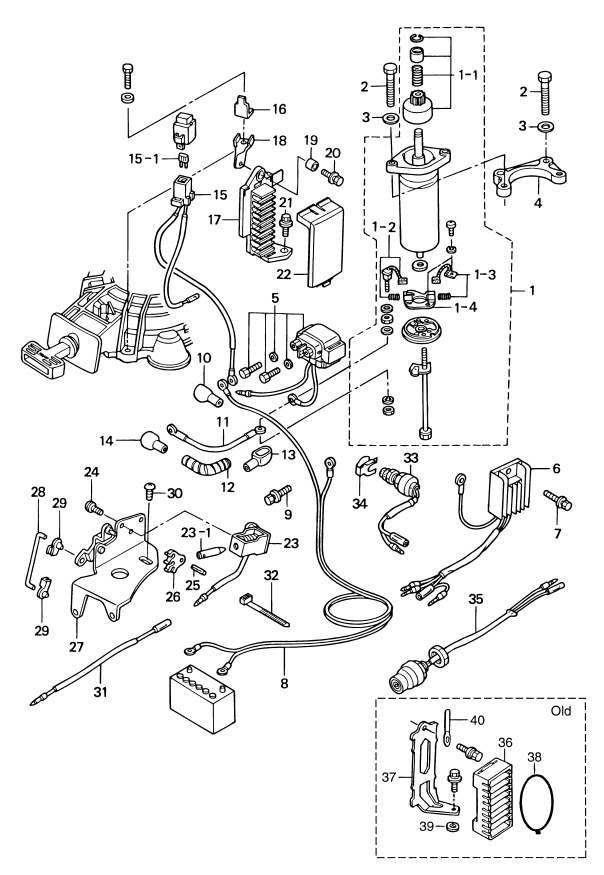

(1) STARTER MOTOR (S106-12B) (NEW)(1) STARTER MOTOR (OLD)(1-1) PINION(1-2) POSITIVE BRUSH (WITH SPRING) (NEW)(1-2) POSITIVE BRUSH (WITH SPRING) (OLD)(1-3) NEGATIVE BRUSH (WITH SPRING) (NEW)(1-3) NEGATIVE BRUSH (WITH SPRING) (OLD)(1-4) BRUSH HOLDER (NEW)(1-4) BRUSH HOLDER (OLD)(2) BOLT(2) BOLT(3) WASHER(3) WASHER(4) BRACKET, STARTER MOTOR(5) STARTER SOLENOID(6) RECTIFIER (NEW)(6) RECTIFIER (OLD)(7) BOLT(8) BATTERY CABLE (L=2000)(9) BOLT(10) TERMINAL CAP(11) STARTER CABLE(12) SPIRAL TUBE PROTECTOR(13) TERMINAL CAP(14) TERMINAL CAP(15) FUSE CABLE(15-1) FUSE (20A)(16) STAY, FUSE HOLDER(17) HOLDER, CABLE TERMINAL(18) STAY, CABLE TERMINAL HOLDER(19) COLLAR, 6-8-6(20) BOLT(21) BOLT(22) COVER, TERMINAL HOLDER(23) CHOKE SOLENOID(23-1) PLUNGER(24) SCREW(25) SPRING PIN, 3-12(26) HOOK, CHOKE SOLENOID(27) BRACKET, CHOKE SOLENOID(28) LINK ROD(29) ROD SNAP(29) ROD SNAP(30) SCREW(31) ASSIST CORD (BLUE)(32) BAND, LEAD WIRE 104(33) NEUTRAL SWITCH(34) ACTUATOR, NEUTRAL SWITCH(35) MAIN SWITCH(36) HOLDER, CABLE TERMINAL(37) BRACKET, TERMINAL HOLDER(38) BAND(39) WASHER, 6.5-16-1.5(40) CLAMP, 6.5-47.5P



Parts List
2004 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A2 :: ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR 3AA760100M 3AA-76010-0 # 010322XD~ / FOR EP & EF $430.05 1
(1) STARTER MOTOR (OLD) 350760100M 350-76010-0 ~# 003717XD / FOR EP & EF $330.38 0
(1-1) PINION 350760150M 350-76015-0 FOR EP & EF $127.93 1
(1-2) POSITIVE BRUSH (WITH SPRING) 3AA760120M 3AA-76012-0 # 010322XD~ / FOR EP & EF $30.37 1
(1-2) POSITIVE BRUSH (WITH SPRING) (OLD) 350760120M 350-76012-0 ~# 003717XD / FOR EP & EF $27.52 0
(1-3) NEGATIVE BRUSH (WITH SPRING) 3AA760130M 3AA-76013-0 # 010322XD~ / FOR EP & EF $30.37 1
(1-3) NEGATIVE BRUSH (WITH SPRING) (OLD) 350760130M 350-76013-0 ~# 003717XD / FOR EP & EF $27.52 0
(1-4) BRUSH HOLDER 3AA760140M 3AA-76014-0 # 010322XD~ / FOR EP & EF $0.00 1 Sold Out View More Details
(1-4) BRUSH HOLDER (OLD) 350760140M 350-76014-0 ~ #003717XD / FOR EP & EF $66.76 0
(2) BOLT 9161140830M 916114-0830 # 010322XD~ / FOR EP & EF $0.00 4 Sold Out View More Details
(3) WASHER 9401130800M 940113-0800 FOR EP & EF $0.84 4
(4) STARTER MOTOR BRACKET 3V1760110M 3V1-76011-0 FOR EP & EF $30.19 1
(5) STARTER SOLENOID 3H8760400M 3H8-76040-0 WITH BOLT / FOR EP & EF $67.57 1
(6) RECTIFIER 3AA760650M 3AA-76065-0 CORD SLEEVE COLOR GRAY / FOR EP & EF # 031096XD~ $102.12 1
(6) RECTIFIER 3V1760650M 3V1-76065-0 CORD SLEEVE COLOR BLACK FOR EP & EF ~# 027338XD $0.00 0 Sold Out View More Details
(7) BOLT 9101035616M 910103-5616 FOR EP & EF $1.15 1
(8) BATTERY CABLE (L=2000) 3B2761200M 3B2-76120-0 OR 3V1-76120-1 (L=2500) / FOR EP & EF $61.59 1
(9) BOLT 9101035610M 910103-5610 GROUND CABLE FOR EP & EF $1.02 1
(10) TERMINAL CAP 3AA761450M 3AA-76145-0 FOR EP & EF $2.25 1
(11) STARTER CABLE 3B2761471M 3B2-76147-1 L=200 / FOR EP & EF $16.50 1
(12) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 STARTER CABLE ø10-100 / FOR EP & EF $6.21 1
(13) TERMINAL CAP 3Y0761450M 3Y0-76145-0 FOR EP & EF $2.25 1
(14) TERMINAL CAP 3Y1761450M 3Y1-76145-0 FOR EP & EF $2.25 1
(15) FUSE CABLE 3V1760660M 3V1-76066-0 L=185 / FOR EP & EF $32.81 1
(15-1) FUSE (20A) 3T5762470M 3T5-76247-0 FOR EP & EF $2.99 1
(16) FUSE HOLDER STAY 3R0760640M 3R0-76064-0 FOR EP & EF $1.44 1
(17) CABLE TERMINAL HOLDER 3AA062810M 3AA-06281-0 9.8A2/8A2 # 031096XD~ / FOR EP & EF (NEW) $13.34 1
(18) CABLE TERMINAL HOLER STAY 3V1062840M 3V1-06284-0 FOR EP & EF $4.89 1
(19) COLLAR 6-8-6 174350120M 174-35012-0 9.8A2/8A2 # 031096XD~ / FOR EP & EF (NEW) $2.86 1
(20) BOLT 9101135612M 910113-5612 FOR EP & EF $1.07 1
(21) BOLT 9101135616M 910113-5616 FOR EP & EF $1.15 1
(22) TERMINAL HOLDER COVER 3AA069020M 3AA-06902-0 9.8A2 / 8A2 # 031096XD~ / FOR EP & EF (NEW) $5.41 1
(23) CHOKE SOLENOID 3V1760500M 3V1-76050-0 FOR EP $63.34 1
(23-1) PLUNGER 361760730M 361-76073-0 FOR EP $8.80 1
(24) SCREW 9215036408M 921503-6408 FOR EP / CHOKE SOLENOID $0.90 3
(25) SPRING PIN 3-12 9514030312M 951403-0312 FOR EP $0.83 1
(26) CHOKE SOLENOID HOOK 346760570M 346-76057-0 FOR EP $3.00 1
(27) CHOKE SOLENOID BRACKET 3V1760781M 3V1-76078-1 FOR EP $36.78 2 Sold Out View More Details
(28) LINK ROD 3V1760760M 3V1-76076-0 FOR EP $2.58 1
(29) ROD SNAP 3V1671960M 3V1-67196-0 FOR EP $2.08 2
(30) SCREW 9215130510M 921513-0510 FOR EP $0.81 1
(31) ASSIST CORD (BLUE) 3V1725470M 3V1-72547-0 FOR EP $3.62 1
(32) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 FOR EP $0.00 1 Sold Out View More Details
(33) NEUTRAL SWITCH 398760800M 398-76080-0 FOR EP $41.45 1
(34) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EP $4.02 1
(35) MAIN SWITCH 3AA760260M 3AA-76026-0 FOR EP $13.94 1
(36) HOLDER CABLE TERMINAL 3V1062810M 3V1-06281-0 9.8A / 8A ~#027338XD / FOR EP & EF (OLD) $12.70 0 Sold Out View More Details
(37) BRACKET TERMINAL HOLDER 3V1062820M 3V1-06282-0 9.8A / 8A ~#027338XD / FOR EP & EF (OLD) $7.36 0 Sold Out View More Details
(38) BAND 3B7061650M 3B7-06165-0 9.8A / 8A ~#027338XD / FOR EP & EF (OLD) $3.39 0
(39) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 9.8A / 8A ~#027338XD / FOR EP & EF (OLD) $1.59 0 Sold Out View More Details
(40) CLAMP 6.5-47.5P 309069720M 309-06972-0 9.8A / 8A ~#027338XD / FOR EP & EF (OLD) $2.07 0
