5. CARBURETOR

Click Here for Microfiche Usage Tip

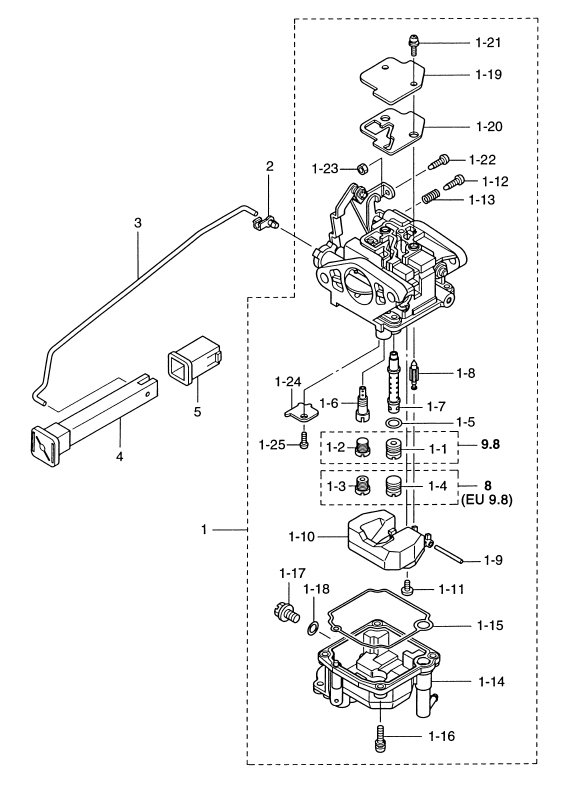

(1) CARBURETOR(1) CARBURETOR(1-1) MAIN JET #92(1-2) PLUG(1-3) MAIN JET #76(1-4) PLUG(1-5) O-RING(1-6) SLOW JET #39(1-7) MAIN NOZZLE(1-8) FLOAT VALVE(1-9) ARM PIN, FLOAT(1-10) FLOAT(1-11) SCREW(1-12) STOP SCREW(1-13) SPRING(1-14) FLOAT CHAMBER(1-15) GASKET, FLOAT CHAMBER(1-16) SCREW(1-17) DRAIN SCREW(1-18) GASKET(1-19) CARBURETOR COVER(1-20) GASKET, CARBURETOR COVER(1-21) SCREW(1-22) STOP SCREW(1-23) NUT(1-24) PLATE(1-25) SCREW(2) ROD SNAP o 3B(3) ROD, CHOKE LINK(4) CHOKE ROD(5) BUSHING



Parts List
2004 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A2 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3V2031002M 3V2-03100-2 # 010322XD~ FOR MF & EF (3V2FB) $264.85 1 Sold Out View More Details
(1) CARBURETOR 3V2031332M 3V2-03133-2 # 010322XD ~ FOR EP (3V2PB) $220.32 1
(1-1) MAIN JET #92 3V2044920M 3V2-04492-0 OLD PART NO. 3V2-04692-0 $7.41 1
(1-2) PLUG 3V2031690M 3V2-03169-0 $5.73 1
(1-3) MAIN JET #76 3V1044760M 3V1-04476-0 FOR 8A2 MODEL / OLD PART NO. 3V1-04676-0 $7.60 0
(1-4) PLUG (FOR EU) 3V1031690M 3V1-03169-0 FOR 8A2 MODEL $5.73 0
(1-5) O-RING 3V1031160M 3V1-03116-0 OLD PART NO. 3V1-03194-0 $1.50 1
(1-6) SLOW JET #36 3V1045390M 3V1-04539-0 OLD PART NO. 3V1-04739-0 $17.55 1
(1-7) MAIN NOZZLE 3V2031410M 3V2-03141-0 $21.12 1
(1-8) FLOAT VALVE 3V1031471M 3V1-03147-1 # 010322XD~ $15.02 1
(1-9) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.39 1
(1-10) FLOAT 3C8031250M 3C8-03125-0 $14.32 1
(1-11) SCREW 9217030406M 920703-0406 $0.67 1
(1-12) STOP SCREW 3V2031790M 3V2-03179-0 # 031096XD~ / L=18 $3.36 1
(1-13) SPRING 3V2031570M 3V2-03157-0 # 031096XD~ / L=14 $2.42 1
(1-14) FLOAT CHAMBER 3V1031200M 3V1-03120-0 $38.82 1
(1-15) FLOAT CHAMBER GASKET 3V1031210M 3V1-03121-0 $4.86 1
(1-16) SCREW 9225036412M 922503-6412 $1.47 4
(1-17) DRAIN SCREW 3V1031920M 3V1-03192-0 $3.28 1
(1-18) DRAIN SCREW GASKET 3V1031930M 3V1-03193-0 $2.40 1
(1-19) CARBURETOR COVER 3C8031810M 3C8-03181-0 $6.90 1
(1-20) CARBURETOR COVER GASKET 3V1031820M 3V1-03182-0 $6.74 1
(1-21) SCREW 9225036410M 922503-6410 $1.79 2
(1-22) STOP SCREW 3V1031790M 3V1-03179-0 L=15 $3.32 1
(1-23) NUT 3V1031910M 3V1-03191-0 $5.32 1
(1-24) PLATE 3V1031280M 3V1-03128-0 $2.26 1
(1-25) SCREW 9225030305M 922503-0305 $0.00 1 Sold Out View More Details
(2) ROD SNAP ø 3B 346671961M 346-67196-1 FOR MF & EF $2.56 1
(3) ROD CHOKE LINK 3V1671921M 3V1-67192-1 # 010322XD~ / FOR MF & EF $0.00 1 Sold Out View More Details
(4) CHOKE ROD 3C8671510M 3C8-67151-0 FOR MF & EF $5.75 1 Sold Out View More Details
(5) BUSHING 3C8671560M 3C8-67156-0 FOR MF & EF $3.31 1
