23. OPTIONAL PARTS (ACCESSORIES)

Click Here for Microfiche Usage Tip

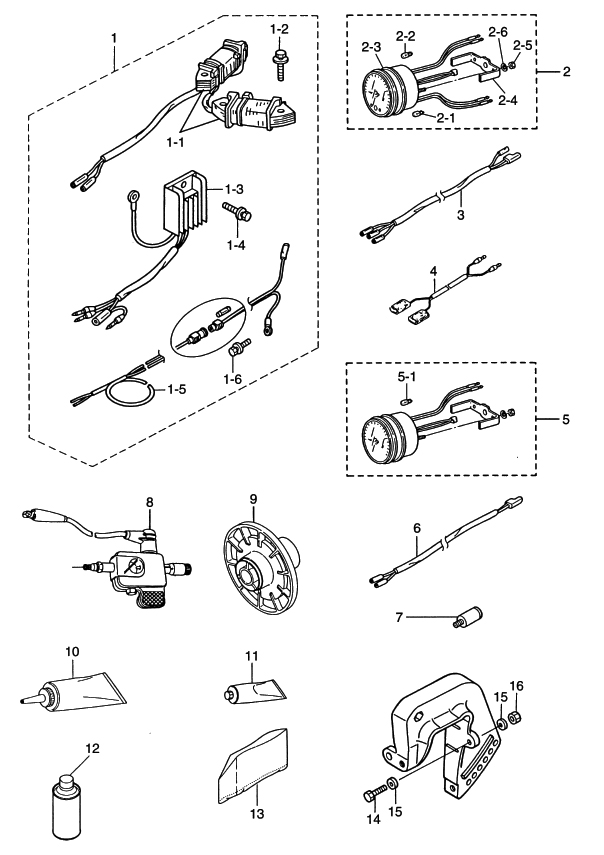

(1) ALTERNATOR SET(1-1) ALTERNATOR(1-2) BOLT(1-3) RECTIFIER(1-4) BOLT(1-5) EXTENSION CORD(1-6) BOLT(2) TACHOMETER (WITH OIL LAMP)(2-1) BULB, OIL 12V-1.7W(2-2) BULB, METER 12V-1.7W(2-3) DAMPER, METER(2-4) PLATE, FITTING(2-5) NUT(2-6) SPRING WASHER(3) LEAD CABLE, TACHOMETER(4) LEAD WIRE, METER(5) TACHOMETER (WITHOUT OIL LAMP)(5-1) BULB, METER 12V-1.7W(6) LEAD CABLE, TACHOMETER(7) FLUSHING ATTACHMENT(8) SPARK TESTER(9) TEST PROPELLER(10) TOHATSU GEAR LUBE (12-QUARTS)(10) TOHATSU GEAR LUBE (5 GAL PAIL)(10) TOHATSU GEAR LUBE (16 GAL DRUM)(10) NISSAN GEAR LUBE (12-QUARTS)(10) NISSAN GEAR LUBE (5 GAL PAIL)(10) NISSAN GEAR LUBE (16 GAL DRUM)(11) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(11) NISSAN GREASE (10-14 OZ. CARTRIDGE)(11) TOHATSU 4-CYCLE FCW OIL (12-QUARTS)(11) TOHATSU 4-CYCLE FCW OIL (6-GALLONS)(11) NISSAN 4-CYCLE FCW OIL (12-QUARTS)(11) NISSAN 4-CYCLE FCW OIL (6-GALLONS)(12) TOUCH-UP PAINT (SILVER GRAY)(13) VINYL MOTOR COVER (L)(14) BOLT(15) WASHER(15) WASHER(16) NUT



Parts List
2004 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A2 :: OPTIONAL PARTS (ACCESSORIES)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ALTERNATOR SET 3AA061280M 3AA-06128-0 # 031096XD~ / FOR 9.8A2/8A2 (MF) $147.60 1
(1-1) ALTERNATER 3AA060230M 3AA-06023-0 $61.59 1
(1-2) BOLT 9101035630M 910113-5630 $1.15 4
(1-3) RECTIFIER 3AA760650M 3AA-76065-0 $102.12 1
(1-4) BOLT 9101035616M 910103-5616 $1.15 1
(1-5) EXTENSION CORD 361761610M 361-76161-0 L=2150 / FUSE 15A $16.17 1
(1-6) BOLT 9101035610M 910103-5610 $1.02 1
(2) TACHOMETER (WITH OIL LAMP) 3B7726401M 3B7-72640-1 UNIQUE / FOR EP $0.00 1 Sold Out View More Details
(2-1) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR EP $3.27 1
(2-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR EP $0.00 1 Sold Out View More Details
(2-3) METER DAMPER 3B7726560M 3B7-72656-0 FOR EP $3.27 1
(2-4) FITTING PLATE 3B7726610M 3B7-72661-0 FOR EP $25.33 1
(2-5) NUT 9302030500M 930203-0500 FOR EP $0.60 2
(2-6) SPRING WASHER 9413030500M 941303-0500 FOR EP $0.90 2
(3) TACHOMETER LEAD CABLE 3V1725390M 3V1-72539-0 L=6000 / FOR EP $0.00 1 Sold Out View More Details
(4) METER LEAD CABLE 353725370M 353-72537-0 L=1500 / FOR EP $23.01 1
(5) TACHOMETER (WITHOUT OIL LAMP) 3B7725301M 3B7-72530-1 UNIQUE / FOR MF & EF $0.00 1 Sold Out View More Details
(5-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR MF & EF $0.00 1 Sold Out View More Details
(6) TACHOMETER LEAD CABLE 361725390M 361-72539-0 L=6000 / FOR MF & EF $50.65 1
(7) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.05 1
(8) SPARK TESTER 3F3725400M 3F3-72540-0 $169.88 1
(9) TEST PROPELLER 3B2641101M 3B2-64110-1 $253.42 1
(10) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $140.48 1
(10) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $200.25 1
(10) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(10) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $140.48 1
(10) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $200.25 1
(10) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(11) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(11) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(11) TOHATSU 4-CYCLE FCW OIL (12-QUARTS) 332823080M 332823080M QUARTS - 12 PER CASE $124.06 1 Sold Out View More Details
(11) TOHATSU 4-CYCLE FCW OIL (6-GALLONS) 332823050M 332823050M GALLONS - 6 PER CASE $145.62 1
(11) NISSAN 4-CYCLE FCW OIL (12-QUARTS) 332823070M 332823070M QUARTS - 12 PER CASE $124.06 1 Sold Out View More Details
(11) NISSAN 4-CYCLE FCW OIL (6-GALLONS) 332823020M 332823020M GALLONS - 6 PER CASE $145.62 1
(12) TOUCH-UP PAINT (SILVER GRAY) 3B7723260M 3B7-72326-0 N.A.F.N. $0.00 1 Sold Out View More Details
(13) VINYL MOTOR COVER (L) 334723120M 334-72312-0 UNIQUE $0.00 1 Sold Out View More Details
(14) BOLT 9161130885M 916113-0885 FOR MF & EF $3.50 2
(15) WASHER 9401130800M 940113-0800 FOR MF & EF $0.84 4
(16) NUT 9301130800M 930113-0800 FOR MF & EF $1.99 2 Sold Out View More Details
