22. OPTIONAL PARTS (REMOTE CONTROL FOR F TYPE)

Click Here for Microfiche Usage Tip

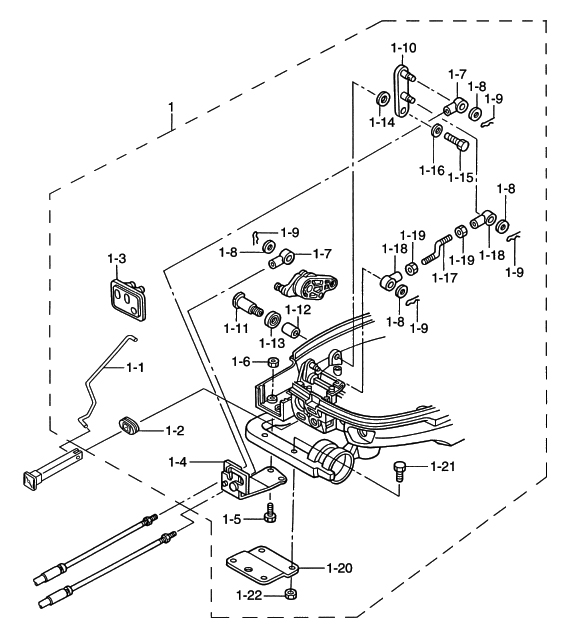

(1) REMOTE CONTROL FITTING PARTS(1) REMOTE CONTROL FITTING PARTS(1-1) ROD, CHOKE LINK(1-2) GROMMET(1-3) GROMMET (P TYPE)(1-4) CABLE CLIP(1-5) BOLT(1-6) NUT(1-7) CABLE JOINT(1-7) CABLE JOINT(1-8) WASHER, 8.5-18-1.6(1-8) WASHER, 8.5-18-1.6(1-8) WASHER, 8.5-18-1.6(1-8) WASHER, 8.5-18-1.6(1-9) R-PIN, D=8(1-9) R-PIN, D=8(1-9) R-PIN, D=8(1-9) R-PIN, D=8(1-10) SHIFT ARM (EP)(1-10) SHIFT ARM (EP)(1-11) PIVOT(1-12) BUSHING(1-13) SEAL RING(1-14) WAVE WASHER, D=14(1-15) BOLT(1-16) WASHER, 6.5-21-1(1-17) ROD, SHIFT LEVER(1-18) CABLE JOINT(1-18) CABLE JOINT(1-19) NUT(1-19) NUT(1-20) STEERING HOOK PLATE(1-21) BOLT(1-22) NUT



Parts List
2004 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A2 :: OPTIONAL PARTS (REMOTE CONTROL FOR F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) REMOTE CONTROL FITTING PARTS 3V2838800M 3V2-83880-0 # 031096XD~ / FOR 9.8A2/8A2 (MF & EF) $149.90 1
(1) REMOTE CONTROL FITTING PARTS 3V1838800M 3V1-83880-0 ~# 027338XD / FOR 9.8A/8A (MF & EF) $132.17 1
(1-1) CHOKE LINK ROD 3V2671920M 3V2-67192-0 $25.58 1 Sold Out View More Details
(1-2) GROMMET 3V2671930M 3V2-67193-0 $18.35 1
(1-3) GROMMET (P TYPE) 3V1837320M 3V1-83732-0 $5.61 1
(1-4) CABLE CLIP 3V1838200M 3V1-83820-0 $25.88 1
(1-5) BOLT 9101130616M 910113-0616 $0.98 2
(1-6) NUT 9301130600M 930113-0600 OR 930103-0600 $0.84 2
(1-7) CABLE JOINT 3B7837150M 3B7-83715-0 $4.83 2 Sold Out View More Details
(1-8) WASHER 8.5-18-1.6 353837190M 353-83719-0 $2.39 4
(1-9) SNAP PIN D=8 9516030800M 951603-0800 $0.70 4
(1-10) SHIFT ARM (EP) 3V2661280M 3V2-66128-0 MARK : 3V2 $4.75 1
(1-10) SHIFT ARM (EP) 3V1661280M 3V1-66128-0 SAME PARTS AS 3V2-83880-0 EXCEPT SHIFT ARM $0.00 0 Sold Out View More Details
(1-11) PIVOT 3V1661420M 3V1-66142-0 $20.10 1
(1-12) BUSHING 369671050M 369-67105-0 $2.07 1
(1-13) SEAL RING 338671470M 338-67147-0 $1.85 1
(1-14) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(1-15) BOLT 9101130612M 910113-0612 $0.84 1
(1-16) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(1-17) SHIFT LEVER ROD 3V1661340M 3V1-66134-0 $5.82 1
(1-18) CABLE JOINT 3R0837150M 3R0-83715-0 $2.40 2
(1-19) NUT 9301060500M 930106-0500 OR 930103-0500 $0.86 2
(1-20) STEERING HOOK PLATE 369838302M 369-83830-2 $12.20 1
(1-21) BOLT 9101135830M 910113-5830 OR 910103-5830 $1.38 2
(1-22) NUT 9301130800M 930113-0800 OR 930103-0800 $1.99 2 Sold Out View More Details
