16. DRIVE SYSTEM & WATER PUMP

Click Here for Microfiche Usage Tip

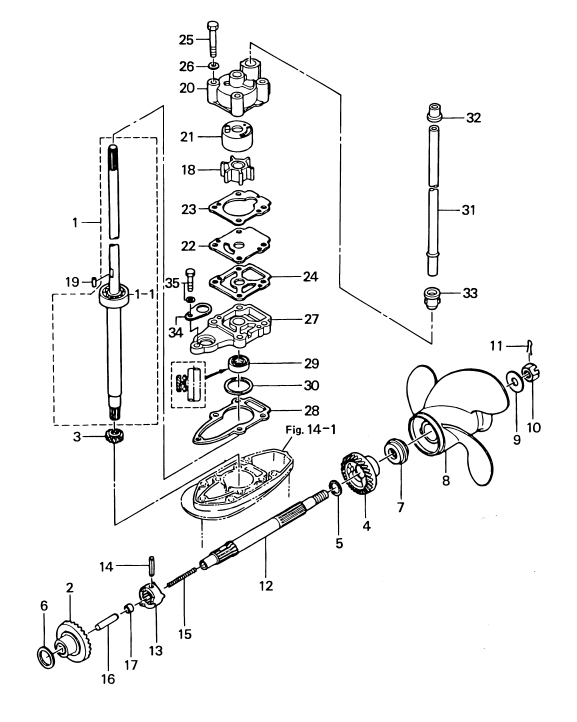

(1) DRIVE SHAFT "S"(1) DRIVE SHAFT "L"(1) DRIVE SHAFT "UL"(1-1) BALL BEARING, 6301(2) BEVEL GEAR "A"(3) BEVEL GEAR "B"(4) BEVEL GEAR "C"(5) WASHER,15.2-19-1.9(6) SHIM, 21-28-0.1(6) SHIM, 21-28-0.15(7) THRUST HOLDER, PROPELLER(8) PROPELLER (5) , 3 X 8 X 5(8) PROPELLER (6) , 3 X 8.3 X 6(8) PROPELLER (6.5) , 3 X 8.5 X 6.5(8) PROPELLER (7) , 3 X 8.9 X 7.0(8) PROPELLER (7.5) , 3 X 8.5 X 7.5(8) PROPELLER (8.5), 3 X 8.9 X 8.3(8) PROPELLER (9.5) , 3 X 8.9 X 10.0(8) PROPELLER (8.7d X 7p) 4-BLADE HIGH THRUST(8) PROPELLER (8.7d X 5p) 4-BLADE HIGH THRUST(9) WASHER, 10.5-28-2(10) NUT, PROPELLER(11) SPLIT PIN, 3-18(12) PROPELLER SHAFT(13) CLUTCH(14) SPRING PIN, 3.5-28(15) SPRING, CLUTCH(16) PUSH ROD, CLUTCH(17) SPRING HOLDER, CLUTCH(18) IMPELLER, WATER PUMP(19) KEY, WATER PUMP IMPELLER(20) PUMP CASE (UPPER)(21) LINER, PUMP CASE(22) GUIDE PLATE, WATER PUMP(23) GASKET, PUMP CASE(24) GASKET, GUIDE PLATE(25) BOLT(26) WASHER(27) PUMP CASE (LOWER)(28) GASKET, LOWER PUMP CASE(29) OIL SEAL,12-24-8(30) GAP LINER, 28-36.8(31) WATER PIPE "S"(31) WATER PIPE "L"(31) WATER PIPE "UL"(32) SEAL UPPER, WATER PIPE(33) SEAL LOWER, PIPE WATER(34) STOPPER, CAM ROD BUSHING(35) BOLT



Parts List
2004 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A2 :: DRIVE SYSTEM & WATER PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT S 3V1643061M 3V1-64306-1 FOR TRANSOM S $161.37 1
(1) DRIVE SHAFT L 3V1643071M 3V1-64307-1 FOR TRANSOM L $108.75 1
(1) DRIVE SHAFT UL 3V1643091M 3V1-64309-1 FOR TRANSOM UL $160.40 1
(1-1) BALL BEARING 6301 960106301M 9601-0-6301 $13.25 1
(2) BEVEL GEAR A 3B2640100M 3B2-64010-0 $84.70 1
(3) BEVEL GEAR B 3B2640200M 3B2-64020-0 $37.45 1
(4) BEVEL GEAR C 3B2640300M 3B2-64030-0 $83.68 1
(5) WASHER 15.2-19-1.9 369640320M 369-64032-0 $3.27 1
(6) SHIM 21-28-.01 369640140M 369-64014-0 $1.98 0
(6) SHIM 21-28-0.15 369640150M 369-64015-0 $1.98 0
(7) PROPELLER THRUST HOLDER 3B2642301M 3B2-64230-1 # 044907XC~ $19.38 1
(8) PROPELLER (5) 3 X 8 X 5 3B2W645125 3B2W64512-5 $72.45 1
(8) PROPELLER (6) 3 X 8.3 X 6 3B2W645126 3B2W64512-6 $72.45 1
(8) PROPELLER (6.5) 3 X 8.5 X 6.5 3B2W645130 3B2W64513-0 $82.92 1
(8) PROPELLER (7) 3 X 8.9 X 7.0 3B2W645140 3B2W645140 $82.92 1
(8) PROPELLER (7.5) 3 X 8.5 X 7.5 3B2W645150 3B2W64515-0 9.8A2 : L UL / 8 A2 : S. L. UL $82.92 1
(8) PROPELLER (8.5) 3 X 8.9 X 8.5 3B2W645171 3B2W64517-1 9.8A2 : S $82.92 1 Sold Out View More Details
(8) PROPELLER (9.5) 3 X 8.9 X 9.5 3B2W645191 3B2W64519-1 OLD PART NO. 3B2-64518-0 $0.00 1 Sold Out View More Details
(8) PROPELLER (8.7d X 7p) 4-BLADE HIGH THRUST 3B2B645120 3B2B64512-0 $99.27 1
(8) PROPELLER (8.7d X 5p) 4-BLADE HIGH THRUST 3B2W645110 3B2W64511-0 $99.27 1
(9) WASHER 10.5-28-2 369641240M 369-64124-0 $4.20 1
(10) PROPELLER NUT 369641210M 369-64121-0 $8.80 1
(11) SPLIT PIN 3-18 9515030318M 951503-0318 $0.95 1
(12) PROPELLER SHAFT 3V1642110M 3V1-64211-0 $121.16 1 Sold Out View More Details
(13) CLUTCH 3B2642150M 3B2-64215-0 $35.25 1
(14) SPRING PIN 3.5-28 301642170M 301-64217-0 $1.41 1
(15) CLUTCH SPRING 3V1642210M 3V1-64221-0 $1.79 1
(16) CLUTCH PUSH ROD 369642230M 369-64223-0 $4.83 1
(17) CLUTCH SPRING RETAINER 3B2642220M 3B2-64222-0 $2.31 1
(18) WATER PUMP IMPELLER 3B2650211M 3B2-65021-1 $9.72 1
(19) PUMP IMPELLER KEY 3B2650220M 3B2-65022-0 $1.45 1
(20) PUMP CASE (UPPER) 3B2650160M 3B2-65016-0 $26.40 1
(21) PUMP CASE LINER 3B2650110M 3B2-65011-0 $12.14 1
(22) WATER PUMP GUIDE PLATE 3B2650250M 3B2-65025-0 $2.88 1
(23) GASKET PUMP CASE 3B2650180M 3B2-65018-0 $4.67 1
(24) GASKET GUIDE PLATE 3B2650290M 3B2-65029-0 $2.07 1
(25) BOLT 9161130650M 916113-0650 $2.42 4
(26) WASHER 9401130600M 940113-0600 $0.83 4
(27) PUMP CASE (LOWER) 3V1650170M 3V1-65017-0 # 017458XD~ $22.08 1
(28) PUMP CASE GASKET (LOWER) 3B2650200M 3B2-65020-0 $5.29 1
(29) OIL SEAL 12-24-8 309601110M 309-60111-0 $6.90 1
(30) GAP LINER 28-36.8 3B2640230M 3B2-64023-0 T=0.1 0.15 0.3 $0.00 0 Sold Out View More Details
(31) WATER PIPE S 3V1651000M 3V1-65100-0 FOR TRANSOM S $10.75 1
(31) WATER PIPE L 3V1651100M 3V1-65110-0 FOR TRANSOM L $14.33 1 Sold Out View More Details
(31) WATER PIPE UL 3V1651200M 3V1-65120-0 FOR TRANSOM UL $23.97 1
(32) WATER PIPE SEAL (UPPER) 3V1652060M 3V1-65206-0 $1.57 1
(33) WATER PIPE SEAL (LOWER) 331650140M 331-65014-0 $1.61 1
(34) STOPPER 369660330M 369-66033-0 $2.07 1
(35) BOLT 9101135625M 910113-5625 $1.47 1
